– 10 –
SPEC

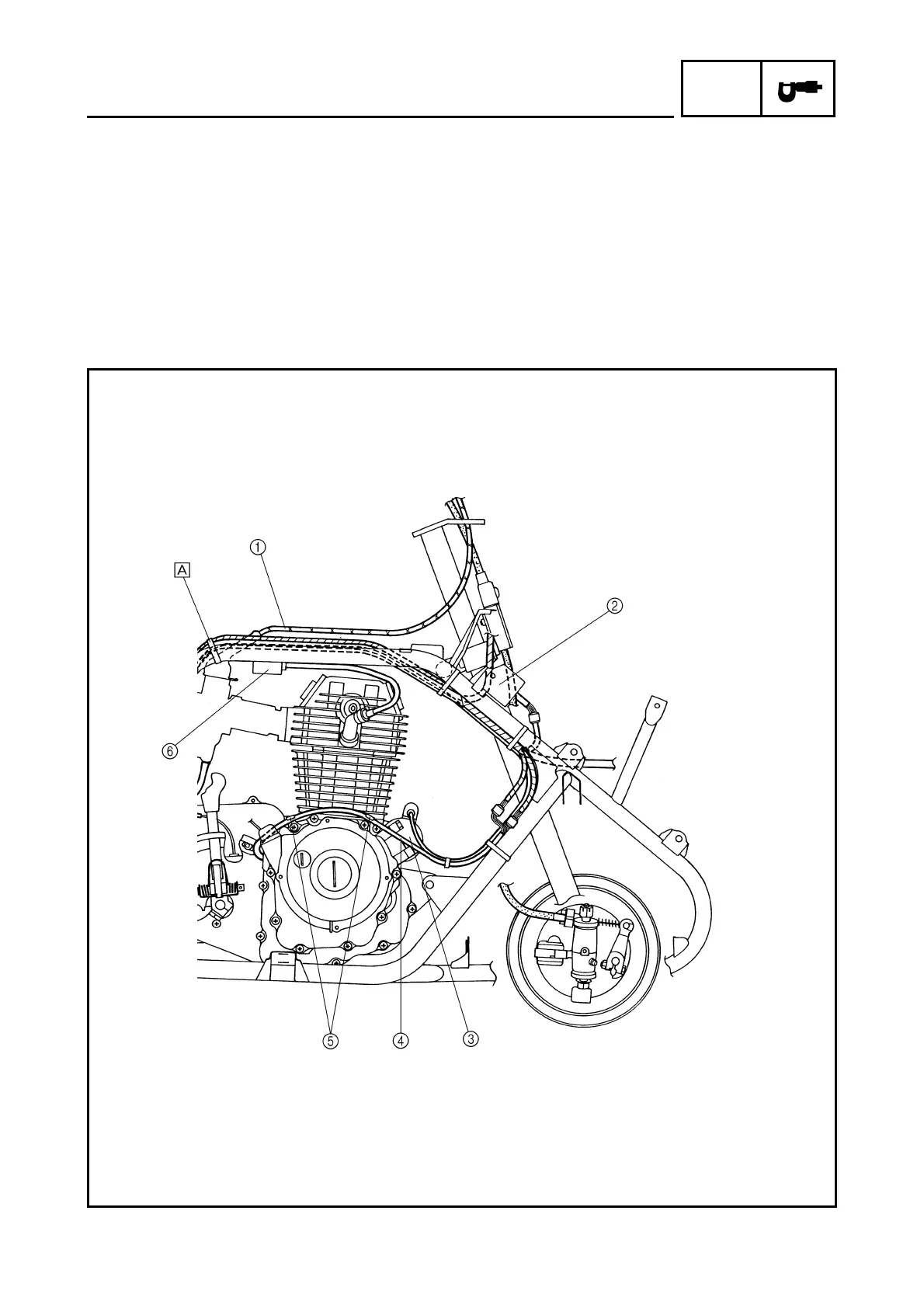

1 Throttle cable
2 Rectifier/regulator
3 Starting motor
4 CDI magneto lead
5 Clamp
6 Ignition coil
È Fasten the wire harness, starting motor lead and
transmission case breather hose to the frame with
a plastic band.
CABLE ROUTING
