Yamaha 2002 YFA1 - Page 19

– 11 –
SPEC

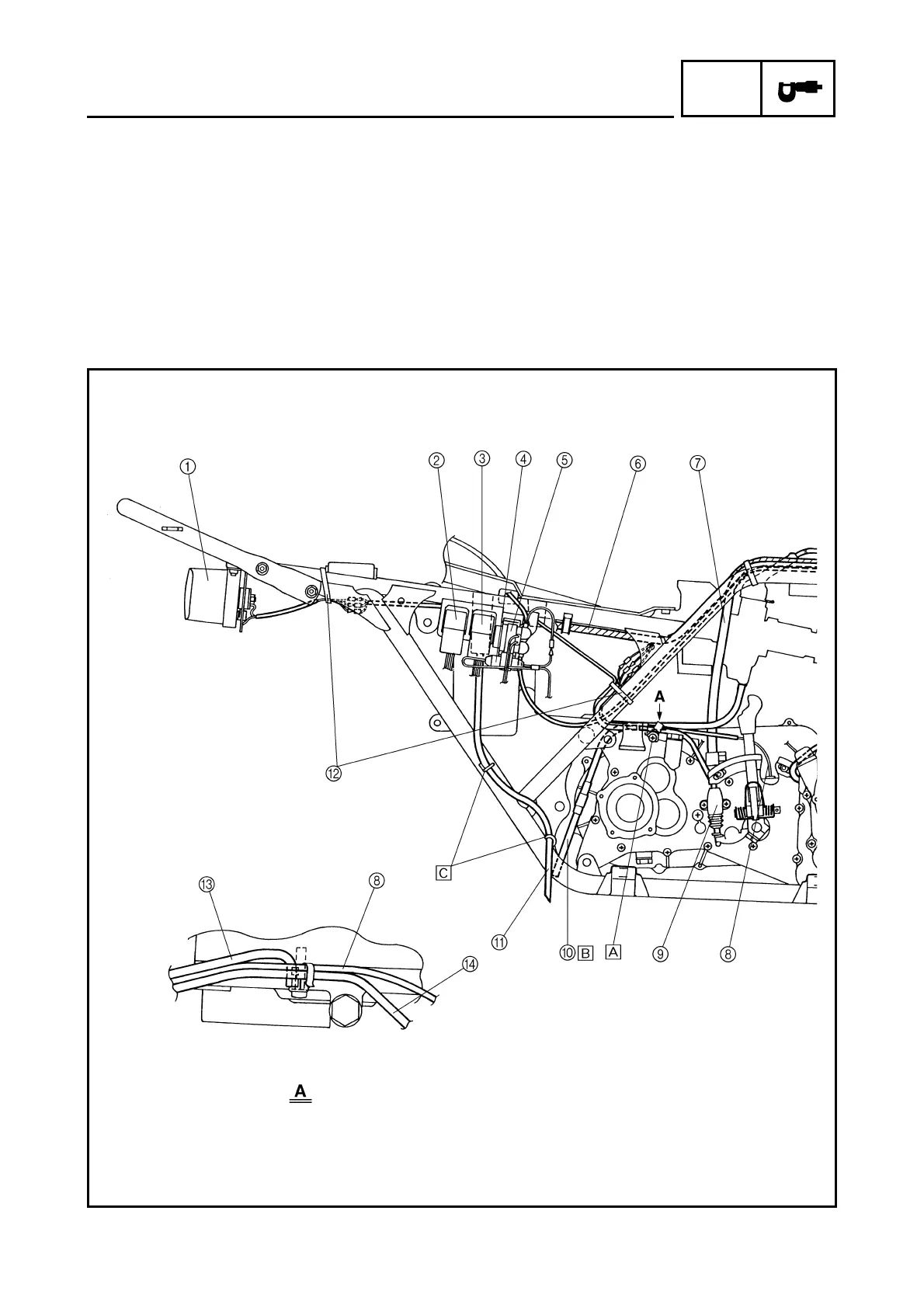

1 Taillight
2 Reverse relay
3 Starting circuit cut-off relay
4 Fuse holder
5 Starter relay
6 Wire harness
7 Breather hose (transmission case)
8 Neutral switch lead
9 Select lever switch
0 Overflow hose
A Battery breather hose
B Band
C Battery negative lead
D Reverse switch lead
È Hold the clamp and ground lead to the crank-
case with a screw.
É Pass the overflow hose between the engine and
swingarm.
Ê Pass the battery breather hose through the
guides.
CABLE ROUTING
