SPEC
1 Inlet hose
2 Outlet hose
3 Fuel hose
4 Breather hose (crankcase)
5 Overflow hose
6 Guide
7 Rear brake cable
8 Front brake cable (left)
9 Front brake cable (right)
0 CDI unit
A Band
È Pass the breather hose through the hole of han-
dlebar cover and then between the steering col-
umn and fuel tank.
É Pass the overflow hose left side of the engine
stay.
Ê Pass the brake cable inside the swingarm.

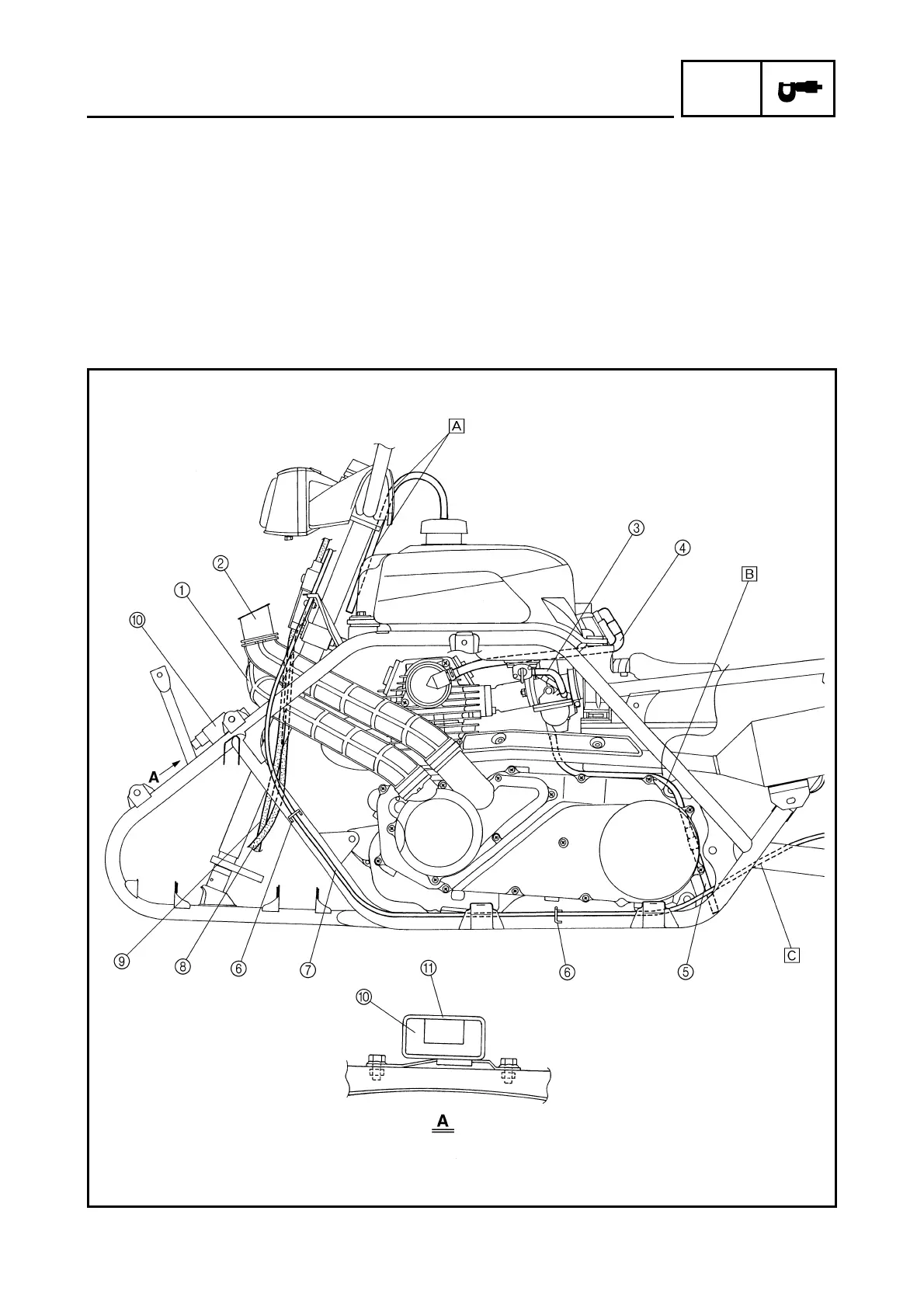

CABLE ROUTING
