7-20
E
BRKT
TILT ROD
SERVICE POINTS
WARNING
●
To prevent the hydraulic fluid from spurt-
ing out due to internal pressure, the out-
board should be kept fully tilted up (the
tilt rod at full length).
●
After removing the tilt motor or oil reser-
voir, do not push the tilt rod down. This
may cause hydraulic fluid to spurt out
from the port.
CAUTION:
Do not wipe hydraulic system components
with rags, paper, tissues, or the like, as
fibers from such material will cause mal-
functions if they enter the system.

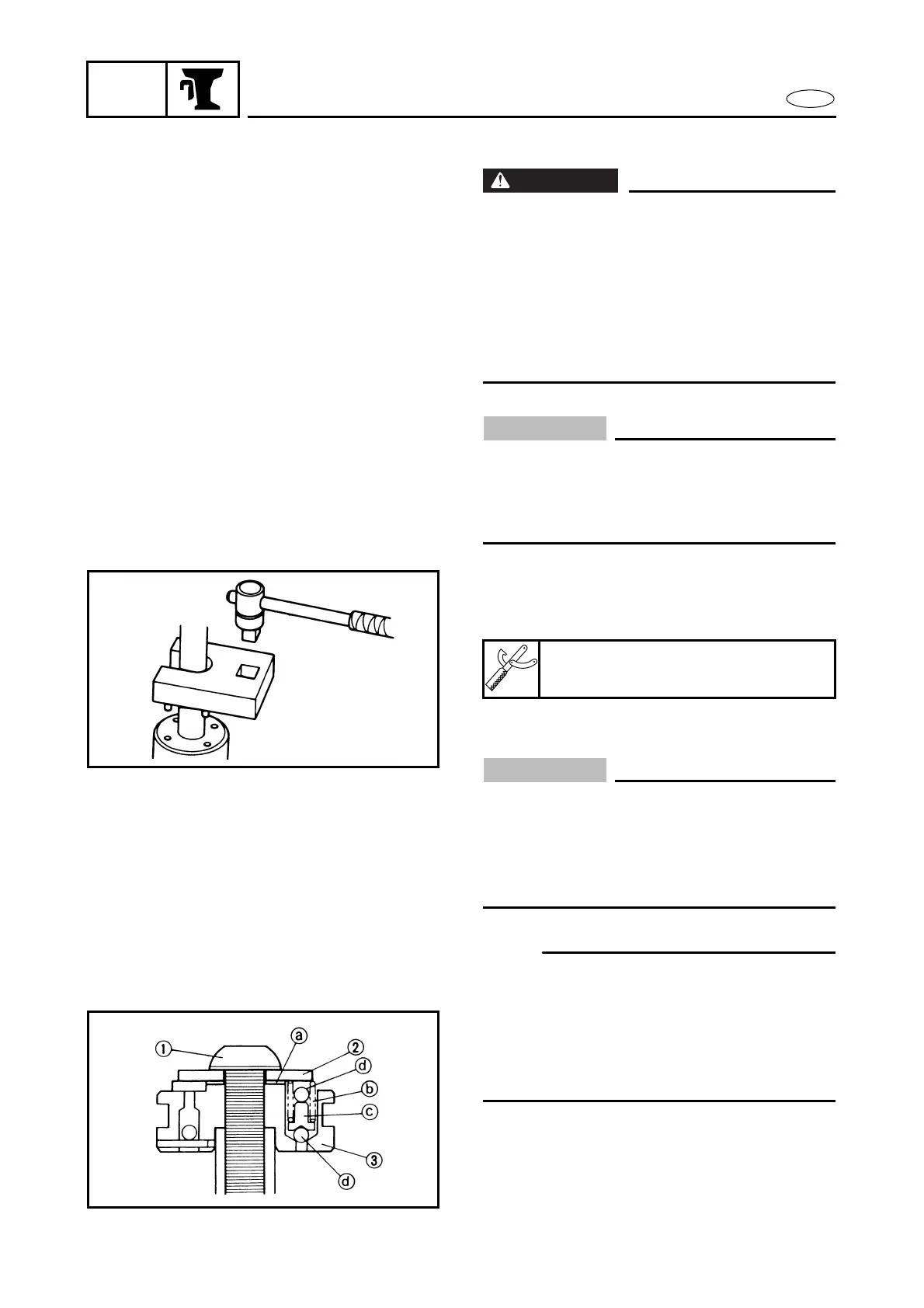

Tilt rod removal
1. Loosen:
●
Tilt cylinder end screw
Tilt piston removal
CAUTION:
● Only remove the tilt piston assy. when
replacing the oil seal.
● Remove the tilt piston assy. and washer
as a set; however, do not disassembly
them.
NOTE:
Place the adjusting shims a (if equipped),
springs b, pins c and balls d between the
tilt piston assy. 3 and washer 2. If the
adjusting shims, springs, pins and balls are
not installed in their original positions the
PTT unit will not operate properly.
1. Remove:
● Bolt 1
● Washer 2
● Tilt piston assy. 3
Tilt cylinder wrench:
YB-06175-2B/90890-06544
