MAINTENANCE SPECIFICATIONS

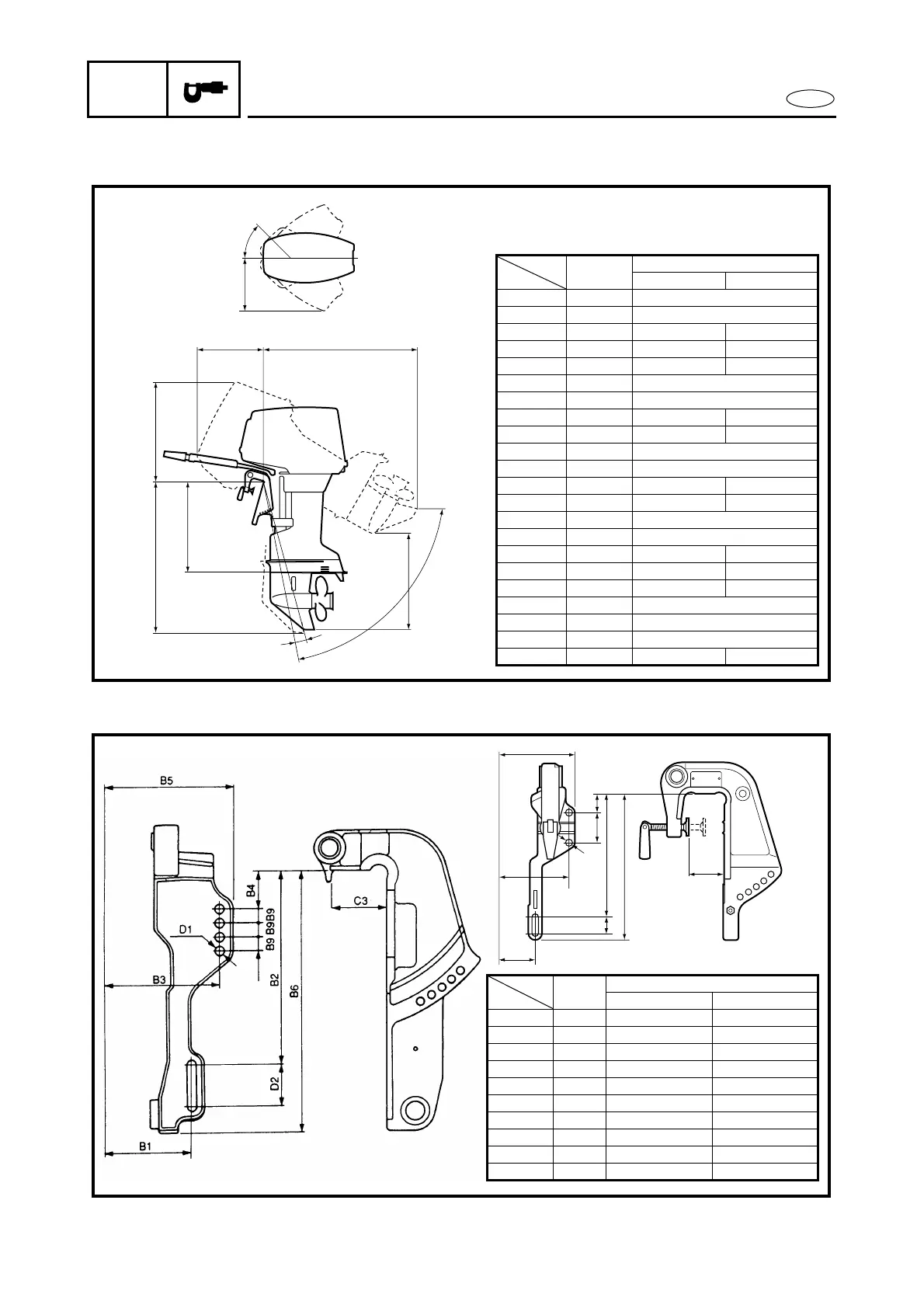

DIMENSIONS
Outboard dimensions
Bracket dimensions
Unit
Model(s)
Manual handle Remote control
L6 (S) mm (in) 752 (29.6)
(L) mm (in) 859 (33.8)
(Y) mm (in) 895 (35.2) —
(X) mm (in) 953 (37.5) —
L7 mm (in) 404 (15.9) 375 (14.8)
H1 (S) mm (in) 712 (28.0)
(L) mm (in) 833 (32.8)
(Y) mm (in) 872 (34.3) —
(X) mm (in) 940 (37.0) —
H4 (S) mm (in) 424 (16.7)
(L) mm (in) 545 (21.5)
(Y) mm (in) 584 (23.0) —
(X) mm (in) 652 (25.7) —
H6 (S) mm (in) 584 (23.0)
(L) mm (in) 648 (25.5)
(Y) mm (in) 668 (26.3) —
(X) mm (in) 705 (27.8) —
H9 mm (in) 657 (25.9) 647 (25.5)
W5 mm (in) 310 (12.2)
A1 Degree 40 (1.57)
A2 Degree 70 (2.76)
A3 Degree — 4 (0.16)
A1
W5
L7
H9H1
H4
H6
A2
L6
A3
Unit
Model(s)
Manual tilt PTT
B1 mm (in) 63 (2.5) 126 (5.0)
B2 mm (in) 208 (8.2) 254 (10.0)
B3 mm (in) 122 (4.8) 163.5 (6.4)
B4 mm (in) 32 (1.3) 50 (2.0)
B5 mm (in) 132 (5.2) 180 (7.1)
B6 mm (in) 245 (9.6) 338 (13.3)
B9 mm (in) 25 (1.0) 18.5 (0.73)
D1 mm (in) 10.5 (0.41) 13 (0.52)
D2 mm (in) 26 (1.0) 55.5 (2.2)
C3 mm (in) 30 ~ 66 (1.2 ~ 2.6) 69 (2.7)
B5
B4
B9
B6
B2
C3
D1
D2
B3
B1
