7-32

BRKT

PTT MOTOR

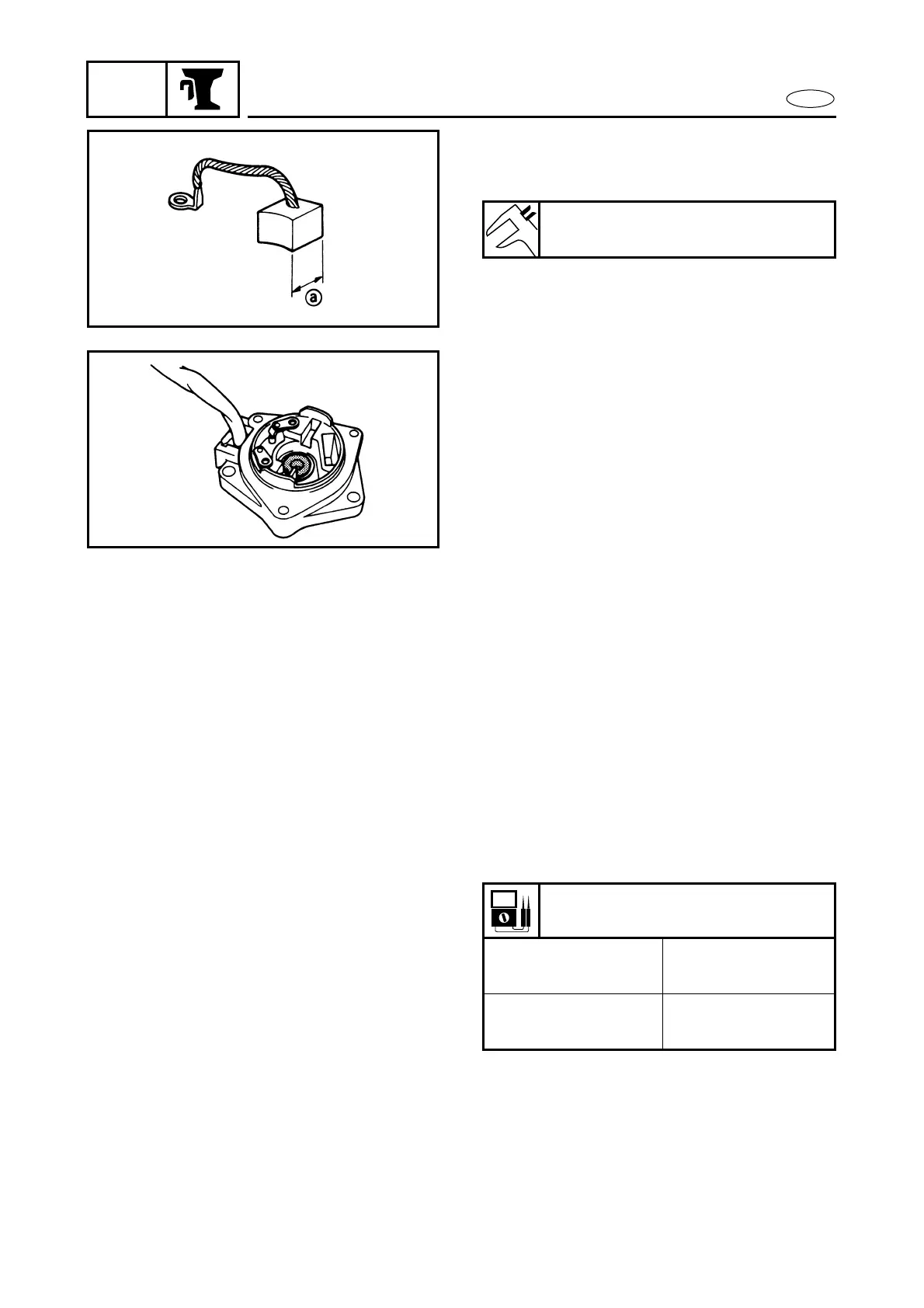

5. Measure:

● Brush length a

Out of specification → Replace.

Brush length limit:

3 mm (0.12 in)

6. Inspect:

● PTT motor base

Cracks/damage → Replace.

7. Inspect:

● Stator bushing

● PTT motor base bushing

Cracks/damage → Replace.

8. Inspect:

● PTT motor base oil seal

Damage/wear → Replace.

PTT motor assembly

1. Check:

● PTT motor operation

Incorrect operation → Repair.

PTT motor operation

Blue (+), Green (–)

Motor turns

clockwise

Green (+), Blue (–)

Motor turns

counterclockwise
