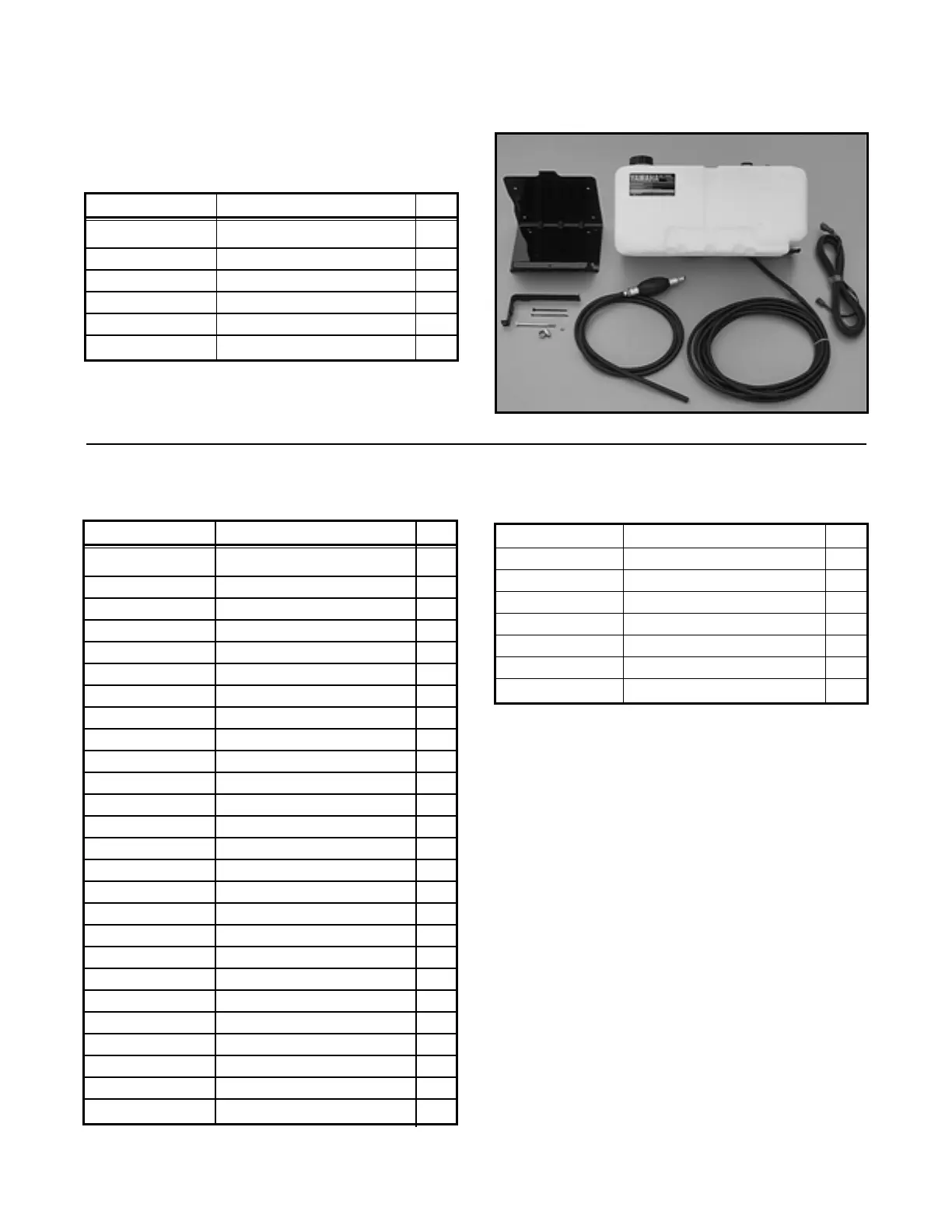

Outboard Rigging Guide - 2001 Rigging Kits
5.0 Gallon Oil Tank (6YR-W0035-C0-00)
2-Stroke Oil Injected Engines
TILLER HANDLE KITS
Tiller Handle Kit for 40/C40/50/C50 (63D-W0086-Z0-4D)
Part Number Part Name Qty.
61A-21708-10-00 Oil Tank Sub Ass’y1
61A-13437-40-00 Mark, Caution 1
90465-13M11-00 Clamp 1
6E5-2170A-01-00 Bracket, Sub. Complete 1
6Y2-24307-40-00 Fuel Pipe Complete 1
90450-10M07-00 Hose Clamp Ass’y1
Part Number Part Name Qty.
Tiller Kit Handle Ass’y1
Tiller Handle Install. Manual 1
63D-82586-00-00 Wire Harness Extension 1
6H5-83553-11-00 Read Wire 1
90465-13M36-00 Clamp 1
688-83383-11-00 Buzzer 1
6H5-83386-00-00 Buzzer Stay 1
6H5-42724-00-00 Grommet 1
688-82540-11-00 Neutral Switch Ass’y1
63D-82554-00-00 Stay, Neutral Switch Ass’y1
663-82555-01-00 Damper, Main Switch 1
63D-42546-00-00 Nut 2
63D-42541-00-00 Pipe 2
90201-08M01-00 Plate Washer 2
63D-42508-00-00 Steering Friction Ass’y1
• 63D-42527-00-00 • Plate, Friction 3 1
• 63D-42526-00-00 • Plate, Friction 2 1
• 63D-42528-00-00 • Piece, Friction 2
• 63D-42562-00-00 • Shaft, Steering Lock 1
• 63D-42561-00-00 • Knob, Steering Lock 1
• 682-43318-01-00 • Cover 1
• 90185-10M01-00 • Nut, Lock 1
97595-08550-00 Bolt 2
97595-06416-00 Bolt 2
63D-82361-00-00 Clamp, Cord 1
90161-06M03-00 Screw 1
97595-06535-00 Bolt 1
90387-06M26-00 Collar 1
90185-10051-00 Nylon Lock Nut 2
97013-05010-00 Bolt 2
92990-05100-00 Spring Washer 2
95380-05600-00 Nut 2
63D-83728-00-00 Connector Ass’y1
90465-15M11-00 Clamp 3
F25E, F25T Tiller Handle -
Available Spring 2001 - (65W-W0086-Z0-4D)
To Next Page
