13
SPEAKER SYSTEM/SUBWOOFER
A10/A12/A12M/A15/A15W
[6]
Speaker(Woofer)
Speaker(Tweeter)
[6]
[12A]

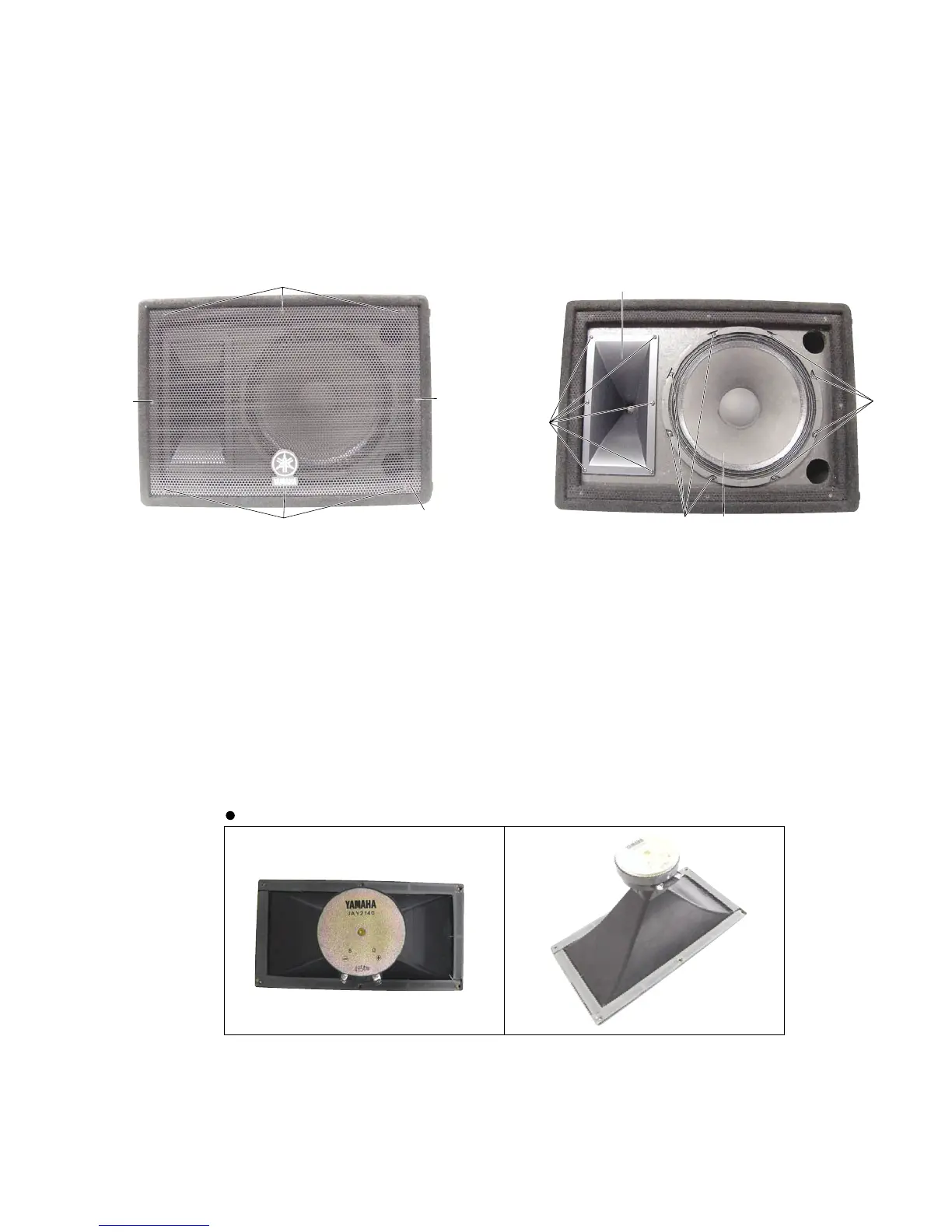

Photo.4
Photo.5
4. Speaker(Woofer)
(Time required: About 3 minutes)
4-1 Remove the eight (8) screws marked [23]. The metal
grille can then be removed. (Photo.4)
[6]: +Bind Head Tapping Screw D5.0/L20 Black (VB857600)
[12]: +Bind Head Tapping Screw D4.0/L25 Black (AAX59670)
Speaker(Tweeter)
Photo.6 Photo.7
5. Speaker(Tweeter)
(Time required: About 3 minutes)
5-1 Remove the metal grille. (See procedure 4-1)
[23]: +Cup Screw D4.0/L16 Black (WA764400)
[23]
[23]
[23]
[23]
Metal grille
4-2 Remove the eight (8) screws marked [6]. The
speaker(woofer) can then be removed. (Photo.5)
5-2 Remove the the six (6) screws marked [12A].
The speaker(tweeter) can then be removed.
(Photo.5, 6, 7)
