Yamaha AG100FA - Speedometer and Handlebar Switches

INSTRUMENT AND CONTROL FUNCTIONS
4-2
1
2
3
4
5
6
7
8
9
EAUT1821

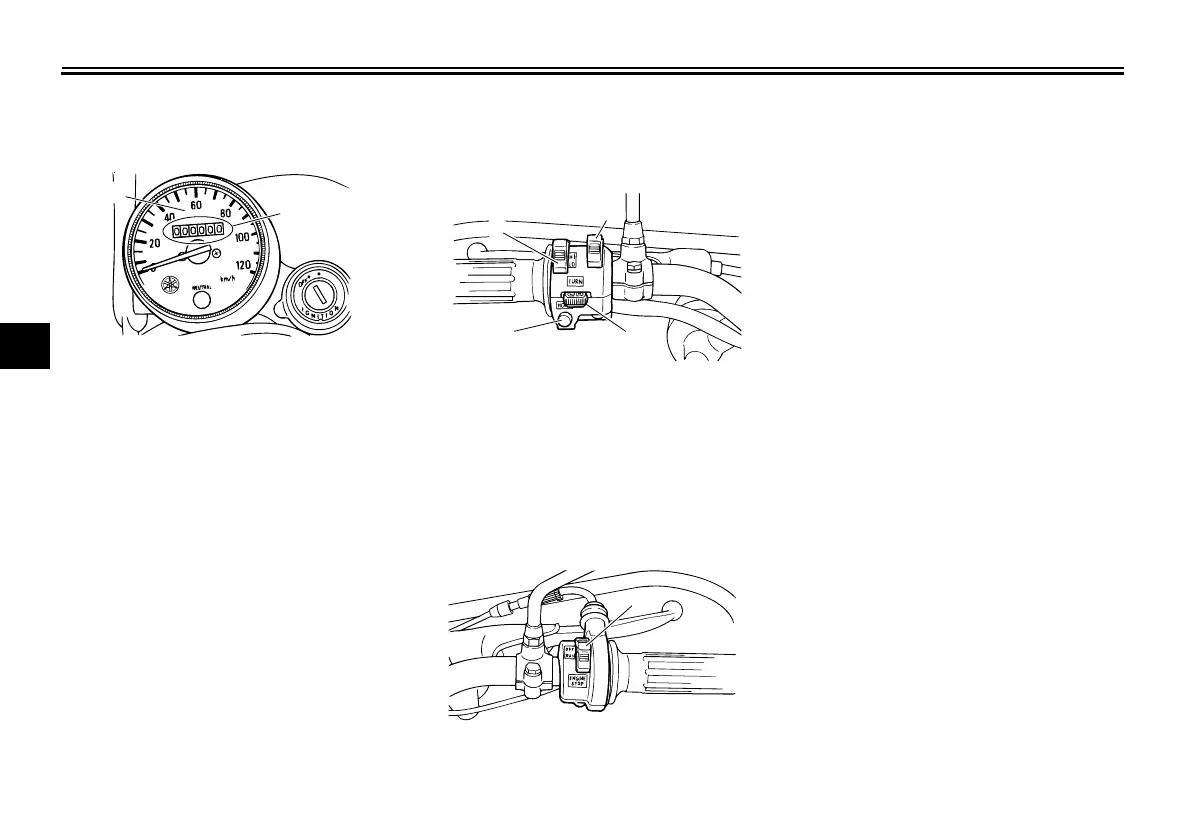

Speedometer unit
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
EAU12348
Handlebar switches
Left
Right
EAU12410
Dimmer switch “LIGHTS”
Set the switch to “HI” for the high beam
and to “LO” for the low beam.
EAU48830
Turn signal switch “L/R”
To signal a right-hand turn, push this
switch to “R”. To signal a left-hand turn,
push this switch to “L”. To cancel the
turn signal lights, push the switch back
to the center position.
EAU12510
Horn switch “HORN”
Press this switch to sound the horn.
EAU48840
Light switch “LIGHTS”
Set the light switch to “ON” to turn on
the headlight, taillight and meter light-
ing.
EAU12650
Engine stop switch “ENGINE STOP”
Set this switch to “RUN” before starting
the engine. Set this switch to “OFF” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
1. Speedometer
2. Odometer
2
1
1. Dimmer switch “LIGHTS”
2. Light switch “LIGHTS”
3. Turn signal switch “L/R”
4. Horn switch “HORN”
1. Engine stop switch “ENGINE STOP”
1
2
3
4
1
