PERIODIC MAINTENANCE AND ADJUSTMENT
7-11
2
3
4
5
6
7
8
9

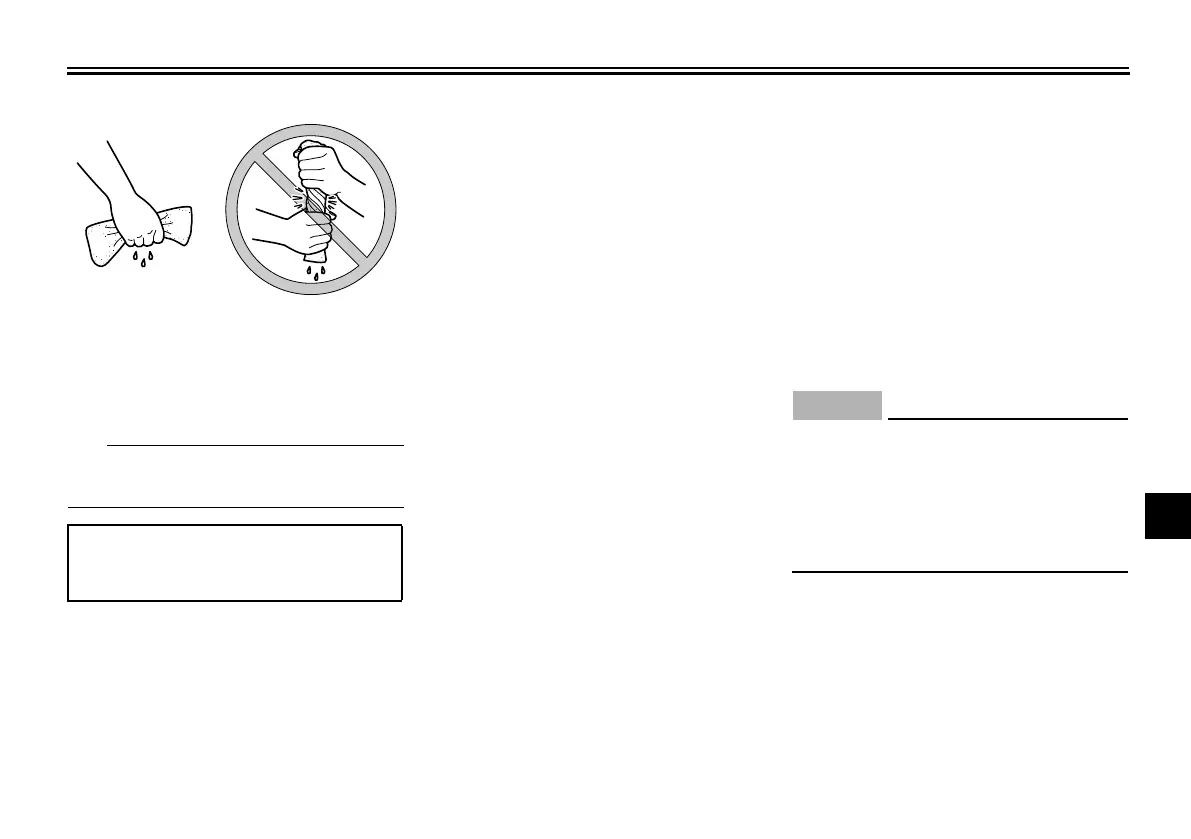

4. Apply oil of the recommended type
to the entire surface of the air filter
element, and then squeeze the ex-
cess oil out.
The air filter element should be wet but
not dripping.
5. Insert the air filter element into the
air filter case. NOTICE: Make sure
that the air filter element is prop-
erly seated in the air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10481]
6. Install the air filter case cover by in-
stalling the screws.
7. Install the panel.
EAU21280
Adjusting the carburetor
The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
