PERIODIC MAINTENANCE AND ADJUSTMENT
7-7
2
3
4
5
6
7
8
9
EAU18771
Removing and installing
panels
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU49011

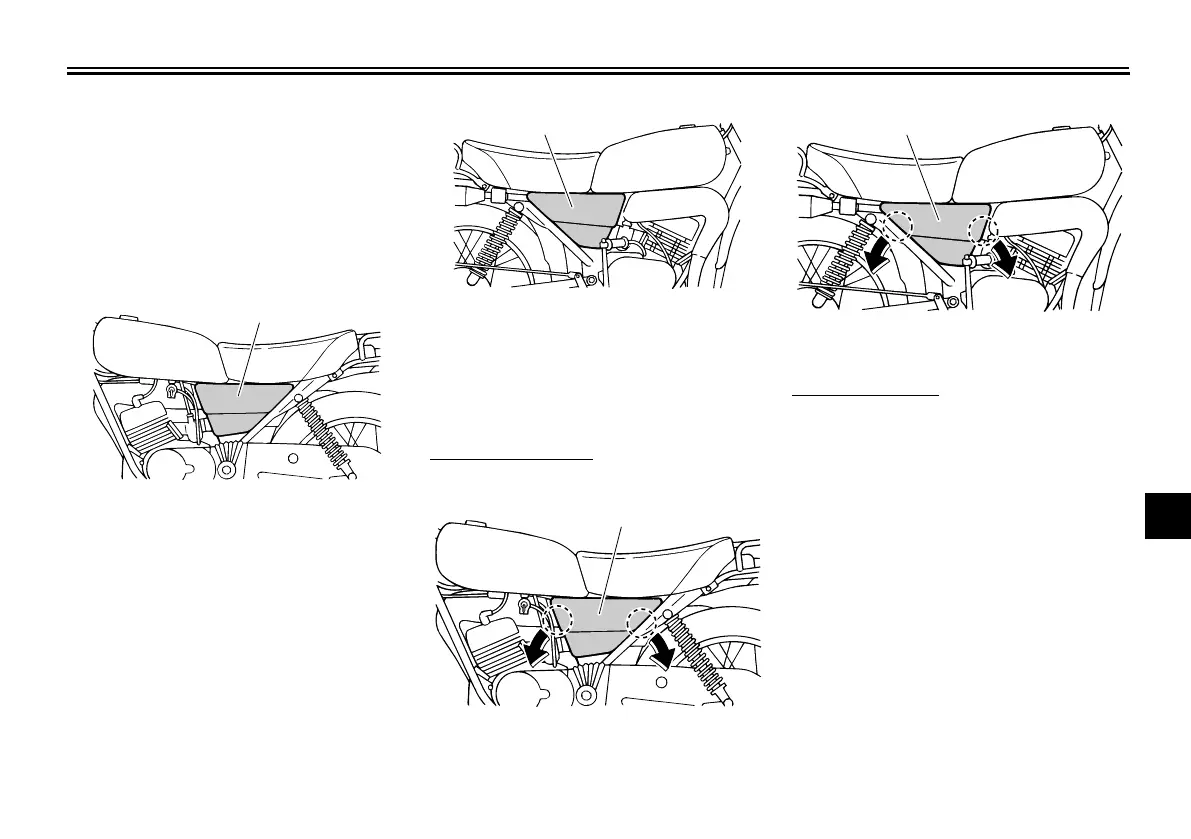

Panels A and B
To remove a panel
Pull the panel off as shown.
To install a panel
Place the panel in the original position.
1. Panel A
1. Panel B
1. Panel A
1
1
1. Panel B
1
