INSTRUMENT AND CONTROL FUNCTIONS
4-7
2
3
4
5
6
7
8
9
ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES
This indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!
EAU13640
Starter (choke) knob
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).

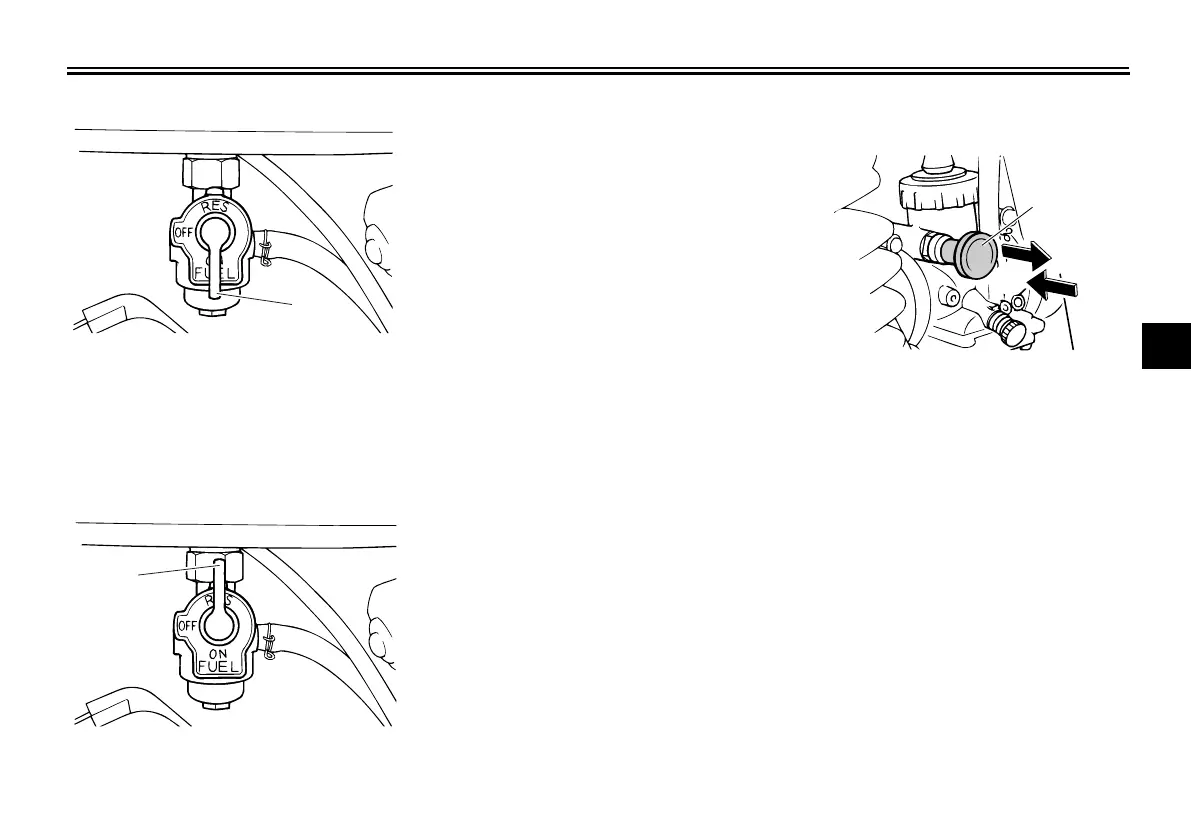

1. Lever positioned over “ON”
1. Lever positioned over “RES”
1. Starter (choke) knob
