CAUTION:
ECB00670
Make sure the headlight bulb holder cover is
securely fitted over the bulb holder and seated
properly.
9. Place the headlight unit in the original posi-
tion, and then install the screws.
10. Install the headlight beam adjusting screw,
the washer, the spring and the nut.
11. Connect the main switch leads.
12. Install the panel by installing the screws.
13. Adjust the headlight beam.
EBU25550
Adjusting a headlight beam
CAUTION:
ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.

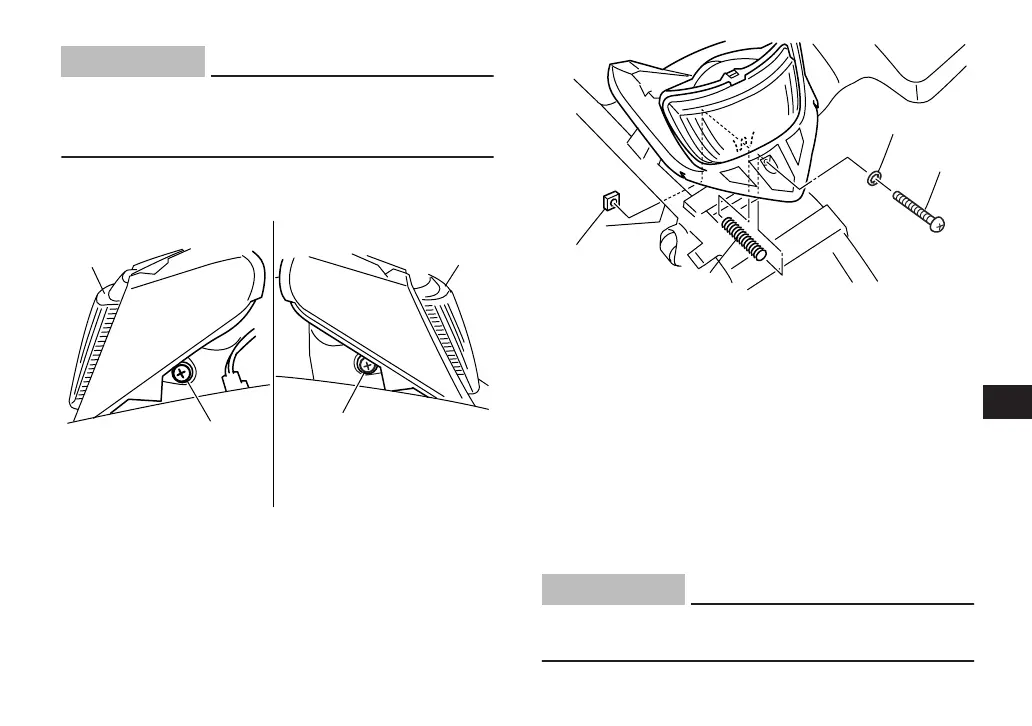

1. Headlight unit
2. Screw
1
2
1
2
1. Headlight beam adjusting screw
2. Washer
3. Spring
4. Nut
1
2
3
4
