Indicator light
EBU17881
2-stroke engine oil level warning light “”
This warning light comes on when the oil level in
the 2-stroke engine oil tank is low during operation.
If the warning light comes on during operation,
stop the engine when it is safe to do so, and fill the
oil tank with Yamalube 2 or equivalent 2-stroke en-
gine oil. The warning light should go off after the oil
tank has been refilled.
The electrical circuit of the warning light can be
checked by starting the engine. (See page 6-1.) If
the warning light does not come on for a few sec-
onds, then go off, have a Yamaha dealer check the
electrical circuit.
CAUTION:
ECB00020
Always make sure there is enough engine oil
before starting the engine.
EBU18061
Handlebar switches

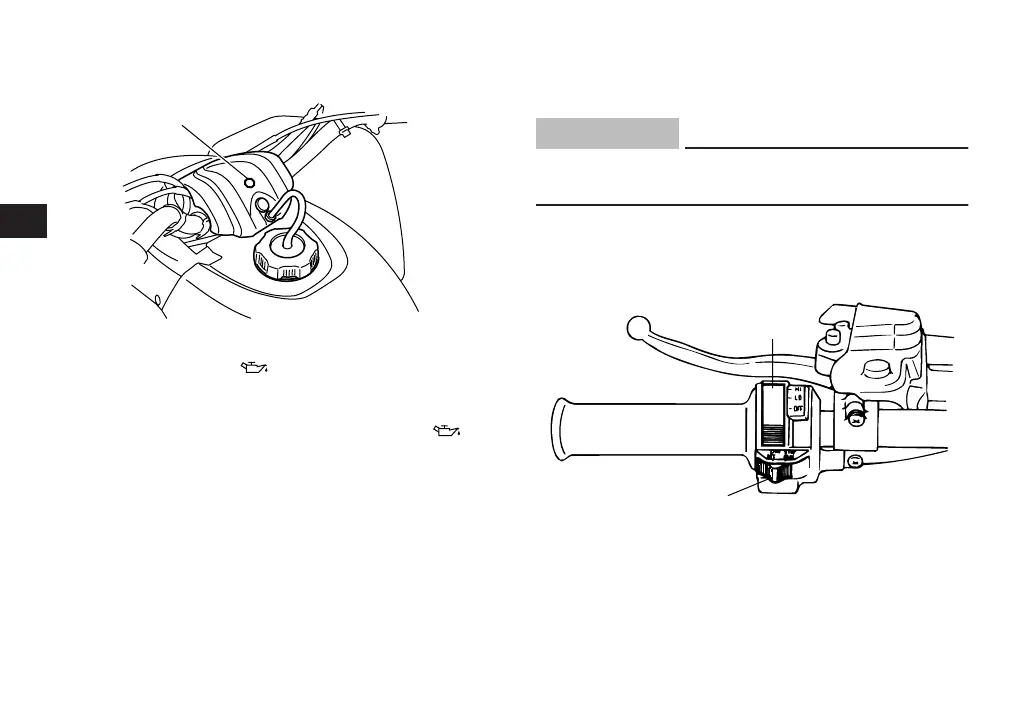

1. Oil level warning light “ ”
1
1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
1
2
