EBU18500
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Squeeze
the clutch lever while pushing the button, then
push in the lock plate to apply the parking brake.
Squeeze the clutch lever to release the parking
brake.
NOTE:
When the parking brake is used, engine speed is
limited to 2300 r/min. Be sure the parking brake is
released before moving the throttle lever. Other-
wise, the engine will misfire, preventing normal op-
eration.

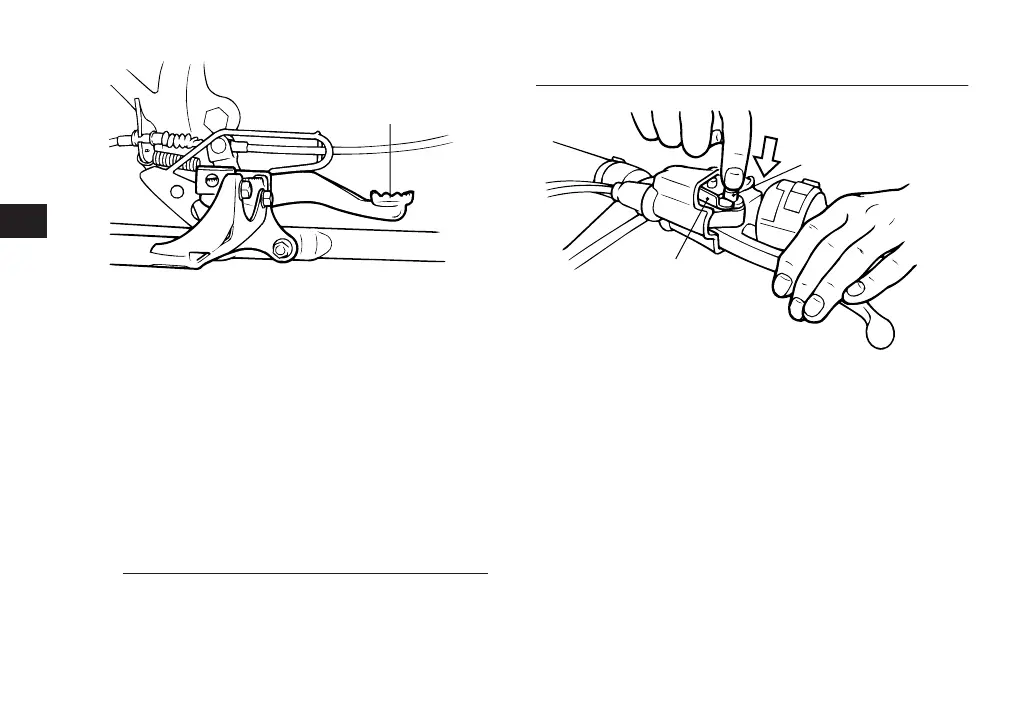

1. Brake pedal
1
1. Button
2. Parking brake lock plate
1
2
