Yamaha CD-1330 - Page 34

ABCDEFGH I J
1
2
3
4
5
6
7
34
CD-1330
CB101
IC802
FLGND ACFL2 LED_USB LED_STBY IR LED_POWER KEY1 FL_CS FL_CLK KEY3
FLGND ACFL1 +30 +5 +3.3 KEY0 KEY2 FL_DATA FL_RESET DGND
OPERATION (9)
(CB152)
USB
indicator
POWER
indicator

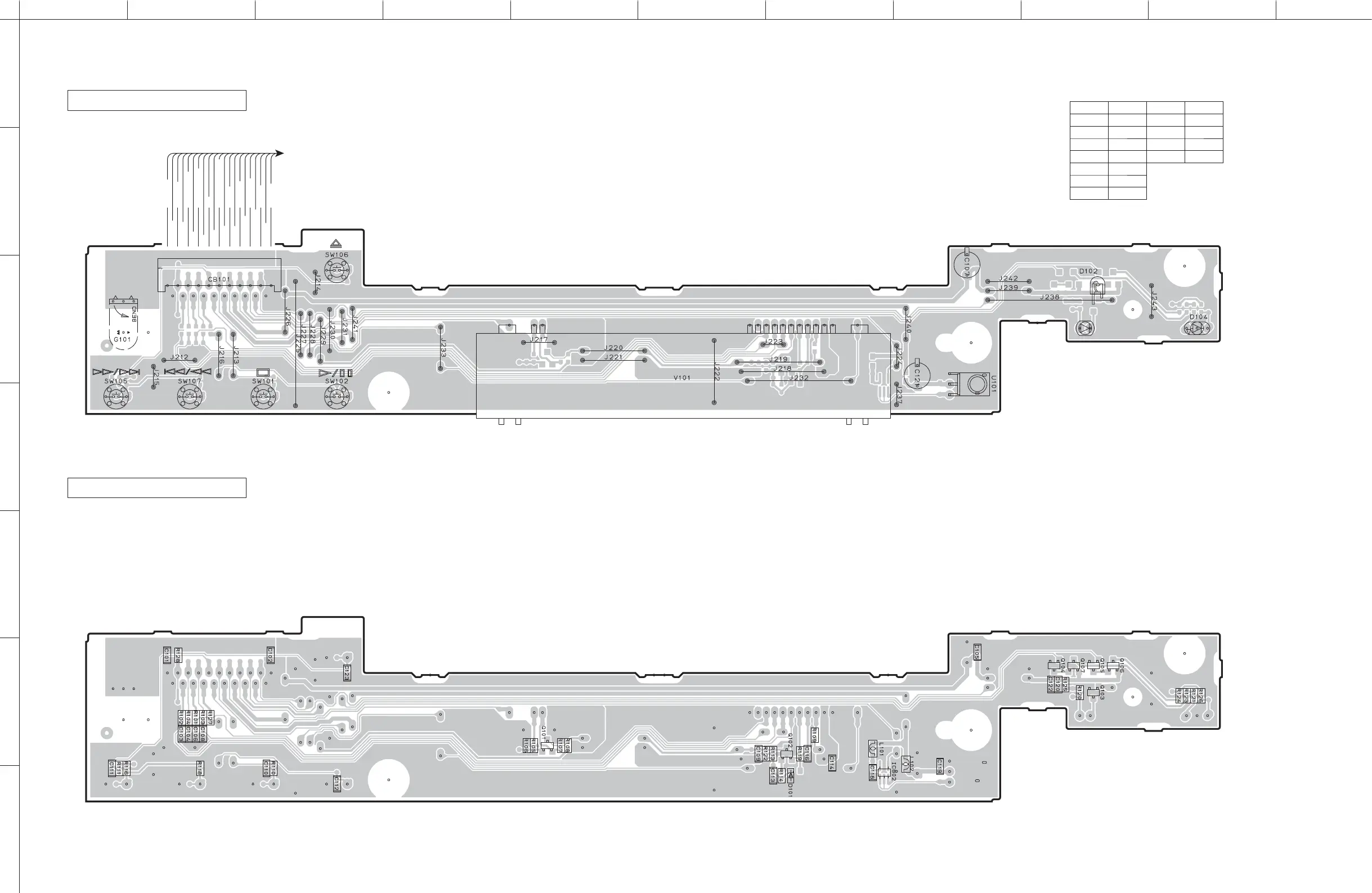

OPERATION (1) P.C.B. (Side A)
DGND
OPERATION (1) P.C.B. (Side B)
54
13
• Semiconductor Location
Ref no. Location
D101 G7
D102 I3
D104 J3
IC802 H7
Q101 E6
Q102 G6
Q103 I6
Ref no. Location
Q104 I6
Q105 I6
Q106 I6
Q107 I6
