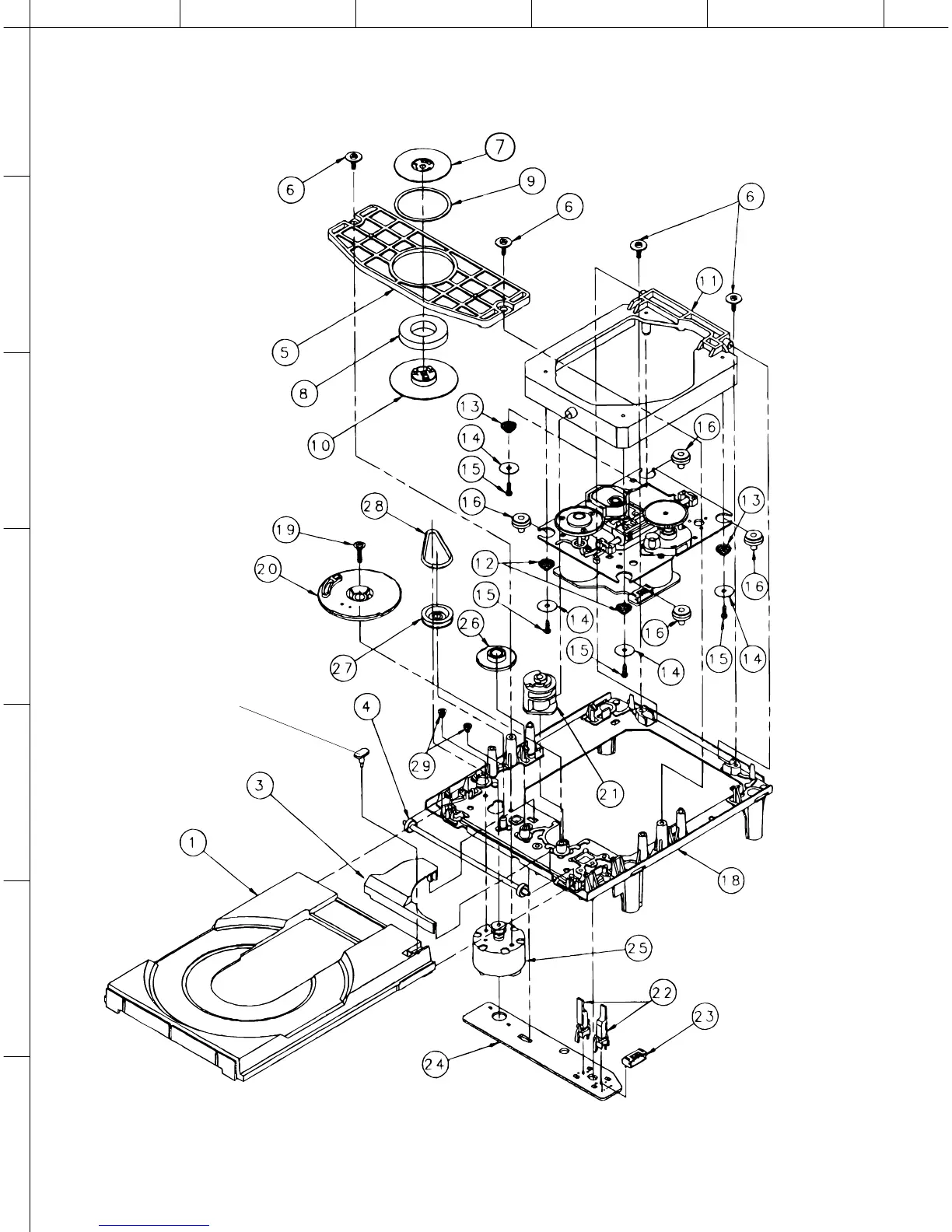

■ EXPLODED VIEW (CD Mechanism Unit)
34
ABCDE
1
2
3
4
5
6
7
CDX-E100
* The stopper is not supplied with the tray as a spare part.
When replacing the tray, keep the removed stopper and reuse it.
Should it be lost and a new one be necessary, order service part !8 Main Chassis (S) and remove the stopper
only from it and use it as a spare part.
Stopper
To Next Page
