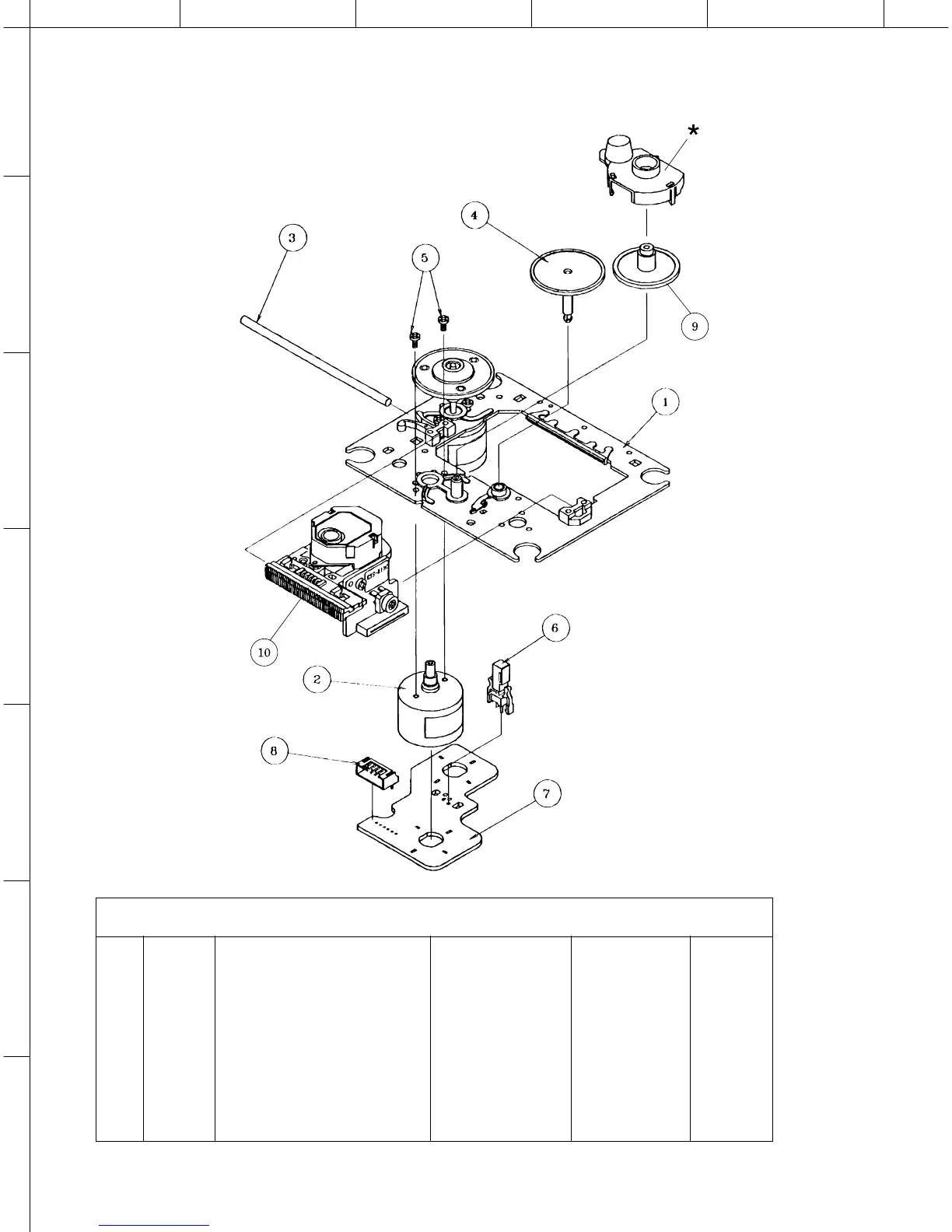

■ EXPLODED VIEW (Drive Unit)
36
CDX-E100
ABCDE
1
2
3
4
5
6
7
Ref.
No. PART NO. Description Remarks Markets
New Parts
*
Z * 1 NX635420 MOTOR CHASSIS ASS'Y (MB) X26258771
* 2 CX679710 MOTOR GEAR ASS'Y X26257691
* 3 AX623980 SLED SHAFT 262690801
* 4 CX679720 GEAR, A (S) 262690701
* 5 EA020036 PAN HEAD SCREW 2x3 ZMC2-Y 762125515
* 6 KX604660 LEAF SWITCH 157208511
* 7 NX613040 PWB, MOTOR MOTOR 6P 163967812
* 8 LX610120 CONNECTOR PIN 6P 156472211
* 9 CX680030 GEAR 262700301
* 10 NX636020 OPTICAL HEAD KSM213C
Note : The parts marked with an asterisk (
*
) are not available separately.
