CDX-E400
4
CDX-E400

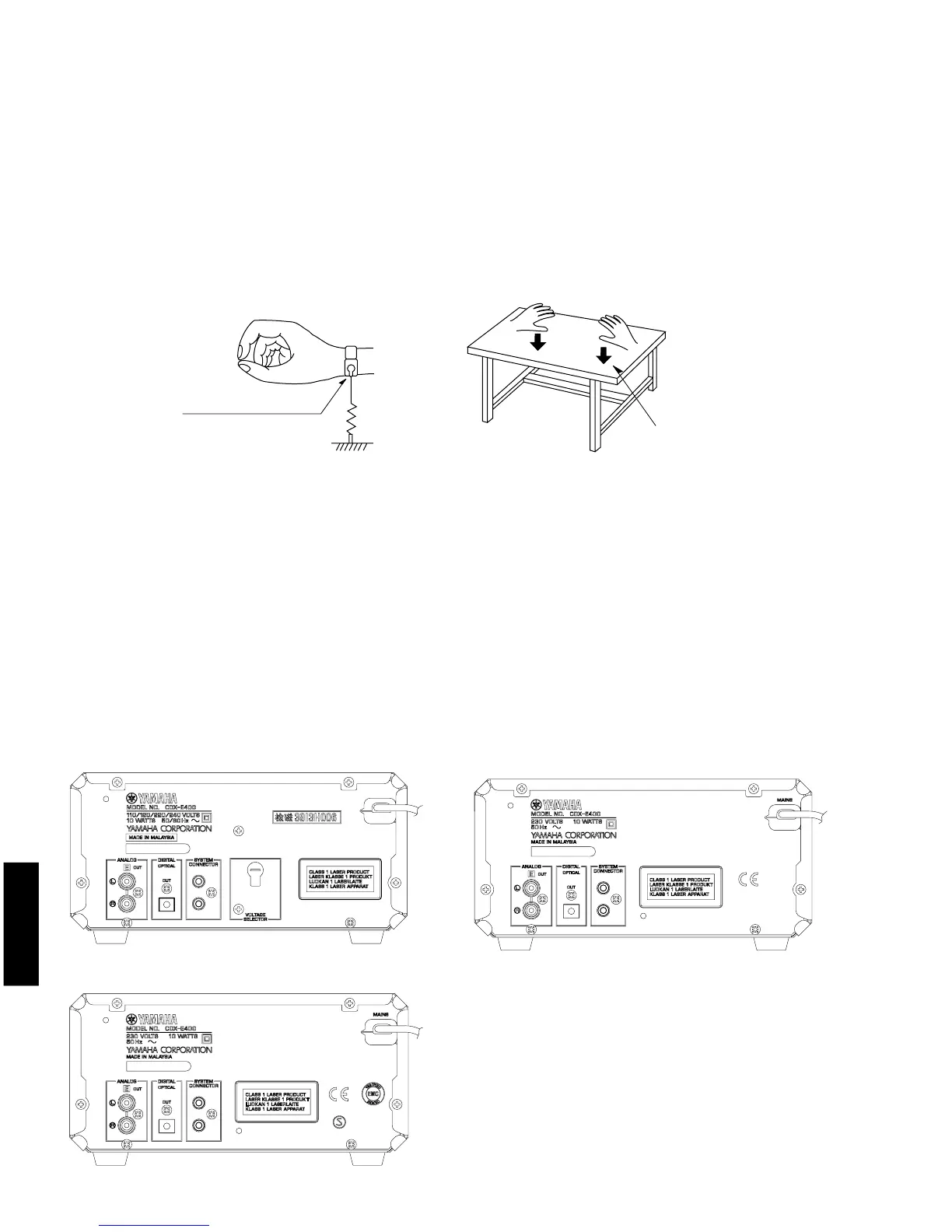

■ REAR PANELS
▼ R model
▼ G model
▼ B model
240V
SERIAL LABEL
SERIAL LABEL
■ PREVENTION OF ELECTRO STATIC DISCHARGE
The laser diode in the CD mechanism unit (optical pickup) may be damaged due to static electricity from clothes or
the human body. Use caution to prevent electrostatic damage when servicing or handling the laser diode.
1. Grounding for electrostatic damage prevention
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
2. Handling of the optical pickup
Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the
laser diode.
3. Handling Precautions for the CD mechanism Unit (Optical Pickup)
1. Handle the CD mechanism unit (optical pickup) gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.
1MΩ
Conductive material
(sheet) or steel sheet
Anti-static wrist strip
