■ DISASSEMBLY PROCEDURES (Remove parts in disassembly order as numbered.)
1. Removal of Top Cover
a. Remove 4 screws ( q
) and 4 screws ( w ) in Fig. 1.
b. Lift the Top Cover at the rear and move it rear-ward slantingly.
2. Removal of Front Panel
a. Remove a connector (CB102) in Fig. 2.
b. Remove 2 screws ( e ) and 2 screws
( r ) in Fig. 1.
c.
Remove 2 hooks and then pull the Front Panel forward.
3. Removal of CD Mechanism Unit
a. Remove a connector (CB1) in Fig. 2.
b. Remove W2 and W3 from the CD Mechanism in Fig. 2.
c. Remove 4 screws ( t ) in Fig. 1.
d. Remove the CD Mechanism Unit in Fig. 1.

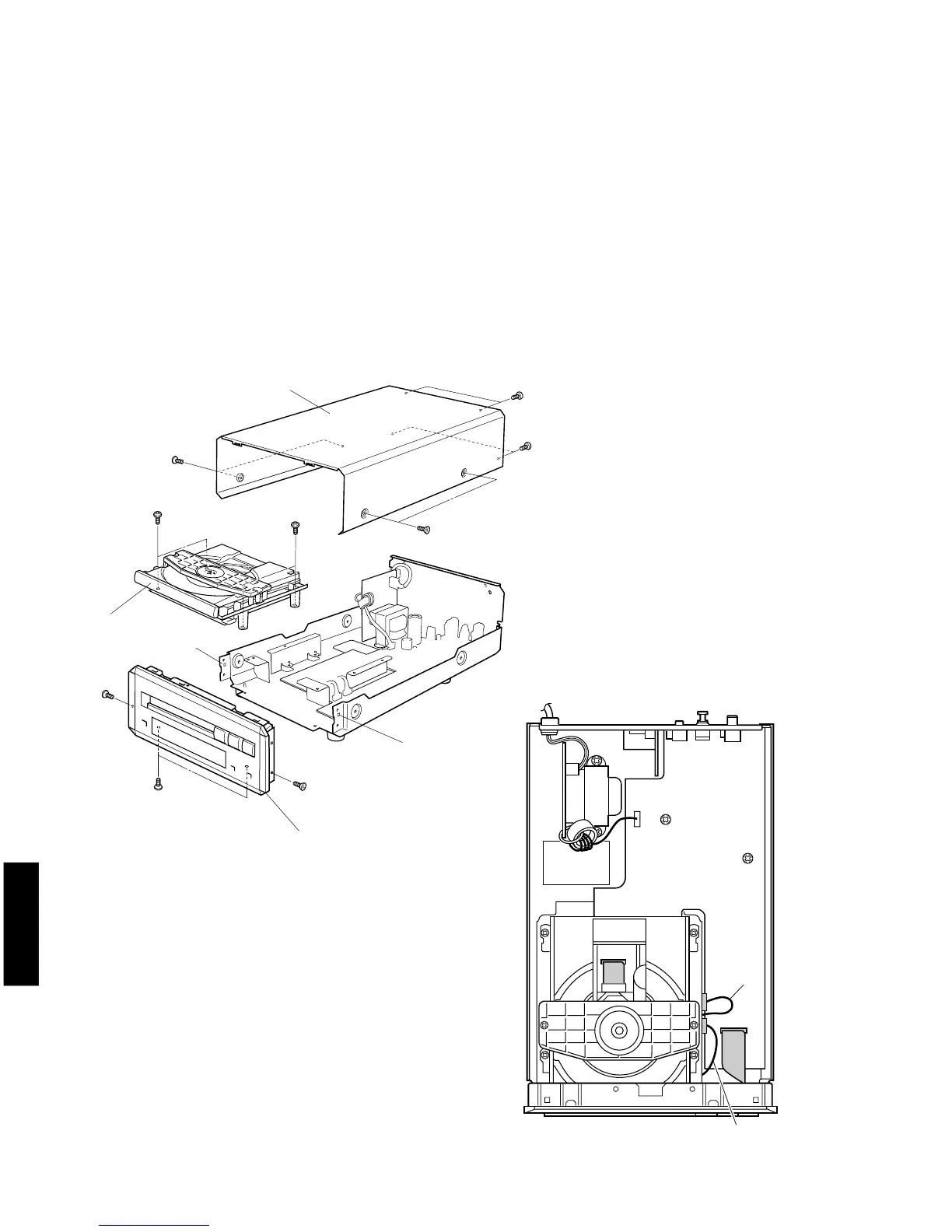

Fig. 2
Fig. 1
e
e
q
q
w
r
Top Cover
CD Mechanism
Unit
Front Panel
w
t
t
W2
W3
CB1
CB102
Hook
Hook
