Yamaha CP2000 - Page 13

INPUT
CHANNEL R
CHANNEL L
YAMAHA
SPEAKER
PROCESSING
PARALLEL
BRIDGE
STEREO
(BRIDGE)
ON
OFF
A
A'
to PA-CN101
Component side
CP2000
13

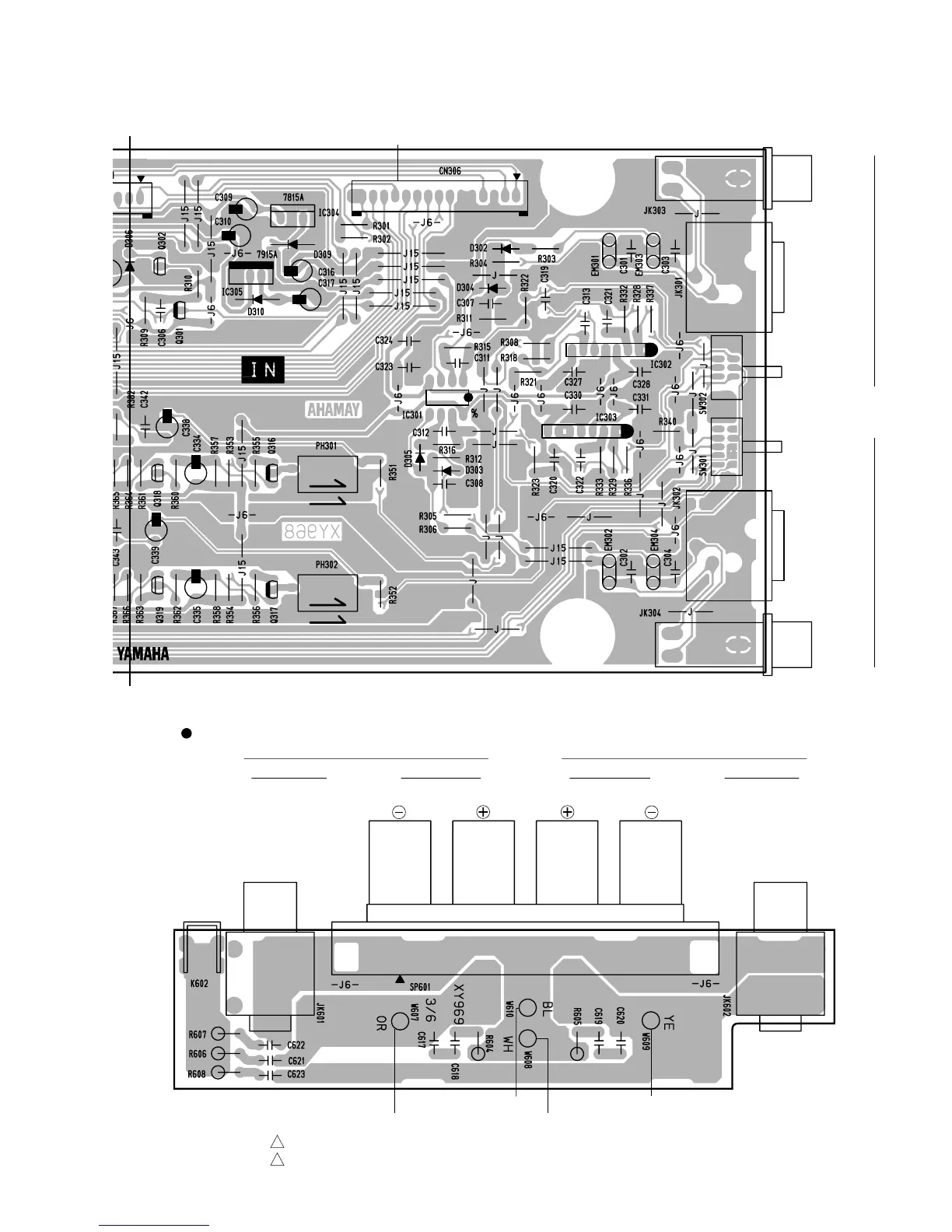

Component side
SPEAKERS
(-) BRIDGE (+)
12 21
CHANNEL L CHANNEL R
to PA-CN106
to AC 2/6-CN612to PA-CN105
to REAR PANEL
IN: 3NA-V607200
AC 3/6: 3NA-V607220
1
2
AC 3/6 Circuit Board
