Yamaha CP2000 - Circuit Boards

to IN-CN303
Component side
LEVEL CONTROL L LEVEL CONTROL R
to IN-CN304
to IN-CN305
Component side
Component side
Component side
POWER ON/OFF
to AC 2/6-
CN601
to AC 2/6-
CN603
to AC 2/6-
CN602
POWER PROTECTION
TEMP
LEVEL L
LEVEL R
CLIP L
CLIP R
A
A'
to FAN
to AC6/6
-CN617
to AC 5/6
-CN616
to AC 4/6
-CN615
to AC 2/6-CN614
CP2000
12
CIRCUIT BOARDS
IN: 3NA-V607200
AC 1/6, 4/6, 5/6, 6/6: 3NA-V607220
1
2

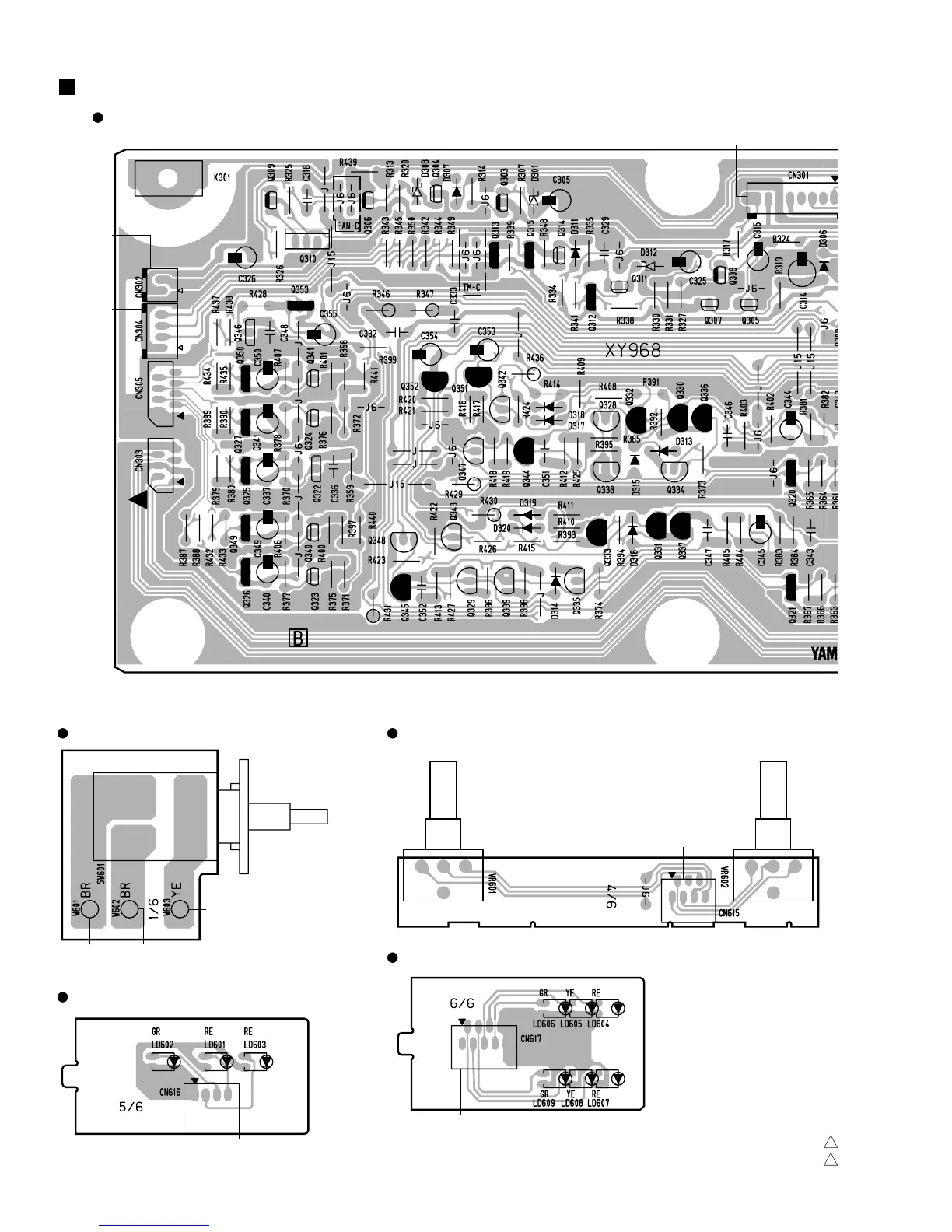

IN Circuit Board
AC 4/6 Circuit BoardAC 1/6 Circuit Board
AC 5/6 Circuit Board
AC 6/6 Circuit Board
