CDC-E500
CDC-E500
19
h. After making sure that the drawer and chassis claws
are meshed properly, push in the drawer gradually until
it reaches the wall of the chassis. (Photo 31)
i. Pull the drawer in its opening direction lightly to check
that it is locked.
j. If the drawer has opened, close it again.
Then, push in the lever extending from the slider 2
located on the left side toward the rear until the knob of
SW7 is pushed. The drawer should be locked in this
way. (Photo 32)

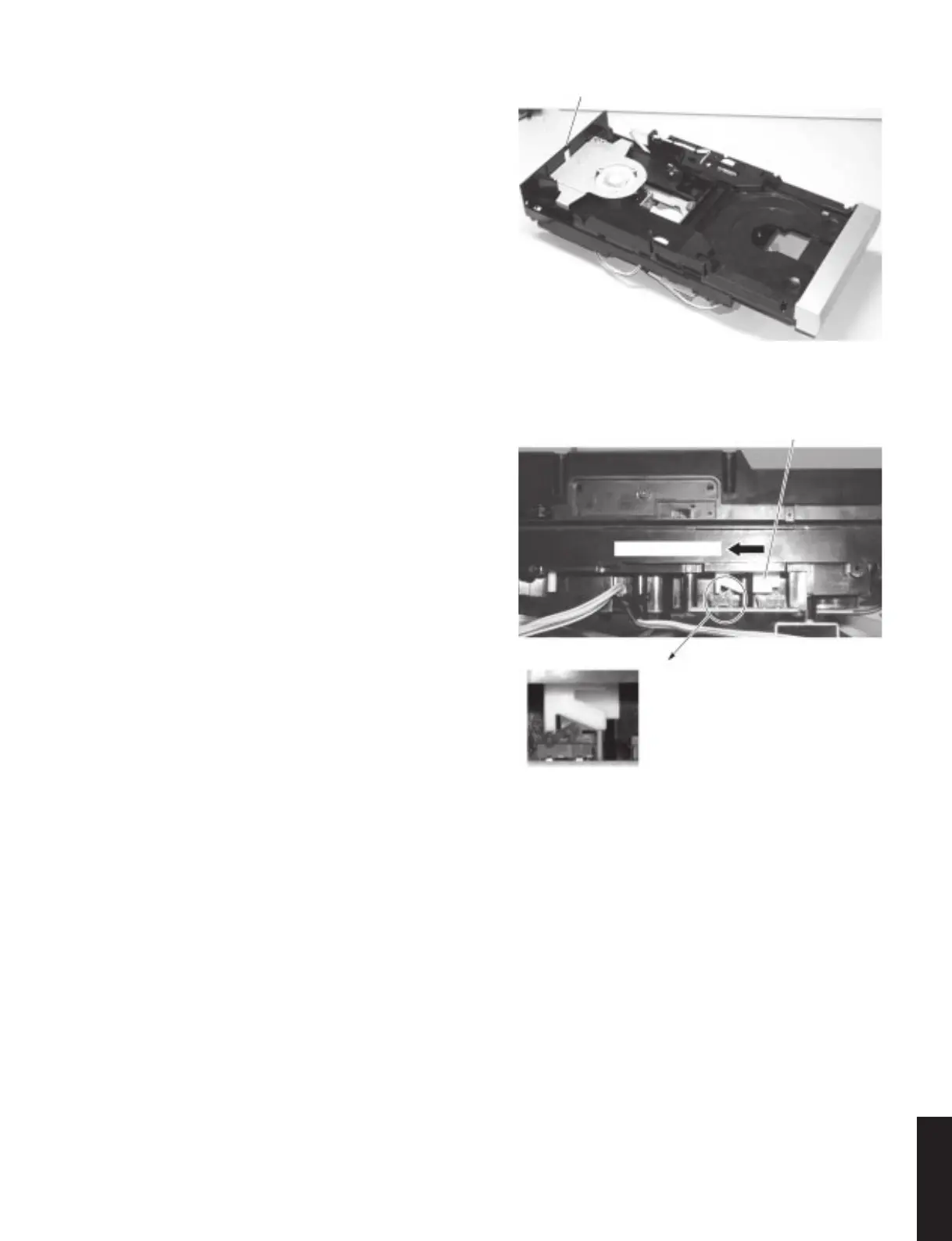

Photo 31
Photo 32
Limit for the lever to be pushed
Stop at the position as shown here
with respect to SW7.
Pushing it excessively will cause the
drawer lock to be released.
Move the lever
Lever extending from slider 2
Wall of chassis
To Next Page
