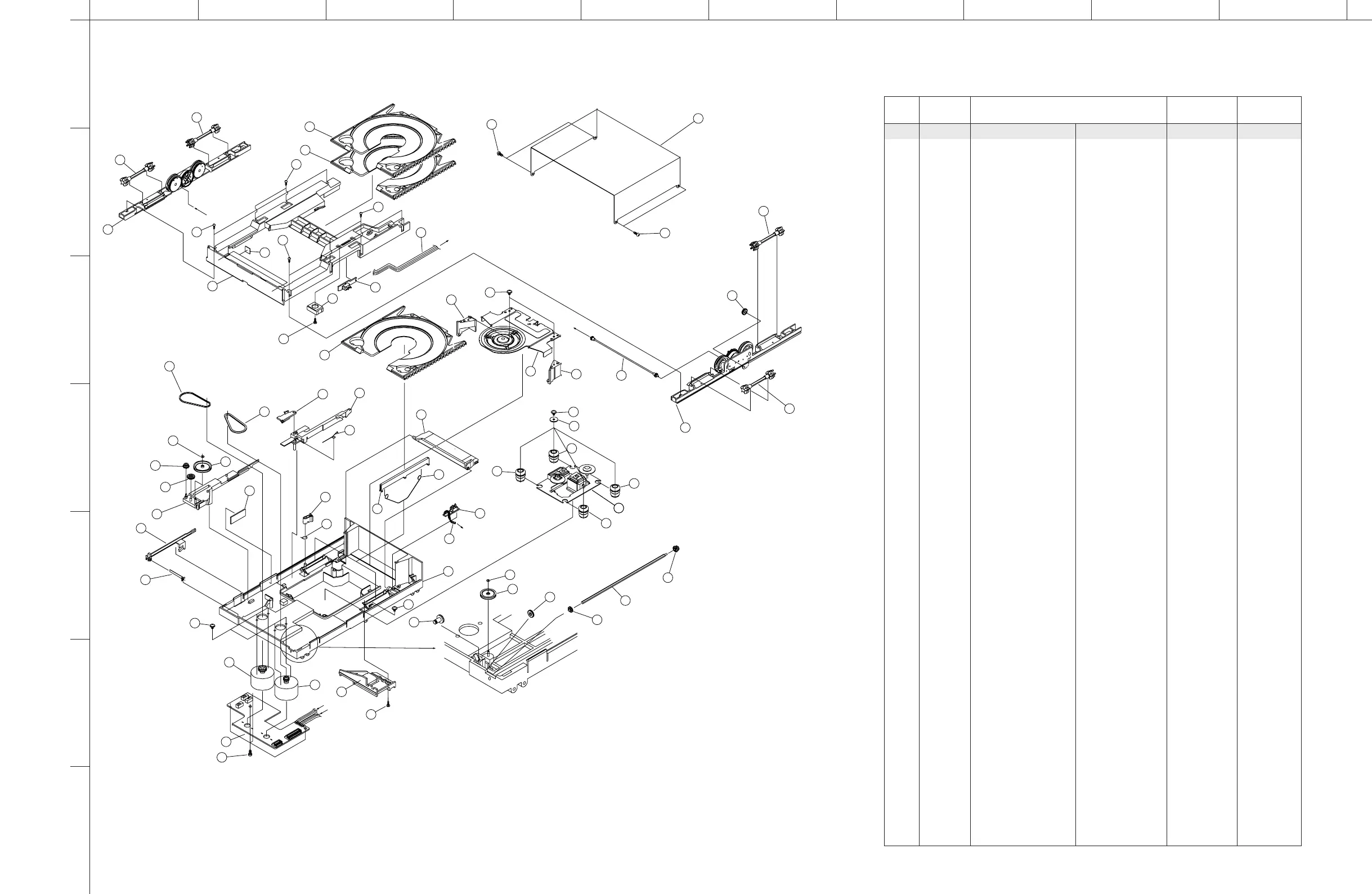

■ EXPLODED VIEW (CDC Mechanism Unit)
19
19
118
12
3
56
62
118
119
119
127
113
123
115
127
121
113
115
115
121
121
120
26
24
27
58
59
57
57
4
11
33
18
19
23
75
34
32
58
41
50
71
77
1
28
31
30
87
48
70
49
29
B
A
25
36
40
39
47
85
37
51
54
53
38
52
63
35
2
68
72
A
C
19
B
43
C
■ MECHANICAL PARTS (CDC Mechanism Unit)
Ref.
No. PART NO. Description Remarks Markets
V7527900 CDCMECHANISMUNIT CMCJ0125
1 AAX25400 ASS'YCHASSIS 450934256
2 AAX25490 DRAWER2 452643278
3 AAX25640 ASS'YHOLDERL 450933141
4 AAX25650 ASS'YHOLDERR3B 450933296
11 AAX25360 ASS'YGEARDRIVE 450934232
12 AAX25160 ASS'YCRG101 450934347
18 AAX25600 BEVELGEAR4 452224214
19 AAX25340 ASS'YGEARSTAR 450934244
23 AAX25300 COVER2 451123154
24 AAX25410 SHAFT 453004173
25 AAX25480 SLIDER4 452593175
26 AAX25350 GEARSPLINE 452224021
27 AAX25580 BEVELGEAR1 452224059
28 AAX25310 GEARIDLER1 452224176
29 AAX25570 PLATESPRING 451604174
30 AAX25590 BEVELGEAR3 452224177
31 AAX25560 PULLEYC 452224058
32 AAX25380 ASS'YCLAMPERSA 450934346
33 AAX25270 ARMSLIDERR 452193187
34 AAX25260 ARMSLIDERL 452193188
35 AAX25460 SLIDER1 452592185
36 AAX25470 ASS'YSLIDER2 450933240
37 AAX25240 ARMSTOPPERA2 452394279
38 AAX25250 ARMSTOPPERB 452394065
39 AAX25320 GEARIDLERA2 452224128
40 AAX25330 GEARIDLERC 452224051
41 AAX25690 LEVER2 452593289
43 AAX25680 LIFTER 452593025
47 AAX25550 PULLEYA 452294052
48 AAX25190 ASS'YMOTORCRGS 450934238
49 AAX25200 ASS'YMOTORDRWS 450934239
50 AAX25420 SPRING 010804541
51 AAX25430 SPRING 010824643
52 AAX25440 SPRING 010824647
53 AAX25610 BELT 020834214
54 AAX25620 BELT 020834215
56 AAX25370 CUSHION 450634136
57 AAX25280 INSULATOR 450633201
58 AAX25290 INSULATOR 450633202
59 V3175200 PUMECHA.UNIT DA11T3
62 AAX25170 ASS'YCRG201 450934348
63 AAX25180 ASS'YCRG301 450934349
68 AAX25450 SPACERSW 452194127
70 AAX25210 ASS'YPCBOARDA 450934263
71 AAX25220 ASS'YPCBOARDB 450934265
72 AAX25230 ASS'YPCBOARDC 450934264
75 AAX25660 LEADWIRE 450724171
77 AAX25670 LEADWIRE 450724172
85 AAX25390 RUBBERCUSHION 450634115
87 AAX25630 HOLDERWIRE 452123152
113 AAX25710 WASHER GWP15X045025S
115 AAX25510 SCREW GSL20A2606
118 AAX25520 SCREW GSL20B2006
119 AAX25500 SCREW GSL10B2006
120 AAX25700 WASHER GWN31X120050
121 AX622290 SCREW GSL15A2608
123 AAX25530 SCREW GSP15A2604
127 AAX25540 SCREW GST15A2005
✻ New Parts
