Yamaha CRX-E500 - Page 43

2
ABCDEFGH I J
1
3
4
5
7
CDC-E500
6
44
(5)
11
21
103
203
200
200-1
140
141
101
147
113
147
144
104
5
1-104
1-103
1-110
1-110
1-111
2-12
2-15
2-12
2-5
2-8
2-6
2-1
2-7
1-111
1-102
1-103
1-101
1-11
146
146
112
112
143
142
142
145
143
111
141
145
144
5
(3)
5
(1)
5
(2)
111
110
110
202
204
205
■ MECHANICAL PARTS
✻ New Parts
Ref.
No. PART NO. Description Remarks Markets
1‑11 MF116160 FLEXIBLEFLATCABLE 16P160mmP=1.25
* 1‑101 V9046900 FRONTPANEL GD
* 1‑101 V9047000 FRONTPANEL SI
* 1‑102 V9047300 SUBPANEL‑CDC GD
* 1‑102 V9047400 SUBPANEL‑CDC SI
* 1‑103 V8785200 PANEL/SIDE H100
* 1‑104 V8782600 SHEET
1‑110 VQ368600 PUSHRIVET P3555‑B
1‑111 VF617600 PANHEADP‑TITESCREW 2.6x8MFC2BL
2‑1 V7527900 CDCMECHANISMUNIT CMCJ0125
2‑5 MF506400 CRIMPINGASS'Y 6P400mmC&C
2‑6 V2017700 CONNECTOR,FLATCABLE 16P280mm
2‑7 V7716600 CONNECTORASS'Y 4P200mmC&C
2‑8 V7636300 CONNECTORASS'Y 8P120mmC&C
2‑12 EL300650 PWHEADB‑TITESCREW 3x8‑8MFC2BL
2‑15 CB836200 BINDINGTIE S‑70B
* 5 V9646000 P.C.B.ASS'Y GD:MAIN GD UC
* 5 V9646100 P.C.B.ASS'Y GD:MAIN GD A
s 11 V2296800 POWERCABLE 2m A
*
s 11 V9293500 POWERCABLE 2m UC
21 V2438700 CORDSTOPPER 10P1
101 V7127400 TOPCOVER GD
101 V7127300 TOPCOVER SI
* 103 V9046700 REARPANEL UC
* 103 V9046800 REARPANEL A
* 104 V9047100 LID/CDC GD
* 104 V9047200 LID/CDC SI
110 VR264400 SPACER H8
111 V3688500 LEG M0080‑M0
112 VQ390100 DAMPER 8x8x15
113 VP857700 DAMPER 4x6x5
140 VN413300 BINDHEADBONDINGB‑T.SCREW 3x8MFZN2BL
141 EP600830 BINDHEADB‑TITESCREW 3x8MFC2BL
142 EP600250 BINDHEADB‑TITESCREW 3x8MFZN2Y
143 EL300650 PWHEADB‑TITESCREW 3x8‑8MFC2BL
144 V2728500 BINDHEADS‑TITESCREW 4x7MFZN2BL
145 VT669400 PWHEADB‑TITESCREW 3x15‑8MFC2
146 EP600790 FLATHEADB‑TITESCREW 3x8MFZN2BL
147 VY712800 PWHEADB‑TITESCREW 3x8‑8MFNI33
ACCESSORIESOFCRX‑E500
* 200 V8913600 REMOTECONTROL RC‑7060‑01‑0029 RC‑7060‑01‑0029
200‑1 AAX13340 BATTERYCOVER BLJYE60050001 60050001
202 V6267000 INDOORFMANTENNA 1.4m1pc UC
202 VQ147100 INDOORFMANTENNA 1.4m1pc A
203 VR248500 AMLOOPANTENNA 1.0m1pc
204 VY952200 AUDIOPINCABLE 2P1m1pc
205 V4135300 SYSTEMCONTROLCABLE 1P1m1pc
BATTERY,MANGANESE UM‑3,AA,R06

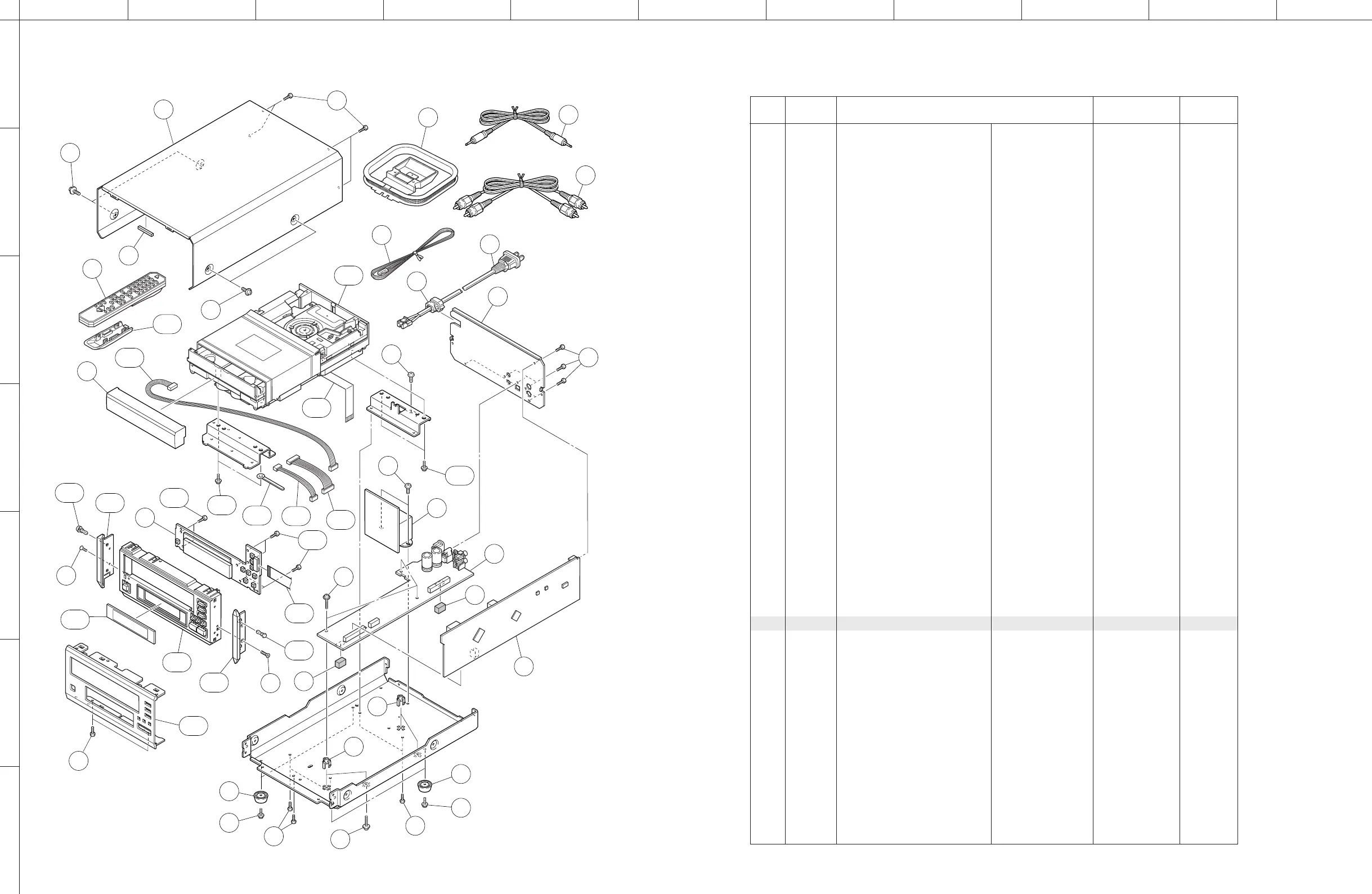

■ EXPLODED VIEW
