14
DBR10/DBR12/DBR15

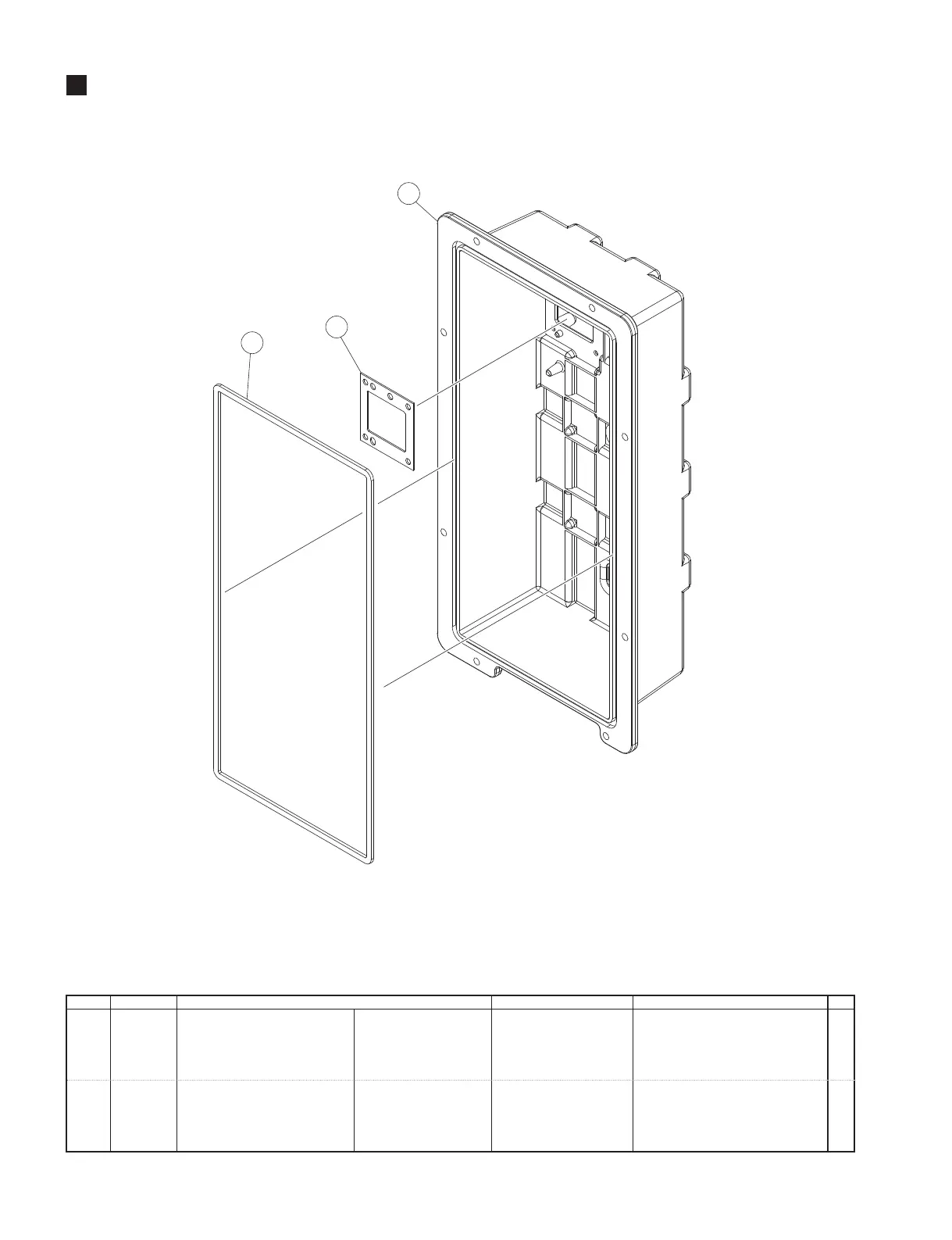

AMP COVER ASSEMBLY
（アンプカバー組立）



AMP COVER ASSEMBLY
アンプカバー組立
DBR10/DBR12/DBR15
-- AMP COVER ASSEMBLY
アンプカバー組立
(ZH84660)
10 -- AMP COVER
アンプカバー
(ZH84670)
＊
20 ZJ384000 CUSHION
クッション
30 -- CUSHION SPIN
クッションＳＰＩＮ
(ZH84680)
REF NO.
PART NO.
DESCRIPTION
部品名
REMARKS
QTY
*
: New Parts
