MAINTENANCE
7-8
J0C
Y-2825
2 3
1

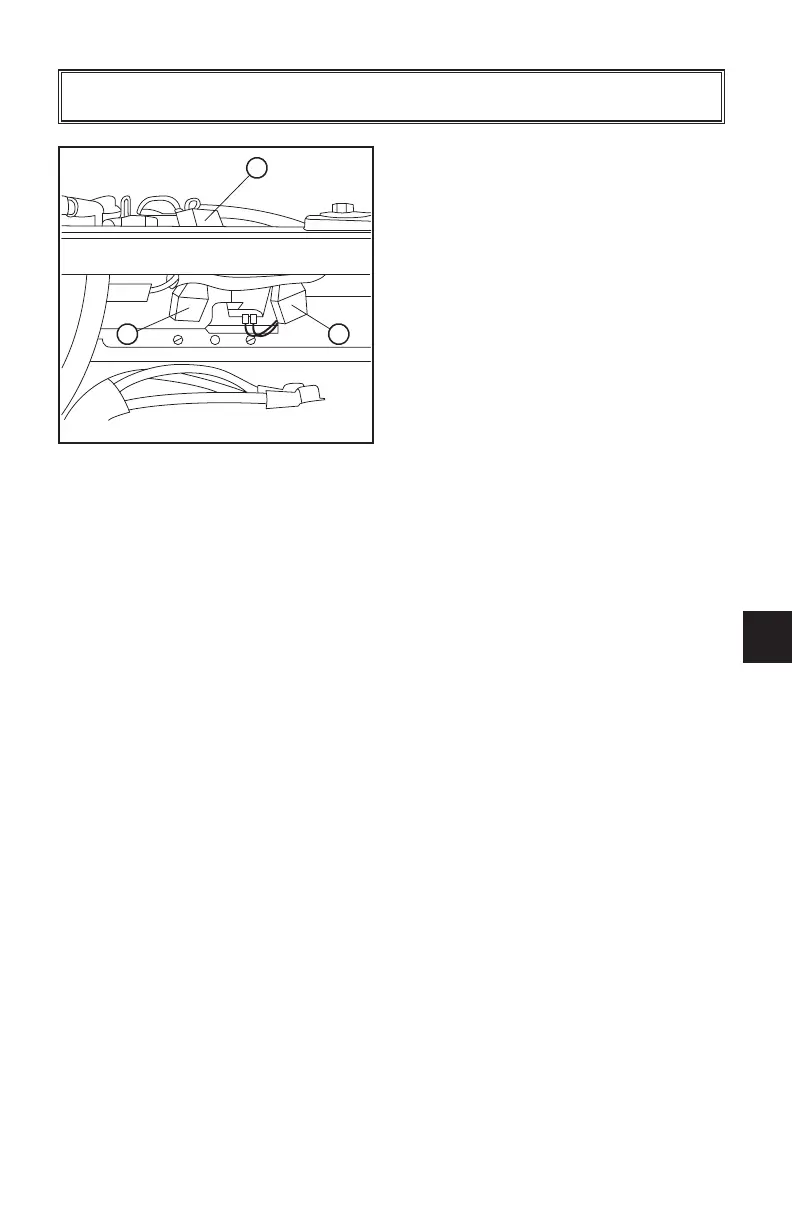

1. Locate the in-line fuse holders on
the main wire harness through
the rear service access panel.
The fuses are blade style.
2. Pull fuse holder cover off.
3. Pull fuse out, inspect and replace
if necessary.
1 Main fuse 5 amp
2 MCU fuse 3 amp
3 USB fuse 1 amp (optional)
