RX-V2400/RX-V2400RDS/DSP-AX2400
RX-V1400/RX-V1400RDS/HTR-5690/DSP-AX1400
21
RX-V2400/RX-V2400RDS/DSP-AX2400
RX-V1400/RX-V1400RDS/HTR-5690/DSP-AX1400
DSP P.C.B.
VIDEO (1) P.C.B.
VIDEO (2) P.C.B.
CONVERSION P.C.B.
FUNCTION P.C.B.
VIDEO (6) P.C.B.
VIDEO (8) P.C.B.
VIDEO (7) P.C.B.
VIDEO (3) P.C.B.
VIDEO (5) P.C.B.
Rubber Sheet and Cloth
Tuner

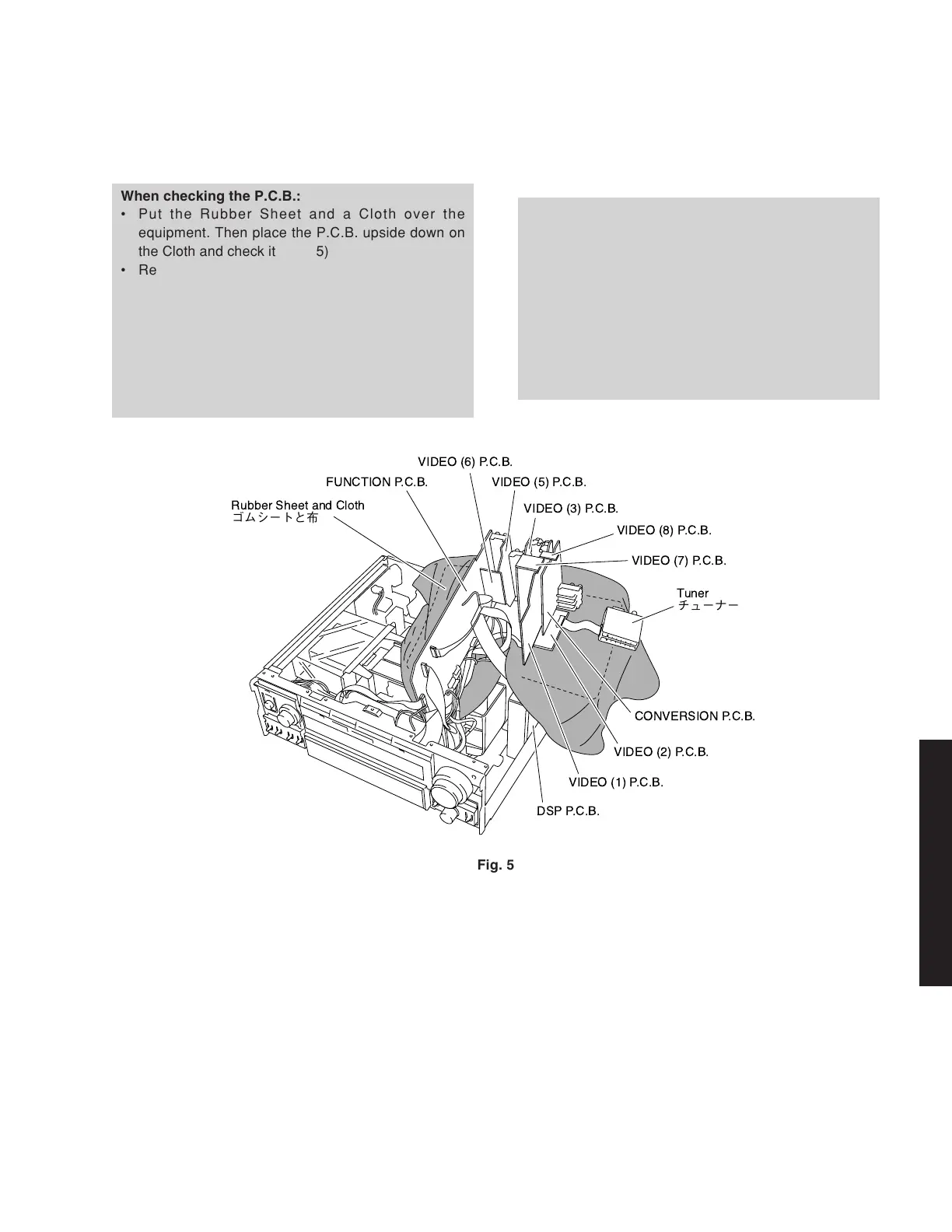

Fig. 5
When checking the P.C.B.:
• Put the Rubber Sheet and a Cloth over the
equipment. Then place the P.C.B. upside down on
the Cloth and check it. (Fig. 5)
• Reconnect all cables (connectors) that have been
disconnected.
• When connecting the flat cable, use care for the
polarity.
• The P.C.B. removed from the rear panel does not
work because its grounding is loose. Be sure to
connect the ground of each P.C.B. to the chassis or
GND with a jumper wire or the like.
P.C.B.チェックをする場合には
6. Removal of VIDEO (1) ~ (3), (5) ~ (8), FUNCTION,
CONVERSION P.C.B.s and Tuner
a. Remove 25 screws (C). (Fig. 4)
b. Remove VIDEO (1) ~ (3), (5) ~ (8), FUNCTION,
CONVERSION P.C.B.s and Tuner. (Fig. 5)
6. VIDEO（1）〜（3）、（5）〜（8）、FUNCTION、
CONVERSIONP.C.B.、チューナーの外し方
To Next Page
