Yamaha DSP-E200 - Page 7

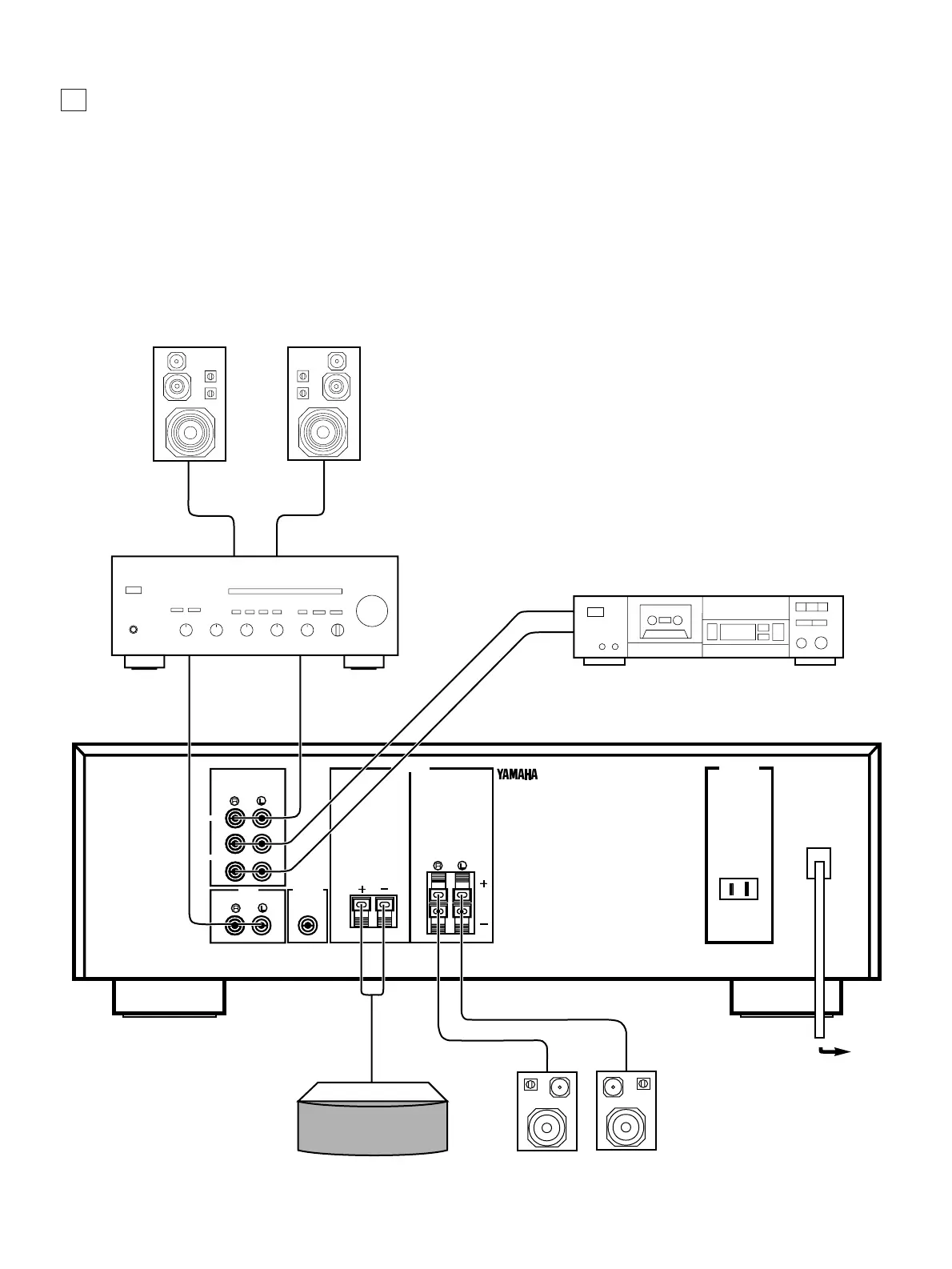

B Connecting to an Integrated Amplifier or Stereo Receiver that does not
have PRE OUT and MAIN IN terminals
If your amplifier or receiver has the REC OUT selector which is independent of the input selector, connect this unit to the amplifier
or receiver tape REC OUT and auxiliary (AUX) input terminals. If not, connect this unit to the amplifier or receiver tape REC OUT
and TAPE PB terminals.
If your system includes a tape deck which have been displaced by connecting this unit to the tape REC OUT terminals, reconnect
your tape deck to this unit’s TAPE PB and TAPE REC OUT terminals.
7
INPUT
TAPE
PB
REC
OUT
TAPE
MAIN
OUT
CENTER
OUT
CENTER REAR
SPEAKERS
AC OUTLET
UNSWITCHED
120V 60Hz
200W MAX.
1.6A MAX.
AUX
(TAPE PB)
REC OUT
LINE OUT
LINE IN
Front speakers
Left Right
Integrated amp.
Tape deck
(U.S.A model)
To
AC outlet
Center speaker
Right
Rear speakers
Left
