Yamaha DSP-E200 - Integrated Amplifier or Stereo Receiver; Connections

•
Before attempting to make any connections to or from this unit, be sure to first switch OFF the power to this unit and to any other
components to which connections are being made.
•
When making connections between this unit and other components, be sure all connections are made correctly, that is to say L
(left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this
unit.
•
Choose one of the following three ways to connect this unit to your amplifier.

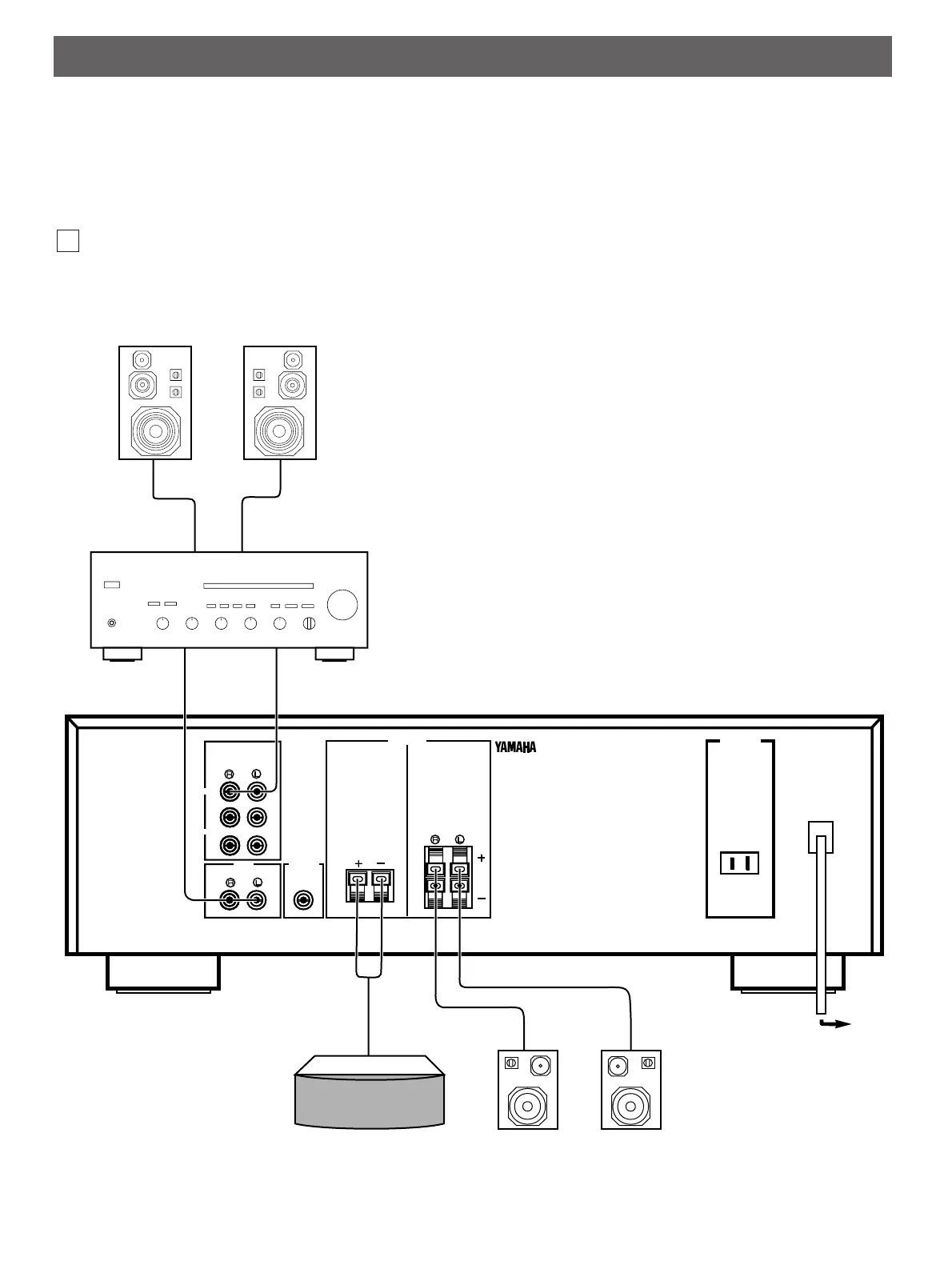

A Connecting to an Integrated Amplifier or Stereo Receiver with PRE OUT
and MAIN IN terminals
CONNECTIONS
6
INPUT
TAPE
PB
REC
OUT
TAPE
MAIN
OUT
CENTER
OUT
CENTER REAR
SPEAKERS
AC OUTLET
UNSWITCHED
120V 60Hz
200W MAX.
1.6A MAX.
MAIN IN
PRE OUT
Front speakers
Right
Left
Integrated amp.
(U.S.A model)
To
AC outlet
Center speaker
Right
Left
Rear speakers
