B Connecting to an Integrated
Amplifier or Stereo Receiver that
does not have PRE OUT and MAIN
IN terminals
If your amplifier or receiver has the REC OUT selector which is
independent of the input selector, connect this unit to the
amplifier or receiver tape REC OUT and auxiliary (AUX) input
terminals. If not, connect this unit to the amplifier or receiver
tape REC OUT and TAPE PB terminals.
If your system includes a tape deck which have been
displaced by connecting this unit to the tape REC OUT
terminals, reconnect your tape deck to this unit’s TAPE PB and
TAPE REC OUT terminals.

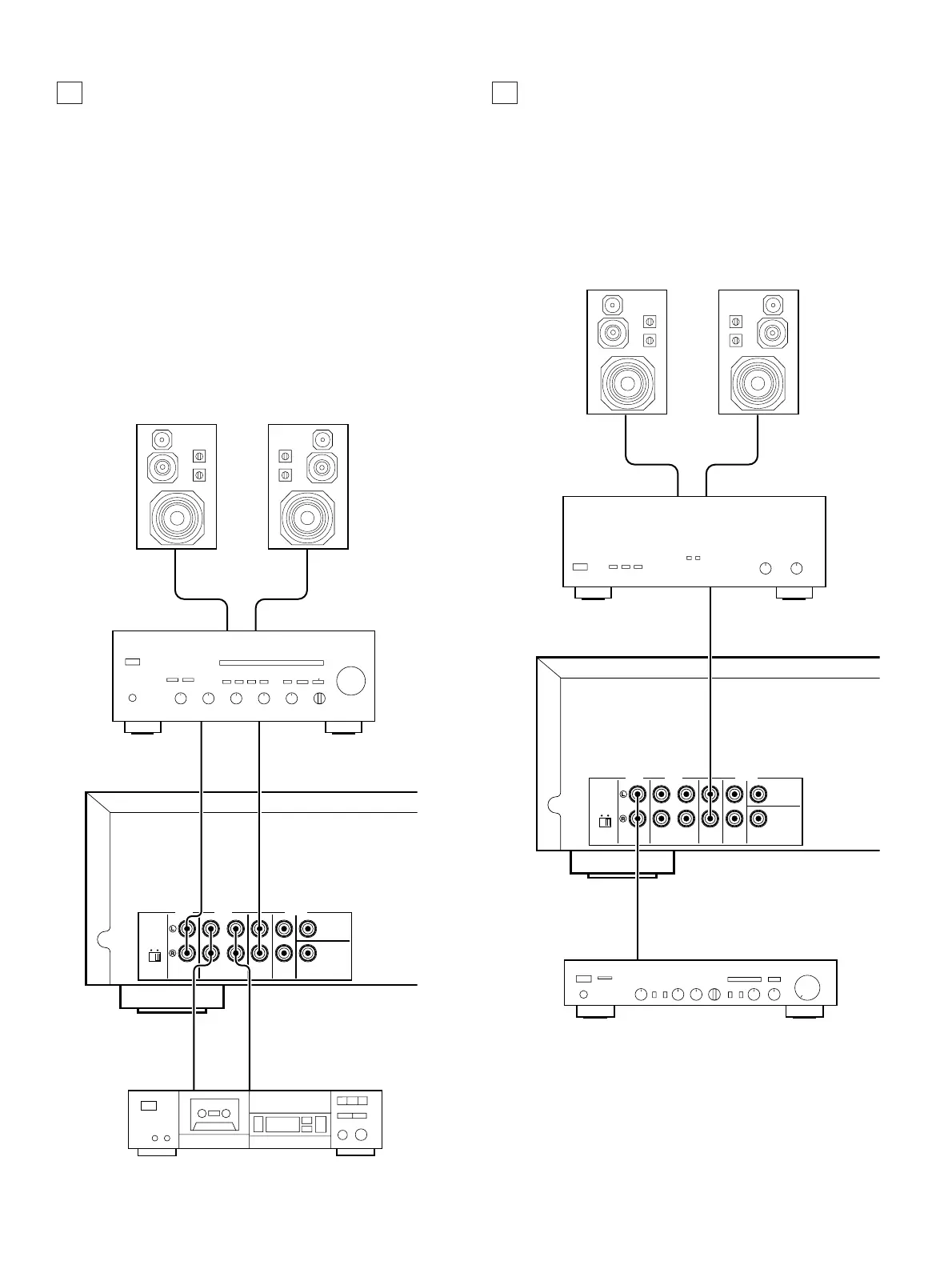

C Connecting to a Control Amplifier
and Power Amplifier
REC
OUT
l0dB 0 dB -
FRONT
LEVEL
LOW
PASS
fc:200Hz
CENTER
OUT
FRONT
OUT
REAR
OUT
INPUT TAPE OUTPUT
TAPE
PB
REC OUT
AUX
(TAPE PB)
LINE OUT LINE IN
Front speakers
Integrated amp.
Right
Left
Tape deck
REC
OUT
l0dB 0 dB -
FRONT
LEVEL
LOW
PASS
fc:200Hz
CENTER
OUT
FRONT
OUT
REAR
OUT
INPUT TAPE OUTPUT
TAPE
PB
INPUT
PRE OUT
Front speakers
Power amp.
Right
Left
Control amp.
* For connecting the center speaker and the rear speakers, see
the figure on the previous page.
