IDENTIFICATION OF CONTROLS
1 POWER
Turns the power on/off.
2 Display panel
Displays your selection on the DSP or
other information.
3 Remote control sensor
Receives signals from the remote
control transmitter.
4 TEST
Used for speaker balance adjustment.
(See pages 10–11.)
5 CENTER LEVEL
Adjusts center speaker sound output
level. (See page 14.)
6 CENTER MODE
Selects center channel output mode.
(See page 10.)
7 PROGRAM
Selects a program from the digital
sound field processor. (See pages
12–14.)
8 REAR LEVEL
Adjusts rear speaker sound output
level. (See page 14.)
9 EFFECT ON/OFF
Switches on/off the digital sound field
processor. (See page 14.)
0 TAPE MONITOR
Used when the tape deck is connected
to this unit’s TAPE terminals to select
that tape as the input source. (See
page 13.)
A MASTER VOLUME
Turns the master volume level
up/down.
B DELAY TIME
Adjusts delay time. (See page 15.)
DIGITAL SOUND FIELD PROCESSOR
PROGRAM
EFFECT
TAPE
MONITOR
POWER
CENTER LEVEL
VOLUME
CINEMA DSP
NATURAL SOUND DIGITAL SOUND FIELD PROCESSOR DSP–E390
0I0
l6
l8
20
24
28
34
40
50
60
70
l4
l2
l0
8
6
4
3
2
l
0
–dB
l
REAR LEVEL
0I0
TEST
CENTER
MODE
ms
PRO LOGIC
ENHANCED
WIDE
DELAY
1
A
097865432
TEST
MASTER
VOLUME
TAPE MONITOR
PRO LOGIC ENHANCED
HALL
CNCT VIDEO
EFFECT
ON/OFF
+
–
PROGRAM
—
MONO MOVIE
CENTER MODE
+
–
DELAY
TIME
ROCK
SUR.
7
4
B
0
9
6
A

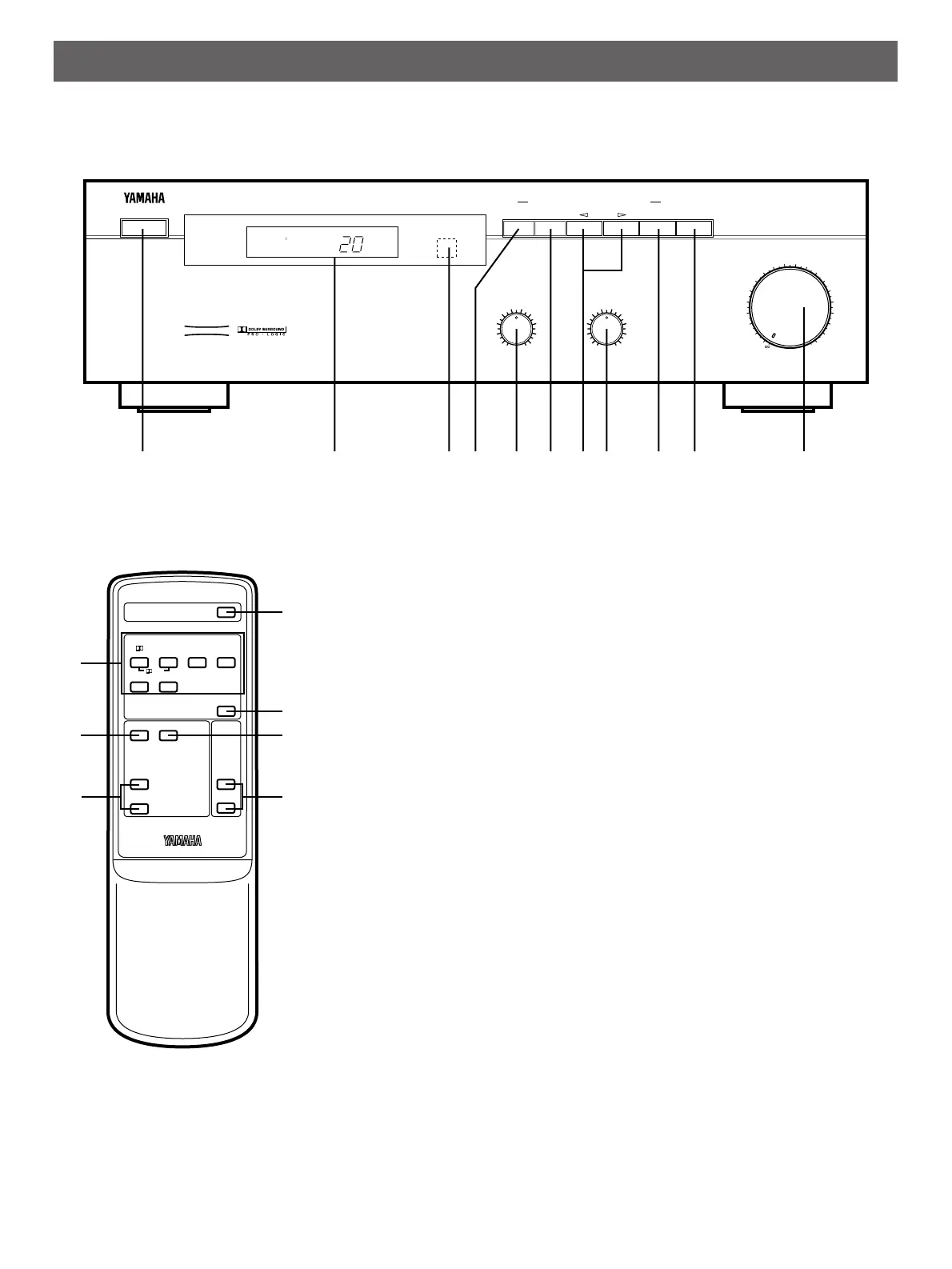

FRONT PANEL
REMOTE CONTROL TRANSMITTER
