CONNECTIONS
•
Before attempting to make any connections to or from this unit, be sure to first switch OFF the power to this unit and to any other
components to which connections are being made.
•
When making connections between this unit and other components, be sure all connections are made correctly, that is to say L
(left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual for each component to be connected to this
unit.
•
Choose one of the following three ways to connect this unit to your amplifier.

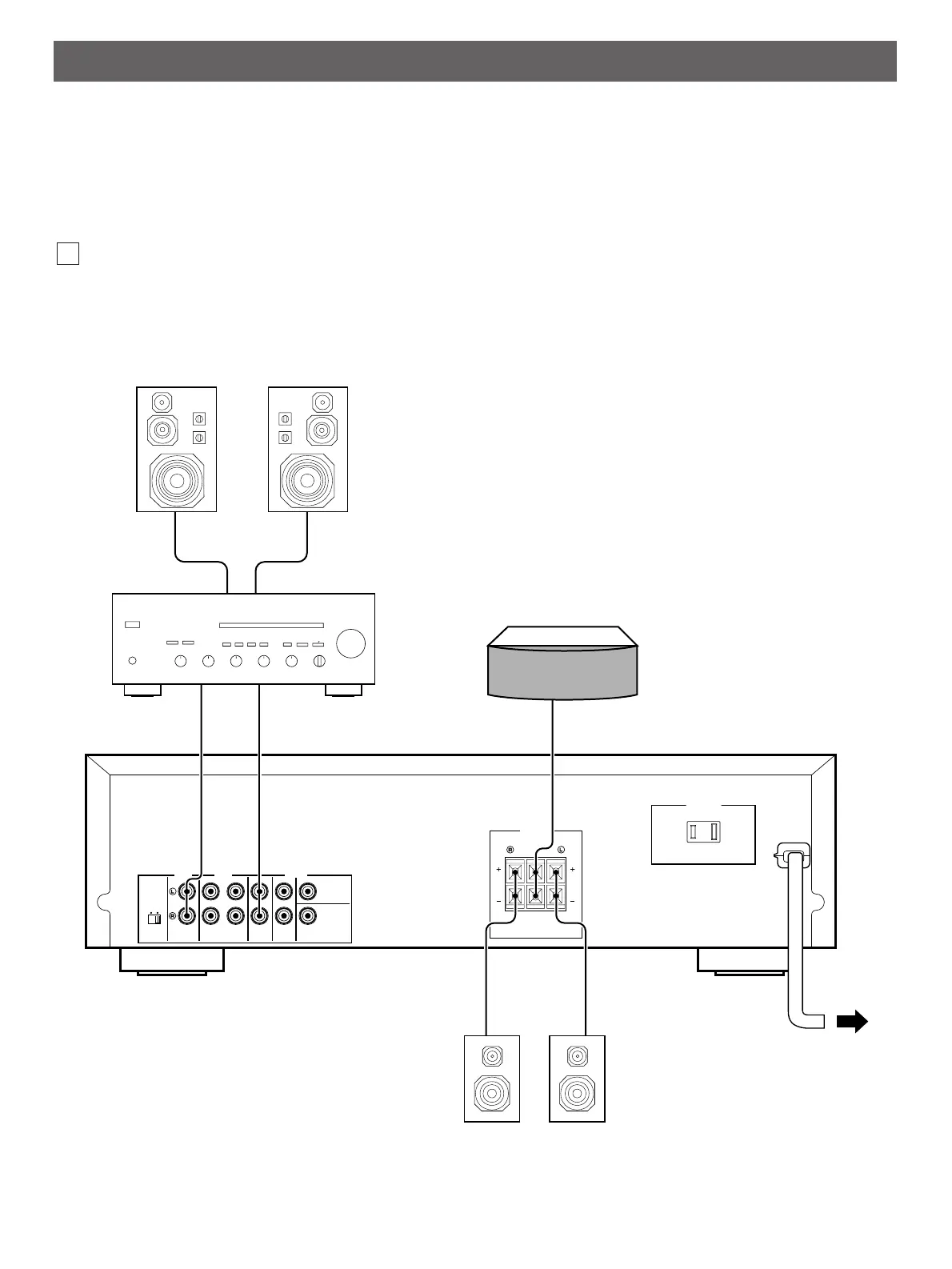

A Connecting to an Integrated Amplifier or Stereo Receiver with PRE OUT and
MAIN IN terminals
REC
OUT
AC OUTLET
l0dB 0 dB -
FRONT
LEVEL
LOW
PASS
fc:200Hz
CENTER
OUT
FRONT
OUT
REAR
OUT
SPEAKERS
REAR CENTER REAR
8ΩMIN./SPEAKER
8ΩMIN./HAUT–PARLEUR
UNSWITCHED
I20V 60Hz
I00W MAX.
INPUT TAPE OUTPUT
0.8A MAX.
TAPE
PB
PRE OUT MAIN IN
Front speakers
(U.S.A. model)
Right
Integrated amp.
To AC outlet
Right
Left
Left
Center speaker
Rear speakers
