Yamaha DTX432K User Manual

Panel Controls & Functions
24
Setup
DTX402K DTX432K DTX452K Owner’s Manual
. [USB TO HOST] terminal (page 58)
Connect a computer or smart device such as an iPhone or
iPad to send and receive digital signals (audio and
MIDI).
Additional parts are required for connecting an iPhone
or iPad. For more information, refer to “iPhone/iPad
Connection Manual” (PDF).
⁄0 [AUX IN] jack (page 21)
The Auxiliary Input stereo mini-jack is used to input
audio from an external source. For example, you can use
this jack to connect a portable music player or another
similar device and play along with your favorite tunes.
⁄1 [PHONES/OUTPUT] jack (page 21)
Use this standard stereo-audio jack to connect head-
phones, an amplifier, a mixer, or other similar equip-
ment.
⁄2 Cord clip (page 21)
Wrap the AC adaptor cord around this clip to prevent
accidental unplugging during use.
⁄3 [ ] connector (page 21)
Use this connector for the AC adaptor that came with
your drum module.
⁄4 Trigger input jacks (page 20)
Use these jacks to connect the snare, tom, and cymbal
pads.
⁄5 [HI-HAT CTL] jack (page 20)
The Hi-hat Control jack is used to connect a hi-hat con-
troller.
⁄6 [KICK/PAD] jack (page 20)
Use this jack to connect a kick pad or pedal. By connect-
ing a KP65, you can add another pad using the PAD >
IN jack on the KP65 (page 57).

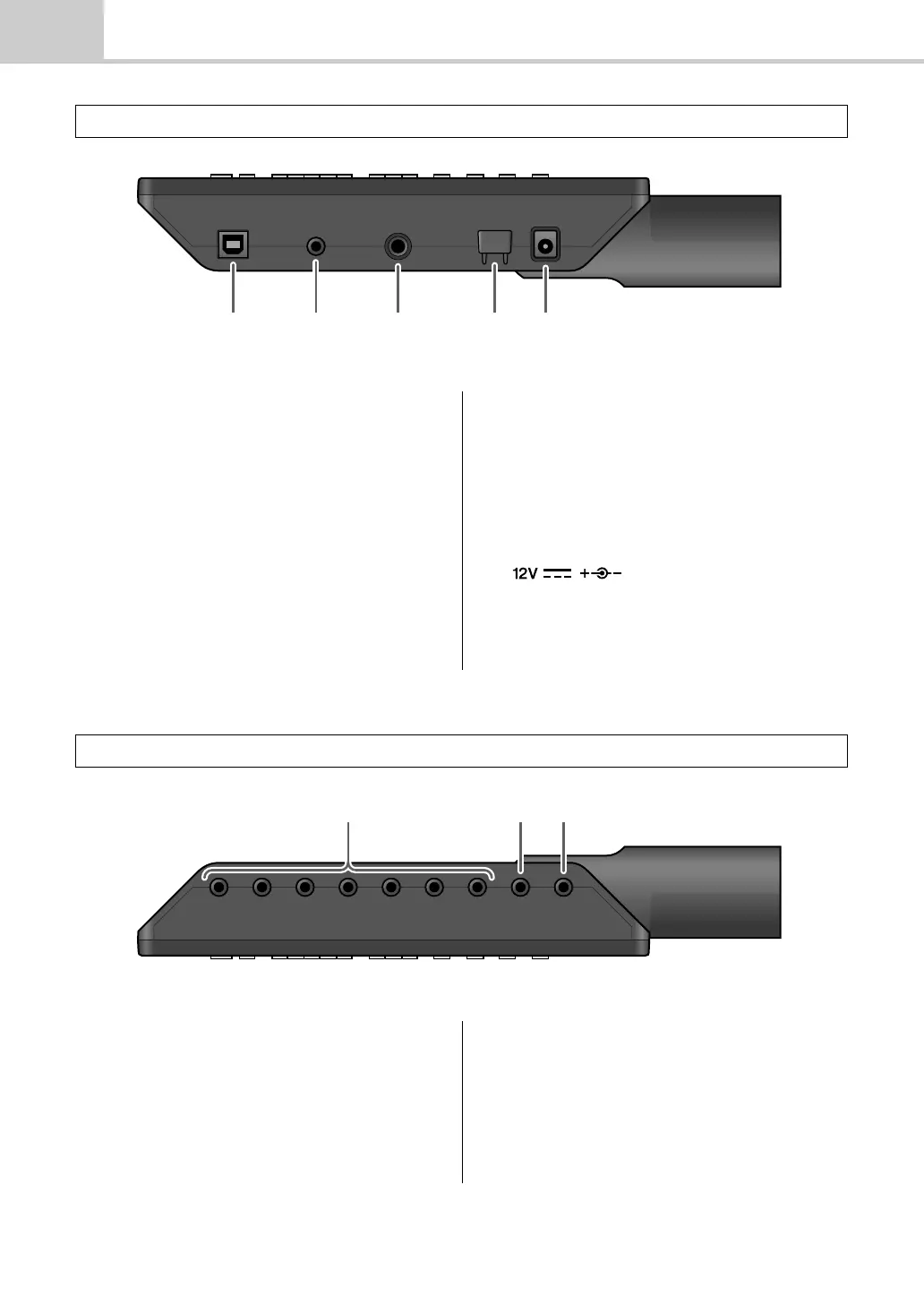

Bottom Panel
. ⁄0 ⁄1 ⁄2 ⁄3
Top Panel
⁄5 ⁄6⁄4

Yamaha DTX432K Specifications

General

Type	Drum system
Ride cymbal	Yes
Number of pieces	- pc(s)
Drum sound types	Crash, Hi-hat, Kick, Ride, Snare drum, Tom
Drum kits quantity	10
USB connector type	USB Type-B
Maximum polyphony (notes)	64
Power source type	-
Power consumption (typical)	5 W

Weight and Dimensions

Sound module weight	500 g
Sound module dimensions (W x D x H)	269 x 39 x 147 mm
