Yamaha DVD-E600 - Specifications; Internal View

DVD-E600
7
PLAYBACK SYSTEM /対応ディスク
DVD Video
Video CD & SVCD
CD
PICTURE CD
CD-R, CD-RW
DVD+R, DVD+RW
DVD-R, DVD-RW
VIDEO PERFORMANCE /ビデオ部
Video (CVBS) Output 1 Vpp into 75 ohms
S-Video Output Y: 1Vpp into 75 ohms
C: 0.3Vpp into 75 ohms
Component Video Output Y: 1Vpp into 75 ohms
Pb/Cb Pr/Cr: 0.7Vpp into 75 ohms
RGB (SCART) Output 0.7 Vpp into 75 ohms
Black Level Shift On/Off
Video Shift Left/Right
AUDIO FORMAT /オーディオフォーマット
Digital Mpeg/Dolby Digital Compressed Digital
PCM 16, 20, 24 bits
fs, 44.1, 48, 96 kHz
MP3(ISO 9660) 24, 32, 56, 64, 96, 128, 256 kbps
fs 16, 22.05, 24, 32, 44.1, 48kHz
Analog Sound Stereo
AUDIO PERFORMANCE /オーディオ特性
DA Converter 24 bits
Signal-Noise (1kHz) 105 dB
Dynamic Range (1kHz) 100 dB
DVD fs 96 kHz 2 Hz - 44 kHz
fs 48 kHz 2 Hz - 22 kHz
SVCD fs 48 kHz 2 Hz - 22 kHz
fs 44.1 kHz 2 Hz - 20 kHz
CD/VCD fs 44.1 kHz 2 Hz - 20 kHz
Distortion and Noise (1kHz) 0.003%
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multistandard (PAL/NTSC)
CONNECTIONS /接続端子
Y Output Cinch (green)
Pb/Cb Output Cinch (blue)
Pr/Cr Output Cinch (red)
SCART Euroconnector ( B, G, E models only )
D Terminal (J model only)
S-Video Output Mini DIN, 4 pins
Video Output Cinch
Audio Output (L+R) Cinch

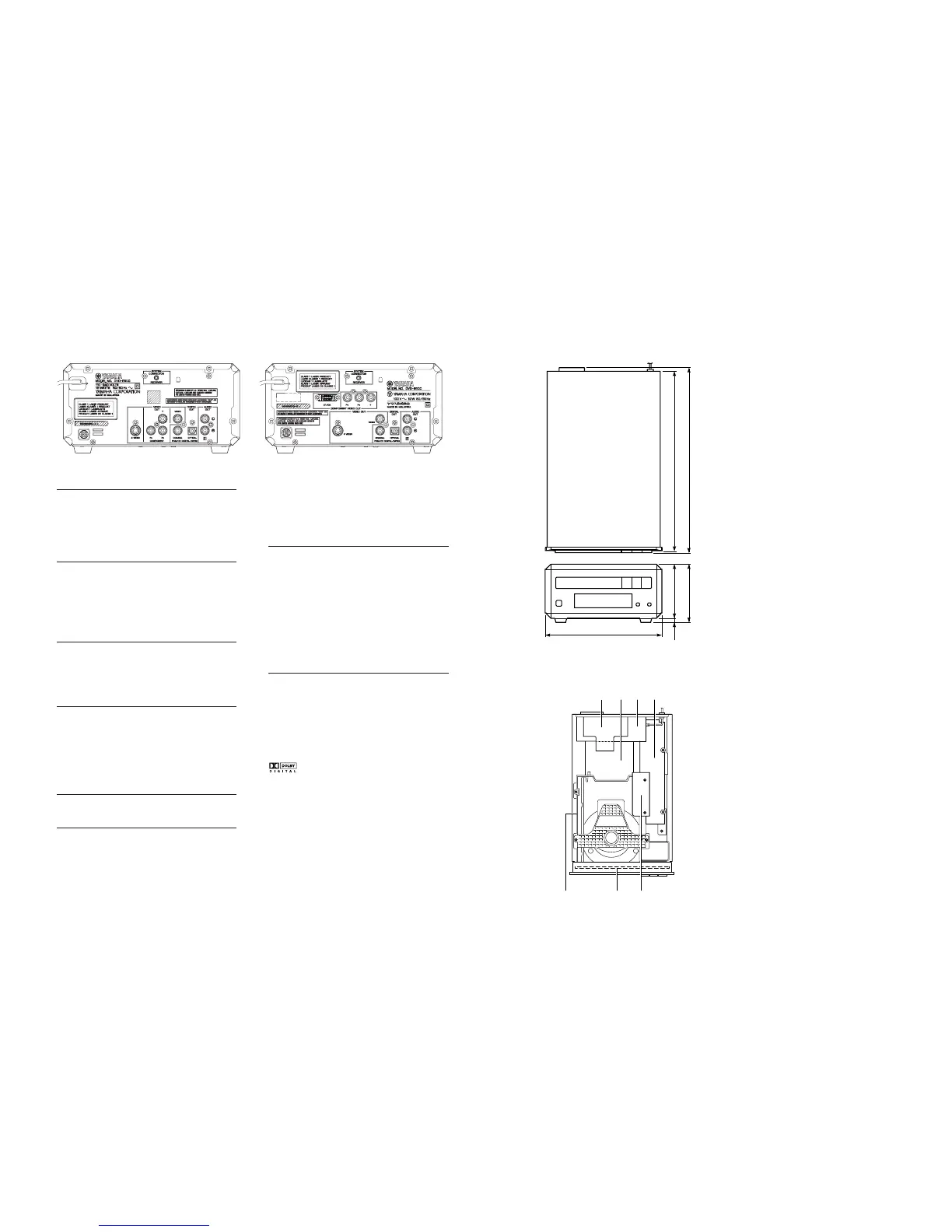

■ SPECIFICATIONS / 参考仕様
217(8-9/16")
100(3-15/16")
8
(5/16")
108(4-1/4")
335(13-3/16")
346(13-5/8")
● DIMENSIONS / 寸法図 (DVD-E600)
Digital Output 1 coaxial, 1 optical
IEC958 for CDDA / LPCM/
MPEG1
IEC1937 for MPEG 2, Dolby
Digital
GENERAL /一般
Dimensions (w x h x d) 217 x 108 x 346
Weight Approx. 2.5 Kg
Finish
Gold color U, C, R, K, A, G, E models
Silver color U, R, B, G, E, L, J models
Power Supply
U, C models AC120V, 60Hz
R, L models AC110/120/220/230-240V, 50/60Hz
K model AC220V, 60Hz
A model AC240V, 50Hz
B, G, E models AC230V, 50Hz
J model AC100V, 50/60Hz
Power Consumption 12W
Standby Power Consumption (reference data) 1W
ACCESSORIES /付属品(RDX-E600)
Remote Control x 1, Battery x 2
System Control Cable x 1, Audio Pin Cable x 1, Video Pin Cable x 1
* Specifications subject to change without prior notice.
※ 参考仕様および外観は予告なく変更されることがあります。
■ INTERNAL VIEW
6 75
1
1
3 42
OPERATION (2) P.C.B.
2
MONO P.C.B.
3
VIDEO P.C.B. (B, G, E, J models only)
4
POWER SUPPLY UNIT
5
DVD MECHANISM UNIT
6
OPERATION (1) P.C.B.
7
OPERATION (3) P.C.B.
Unit : mm (inch)
単位：mm（インチ）
J modelL model
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
ドルビーラボラトリーズからの実施権により製造され
ています。「ドルビー」及びダブルD記号は、ドルビー
ラボラトリーズの商標です。
U ....... USA model
C ....... Canadian model
R ....... General model
K ....... Korean model
A ....... Australian model
B ....... British model
G ....... European model
E ....... South European model
J ....... Japanese model
