Yamaha e60hwd User Manual

69D5G11
6-10
9
8
7
6
5
4
3
2
1
Lower unit

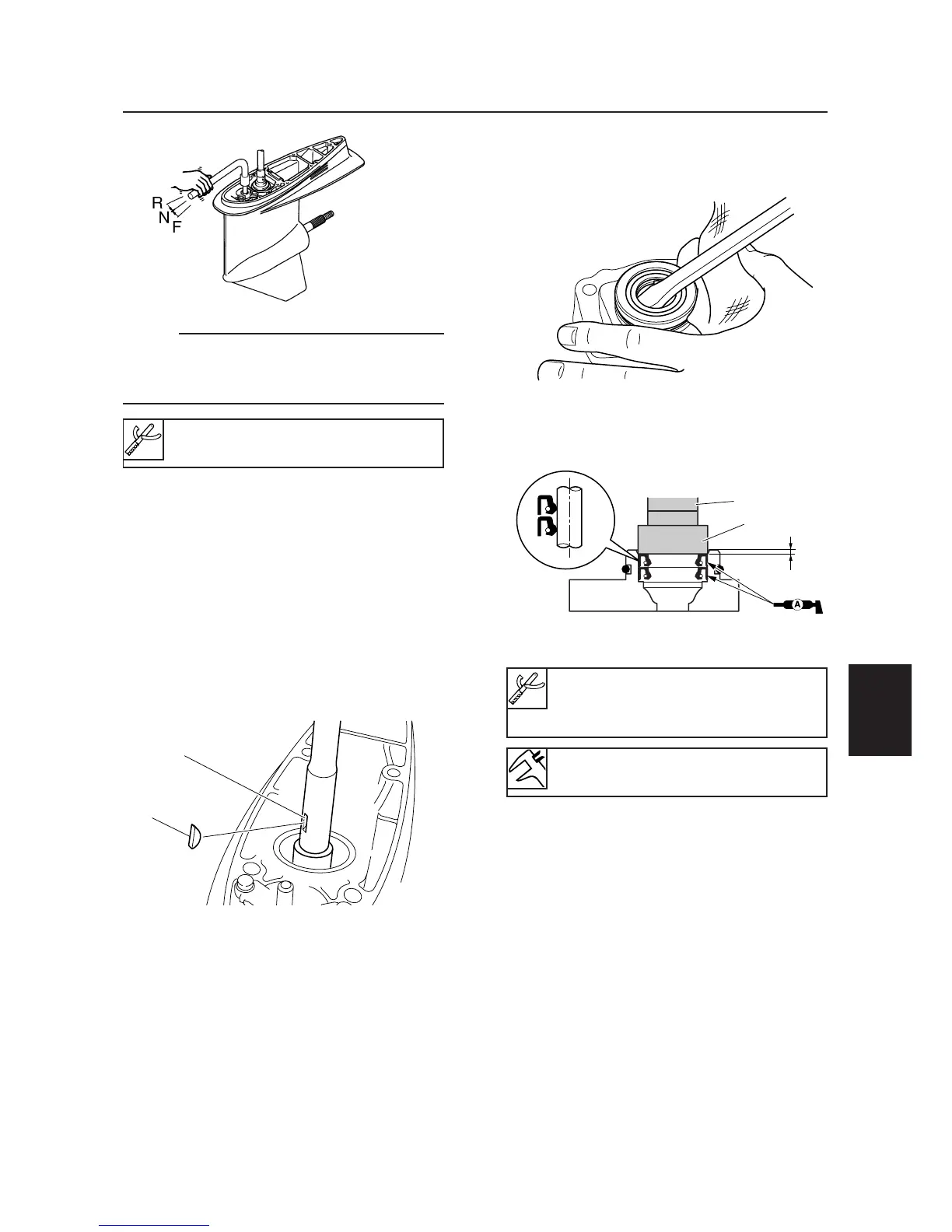

NOTE:
Set the shift to the neutral position using the
special service tool,before remove the shift
rod assembly.
Checking the water pump and shift
rod
1. Check the water pump housing for defor-
mation. Replace if necessary.
2. Check the impeller and insert cartridge
for cracks or wear. Replace if necessary.
3. Check the Woodruff key 1 and the key-
way a in the drive shaft for wear.
Replace if necessary.
4. Check the shift rod for cracks or wear.
Replace if necessary.
Disassembling the oil seal housing
1. Remove the oil seals using a flat head
screwdriver.
Assembling the oil seal housing
1. Apply grease to new oil seals, and then
install them into the oil seal housing.
69D60040
a
1
69D60035
Shift rod push arm:
90890-06052
69D60090
2
1
69D60120
a
Ball bearing attachment 1:
90890-06608
Driver rod L3 2: 90890-06652
Depth a:
3.5—4.5 mm (0.138—0.177 in)
69D5G11_06 06.10.16 18:09 Page 11
