 Installing the Main Unit

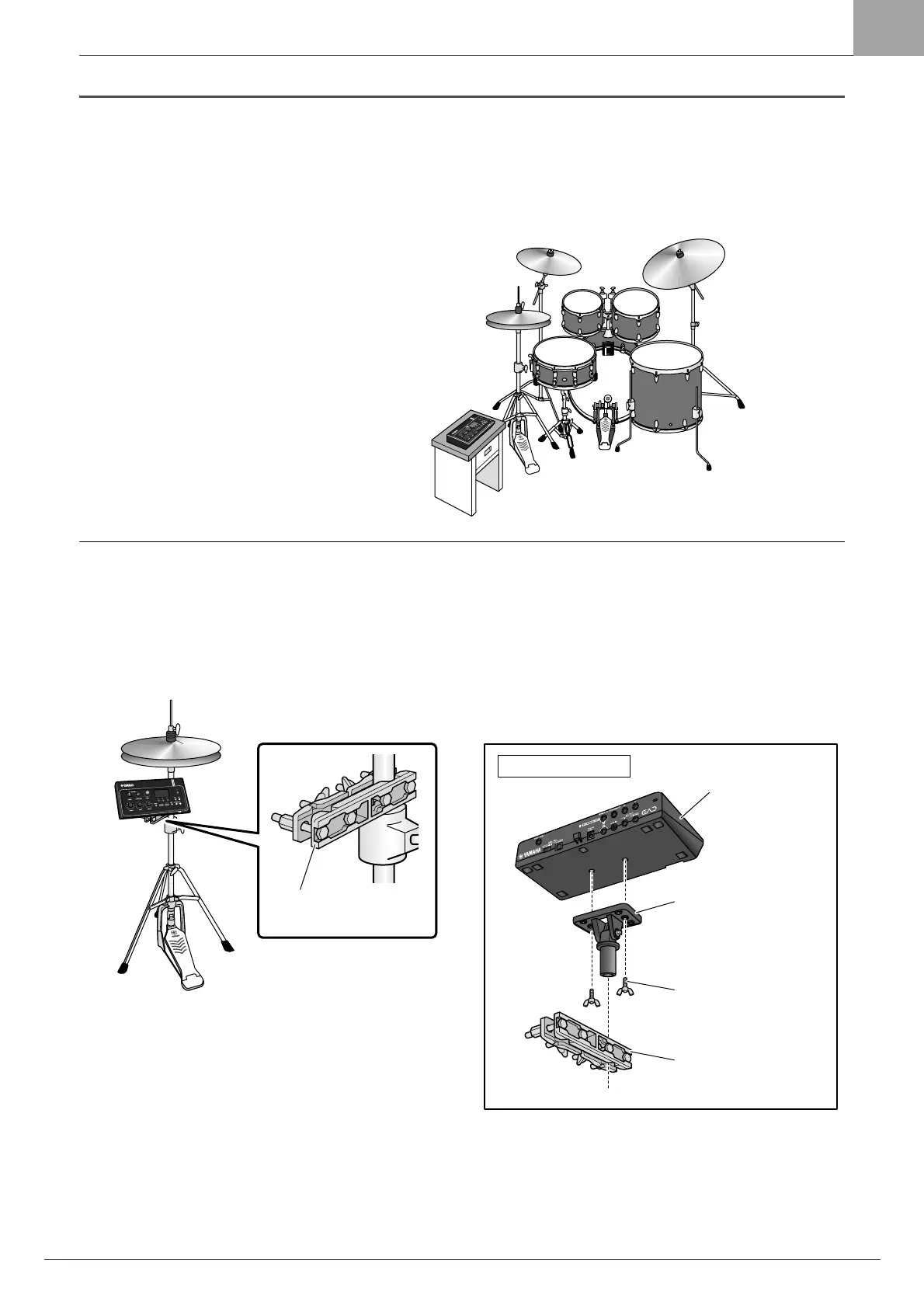

Either place the Main Unit on a table, or attach the Main Unit to a hi-hat stand.
 Placing on a Flat Surface
Place the Main Unit on a table or flat surface.
 Mounting on a Hi-Hat Stand
1.
Combine the included module holder with a separately sold cymbal stand attachment
(CSAT924A) and mount on the hi-hat stand.
Tighten the module holder wing nuts to securely fasten the Main Unit and module holder.
We recommend attaching the Main Unit to a position where it cannot be hit by your knees.
Cymbal Stand
Attachment
Exploded view
Main Unit
Module holder
Module holder wing
bolts
Cymbal Stand
Attachment
