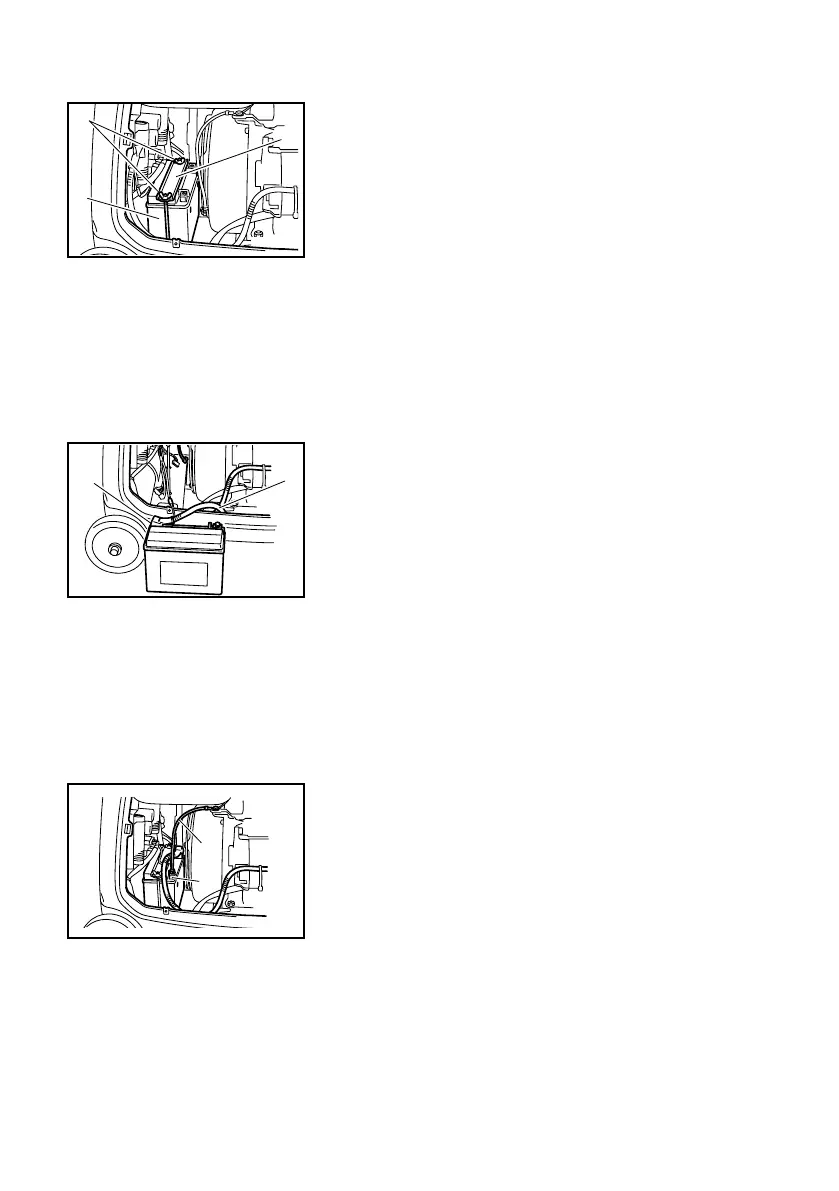

8. Connect the negative lead (black) to the negative
(–) battery terminal.
8 Negative lead (black)
9 Negative (–) battery terminal
9. Install the rear cover and tighten the screws.
9
762-7CKd
8
6
7
762-7XFc
5. Connect the positive lead (red) to the positive (+)
battery terminal.
6 Positive lead (red)
7 Positive (+) battery terminal
6. Install the battery onto the tray.
7. Install the battery plate and tighten the wing nuts.
2. Remove the wing nuts and battery plate.
3 Wing nuts
4 Battery plate
3. Remove the battery.
5 Battery
4. Fill the battery with the electrolyte.
Refer to the instruction sheet included with the
electrolyte for filling instructions.
3
5
4
762-7XFa
