– 23 –
2. Start the engine.
3. Plug in to AC receptacle.
TIP
To supply both 120V and 240V power sources from
the 4-blade plug receptacle needs special knowledge
of the wiring plug. Please contact a trained electrician
for the wiring of the plugs.
Connection
Alternating Current (AC)
Be sure any electric devices are turned off before
plugging them in.
9 Be sure all electric devices including the lines
and plug connections are in good condition
before connection to the generator.
9 Be sure the total load is within generator rated
output.
9 Be sure the receptacle load current is within
receptacle rated current.
9 Do not operate the voltage select switch while
the engine is running.
TIP
Make sure to ground (earth) the generator.
When the electric device is grounded, be sure to
ground the generator also.

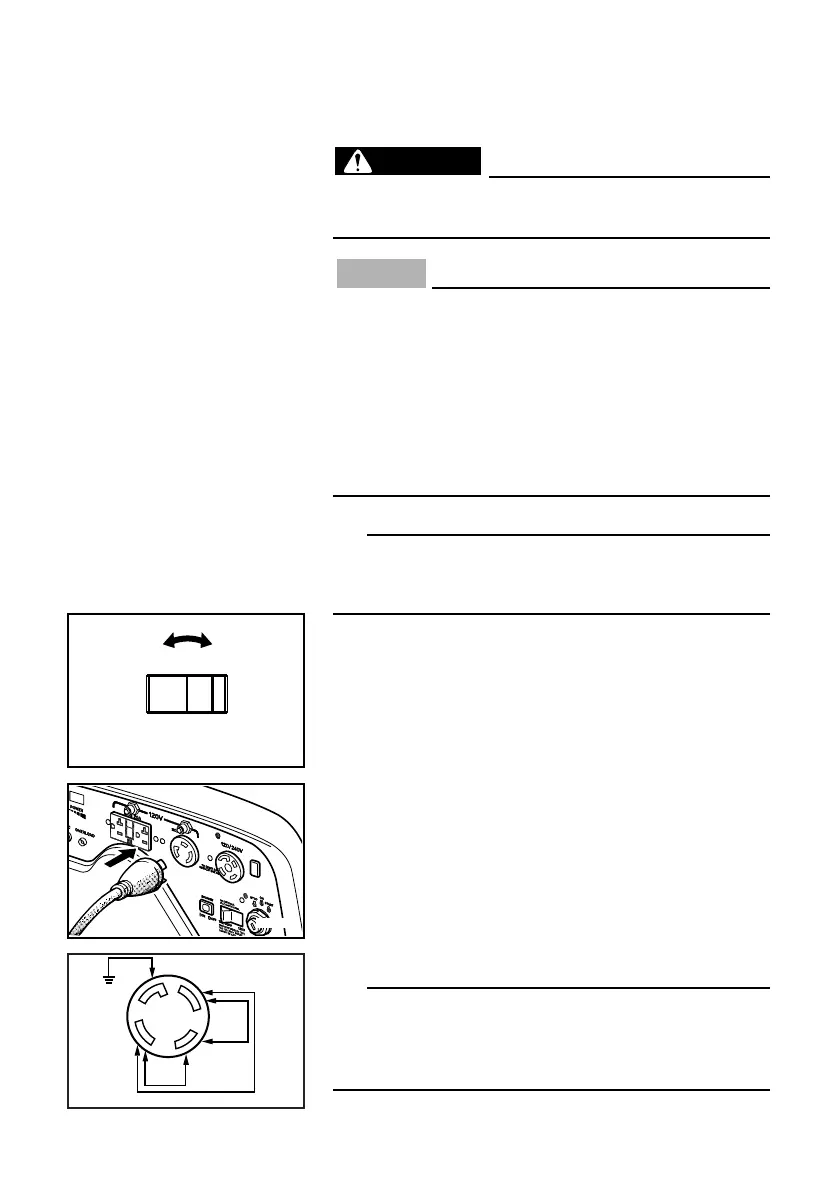

1. Select the voltage select switch position according
to the operating voltage of the electric device.
1 120/240V
2 120V
799-7CK
12
NO SWITCHING
DURING OPERATION.
WHEN SWITCHING TO 120V.
THE 120/240V OUTLET
CANNOT BE USED.
120/240V 120V
7CK-28199-12_a 11.3.21 13:17 Page 23
