Yamaha EF6600DE - Cleaning and Reassembly of Muffler Components; Muffler Screen and Spark Arrester Cleaning Procedure

– 32 –
711-029a
1
2
711-027a
7. Install the spark arrester.
TIP
Align the spark arrester lump to the hole in the muffler
pipe.
1 Spark arrester lump
2 Hole
8. Install the muffler screen and muffler cap.
9. Install the muffler cover by installing the muffler
cover bolts.
711-022
711-050

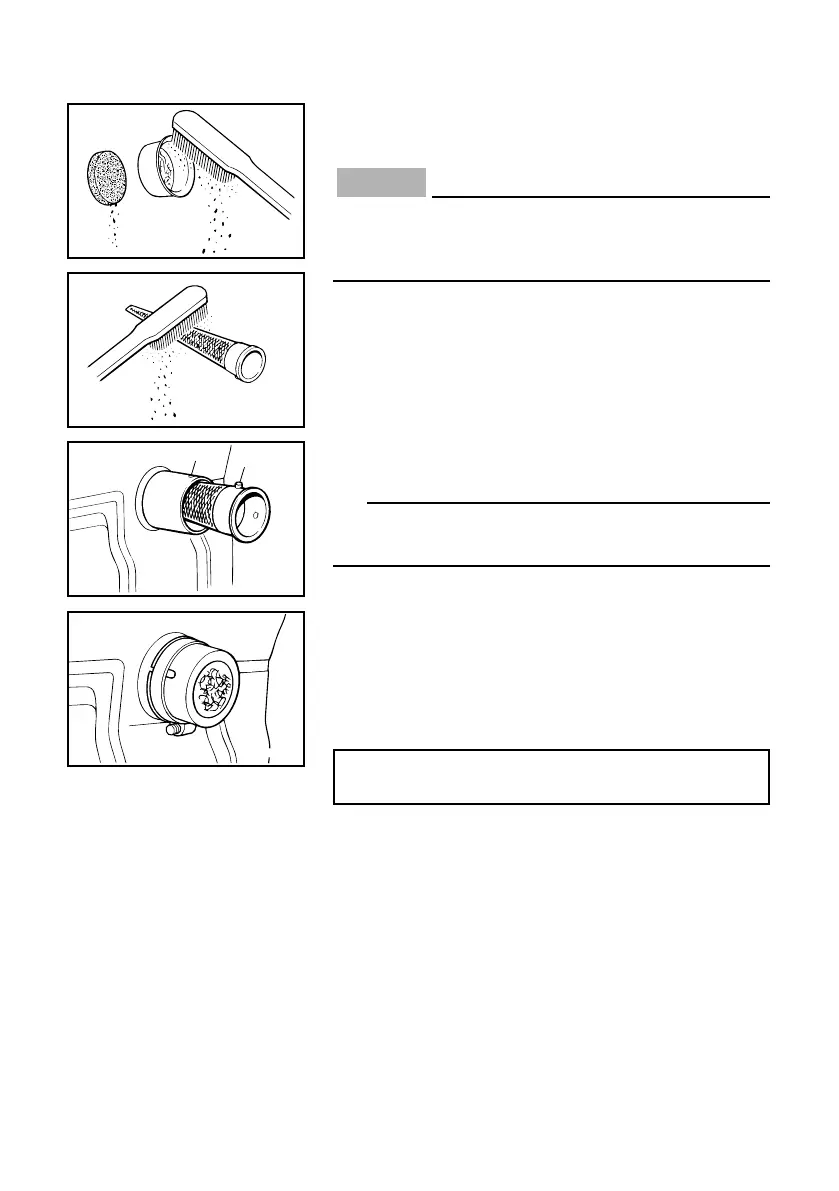

5. Remove the carbon deposits on the muffler
screen and spark arrester using a wire brush.
When cleaning, use the wire brush lightly to avoid
damaging or scratching of the muffler screen and
spark arrester.
6. Check the muffler screen and spark arrester.
Replace them if damaged.
NOTICE
Muffler cover bolt torque:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
