Yamaha EMX5016CF Owner's Manual

EMX5016CF Owner’s Manual
19
Reference

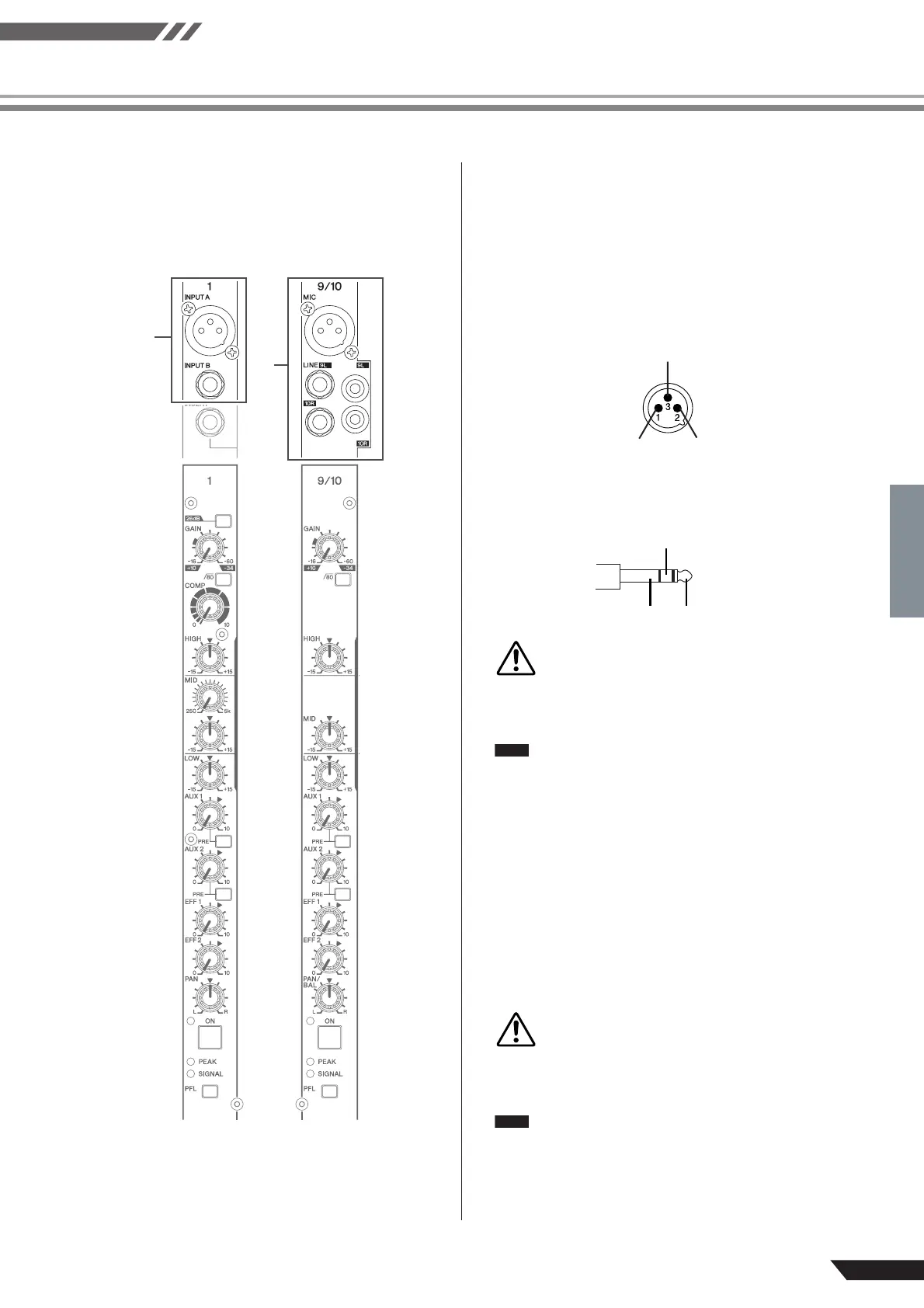

Front & Rear Panels
Controls on Each Channel
1 INPUT A and INPUT B Jacks (Channels 1
to 8)
You can connect an input source to either jack. Be sure
to set the [26 dB] switch 4 to match the type of device
you are connecting.
INPUT A: A balanced XLR-type microphone input
jack (1:Ground; 2:Hot; 3:Cold).
If you are connecting a condenser micro-
phone, be sure to turn the PHANTOM
switch c to its ON position.
INPUT B: A TRS phone-type balanced line input
jack (T: hot, R: cold, S: ground). Accepts
both balanced and unbalanced line input.
When using phantom power, do not connect any
devices other than condenser microphones to the
XLR input jacks. Other devices may be damaged if
connected to phantom power. This precaution does
not apply to balanced dynamic microphones, how-
ever, as these will not be affected by phantom power.
On any given channel, you may use either INPUT A
or INPUT B, but not both. Please connect to only
either of these jacks on each channel.
2 LINE/MIC Jacks (Channels 9/10 to 15/16)
These jacks accept stereo inputs and mic inputs. Use
these to connect up stereo output devices, such as ste-
reo synthesizers and CD players, and microphones.
LINE jacks: Unbalanced stereo inputs. Each channel
pair have phone jacks and RCA pin
jacks.
MIC jack: XLR balanced mic-level input jack. If
you are connecting a condenser micro-
phone, be sure to turn the PHANTOM
switch c to its ON position.
When using phantom power, do not connect any
devices other than condenser microphones to the
XLR input jacks. Other devices may be damaged if
connected to phantom power. This precaution does
not apply to balanced dynamic microphones, how-
ever, as these will not be affected by phantom power.
If you wish, you may use the channel pair’s LINE and
MIC jacks together at the same time. But note that the
levels cannot be adjusted independently.
1
2
Channels
9/10 to 15/16
(Stereo)
Channels
1 to 8
(Monaural)
Cold (–)
Ground Hot (+)
R: Cold (–)
S: Ground T: Hot (+)
CAUTION
NOTE
CAUTION
NOTE
Reference

Yamaha EMX5016CF Specifications

General

Channels quantity	16 channels
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	500 W
DJ mixer	-
Product color	Black
Video capability	No
Equalizer bands quantity	9
Total Harmonic Distortion (THD)	0.3 %

Weight and Dimensions

Depth	493 mm
Width	444 mm
Height	155 mm
Weight	11000 g
