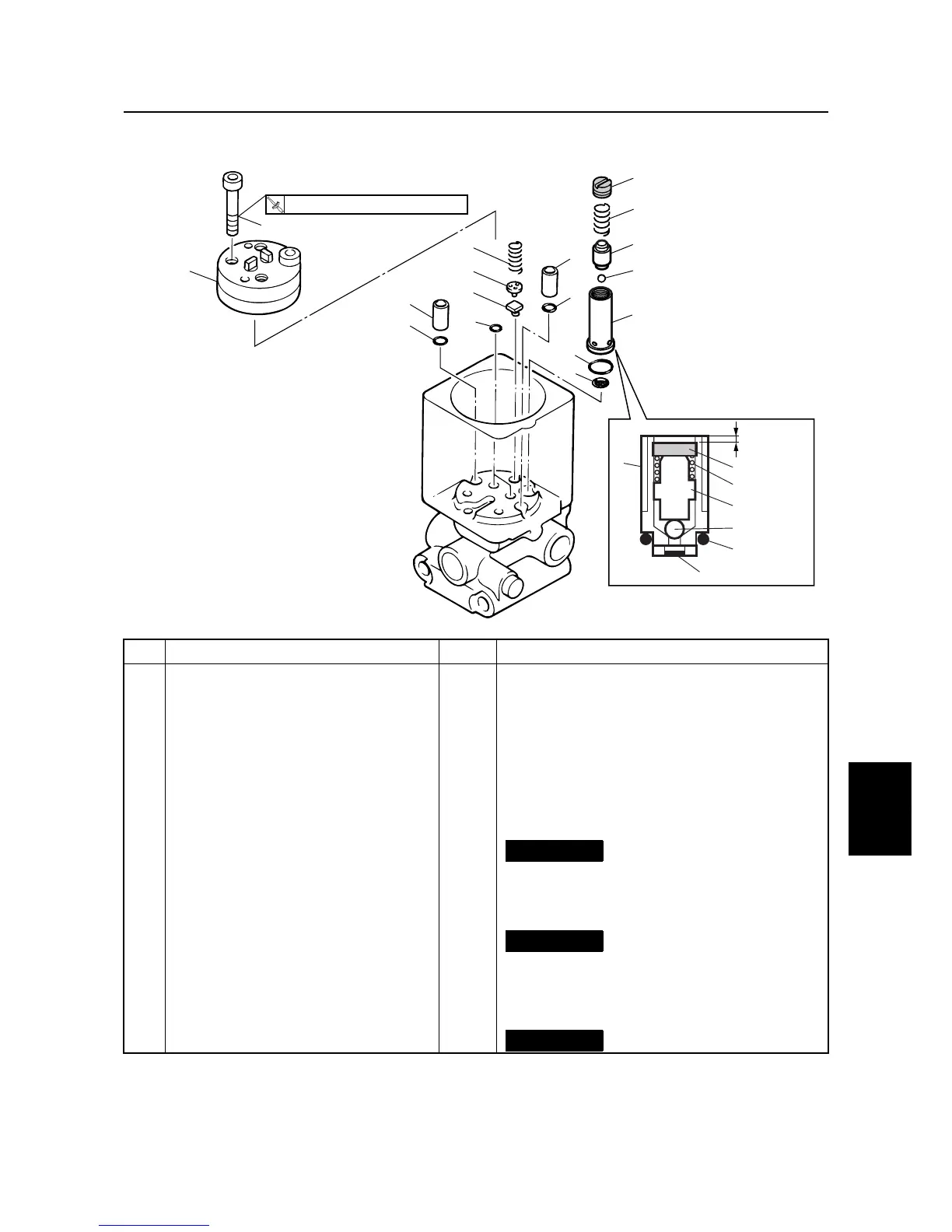

Gear pump (F100C)
7
No. Part name Q’ty Remarks
1 Gear pump 1
2Bolt 3 M6
×
35 mm
3Cap 1
4 Down-relief spring 1
5 Absorber valve pin 1
6Ball 1
7 Relief valve seat 1
8 O-ring 1
Not reusable
1.5
×
13.7 mm
9Filter 1
10 Filter 2
11 O-ring 2
Not reusable
12 Down-relief spring 1
13 Valve support pin 1
14 Relief valve seal 1
15 O-ring 2
Not reusable
S60C7735
10
11
15
12
13
14
10
11
7
8
9
3
4
5
8
3
4
5
6
2.2 mm
(0.087 in)
7
6
9
2
1
T
R
.
.
8 N
•
m (0.8 kgf
•
m, 5.8 ft
•
Ib)
Tilt cylinder and trim cylinder (F100C) / Gear pump (F100C)
