Yamaha F100DET Service Manual

6D93G11
7-18
1
2
3
4
5
6
7
8
9

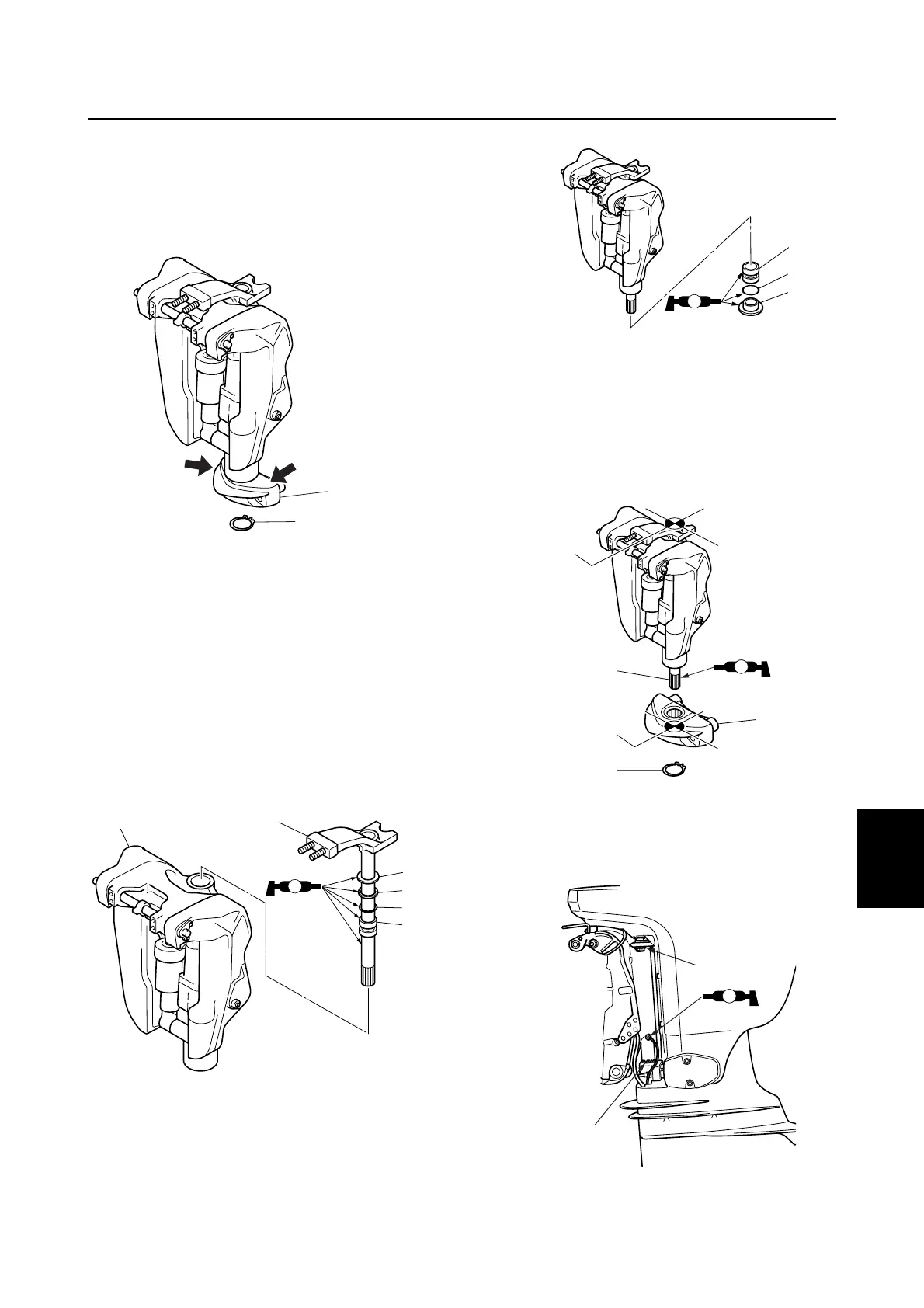

Removing the steering arm
1. Remove the circlip
1
.
2. Remove the steering yoke
2
by striking
it with a plastic hammer.
3. Remove the steering arm from the swivel
bracket by pulling the arm off the bracket.
Installing the steering arm
1. Install the washer
1
, bushing
2
, O-ring
3
, and bushing
4
onto the steering arm
5
.
2. Place the swivel bracket
6
in an upright
position, and then install the steering arm
onto the swivel bracket.
3. Install the bushing
7
, O-ring
8
, and
washer
9
onto the swivel bracket.
4. Install the steering yoke
0
to the steer-
ing arm
5
by aligning the center
a
of
the yoke with the center
b
of the steer-
ing arm.
5. Install the circlip
A
.
6. Inject grease into the grease nipple until
grease comes out from both the upper
and lower bushings
c
.
S6D87230
2
1
S6D87240
6
5
1
2
3
4
AA
S6D87250
AA
9
8
7
S6D87260
A
5
0
A
a
b
S60C7255
AA
c
c
Steering arm

Yamaha F100DET Specifications

General

Max Output	100 hp
Starting System	Electric
Lubrication System	Wet Sump
Cooling System	Water-Cooled
Full Throttle RPM Range	5000-6000 RPM
Steering	Remote
Fuel Tank Capacity	External
Cylinder Configuration	In-Line
Fuel Induction System	Electronic Fuel Injection (EFI)
Ignition System	TCI (Transistor Controlled Ignition)
Recommended Fuel	Regular unleaded gasoline (min 87 octane)
Shaft Length	L (20")
Engine Type	4-Stroke, DOHC, 16-Valve In-Line Four
Recommended Engine Oil	Yamalube 4M (10W-30 or 20W-40)
