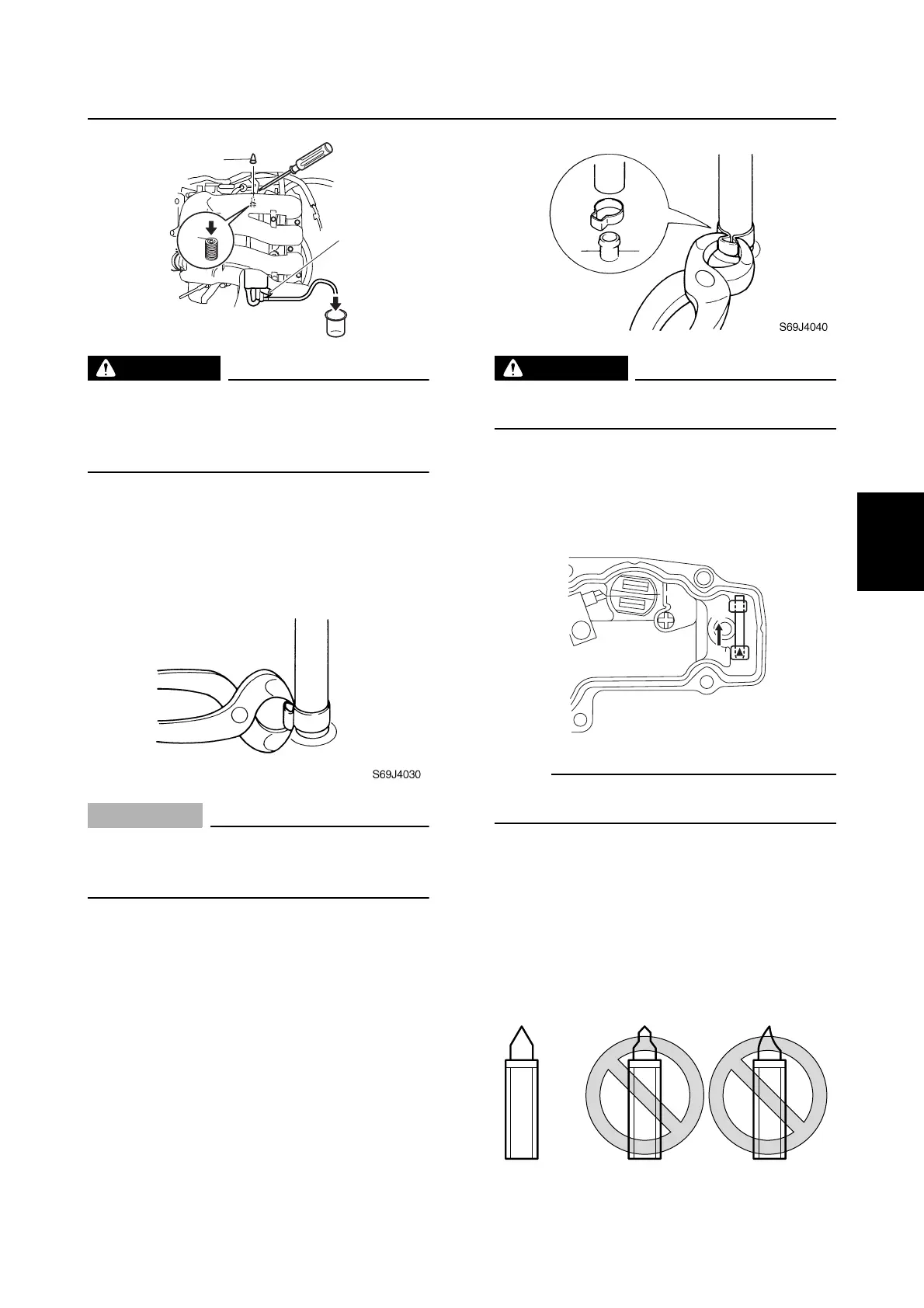

Yamaha F100DET - Checking the Vapor Separator; Disassembling the Vapor Separator; Installing the Fuel Hose Clamp; Removing the Fuel Hose Clamp

6D93G11
4-16
1
2
3
4
5
6
7
8
9
WARNING
Reduce the fuel pressure before loosen-
ing the vapor separator drain screw, or
pressurized fuel will spray out and may
result in serious injury.
Removing the fuel hose clamp
1. Remove the fuel hose clamp by cutting
the crimped section of the clamp.
CAUTION:
If the fuel hose clamp is removed without
cutting the crimp first, the fuel hose will
be damaged.
Installing the fuel hose clamp
1. Crimp the fuel hose clamp properly to
securely fasten it.
WARNING
Do not reuse the fuel hose clamp, always
replace it with a new one.
Disassembling the vapor separator
1. Remove the float chamber, float pin, and
float.
NOTE:
Remove the float pin in the direction of the
arrow
a
shown.
2. Remove the needle valve and other com-
ponents.
Checking the vapor separator
1. Check the needle valve for bends or
wear. Replace if necessary.
S6D84100
a
1
2
S6C14220
a
S6D54200
Vapor separator
