Yamaha F20A - WARNING INDICATOR(S); TILT LOCK MECHANISM

2-13
GB
EMU01128

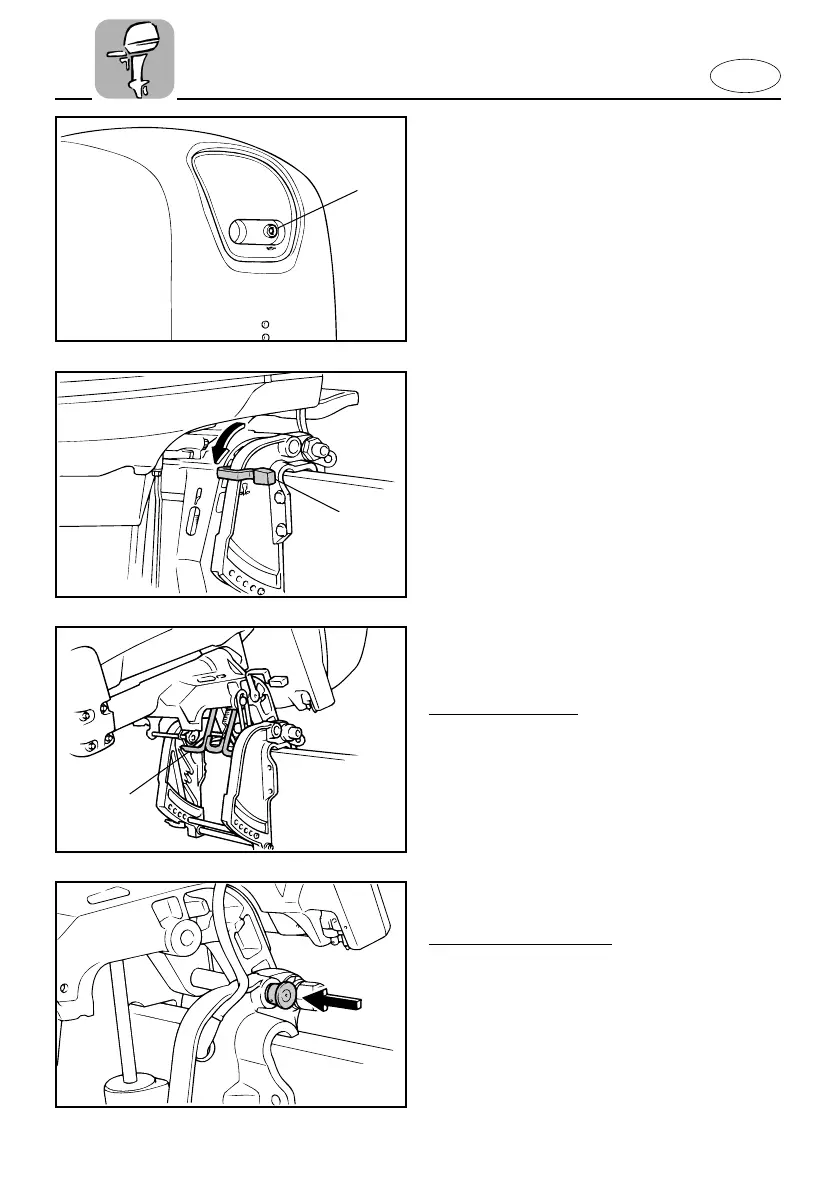

WARNING INDICATOR(S)
If the engine develops a condition moni-
tored by the warning system, an indicator
will come on.
Refer to the “WARNING SYSTEM” sec-
tion for details.
1 Warning indicator(s)
EMU00153
TILT LOCK MECHANISM
(for Manual tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position.
To release it, place the tilt-lock lever in the
Tilt position.
1 Tilt-lock lever
402073
q
223012
q
EMU00156
TILT SUPPORT BAR
Manual tilt model
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
403052
q
EMU00155
TILT SUPPORT KNOB
Power trim/tilt model
To keep the outboard motor in the tilted-
up position, push the tilt support knob
under the swivel bracket.
