OIL COOLER
6-4
EAS26410

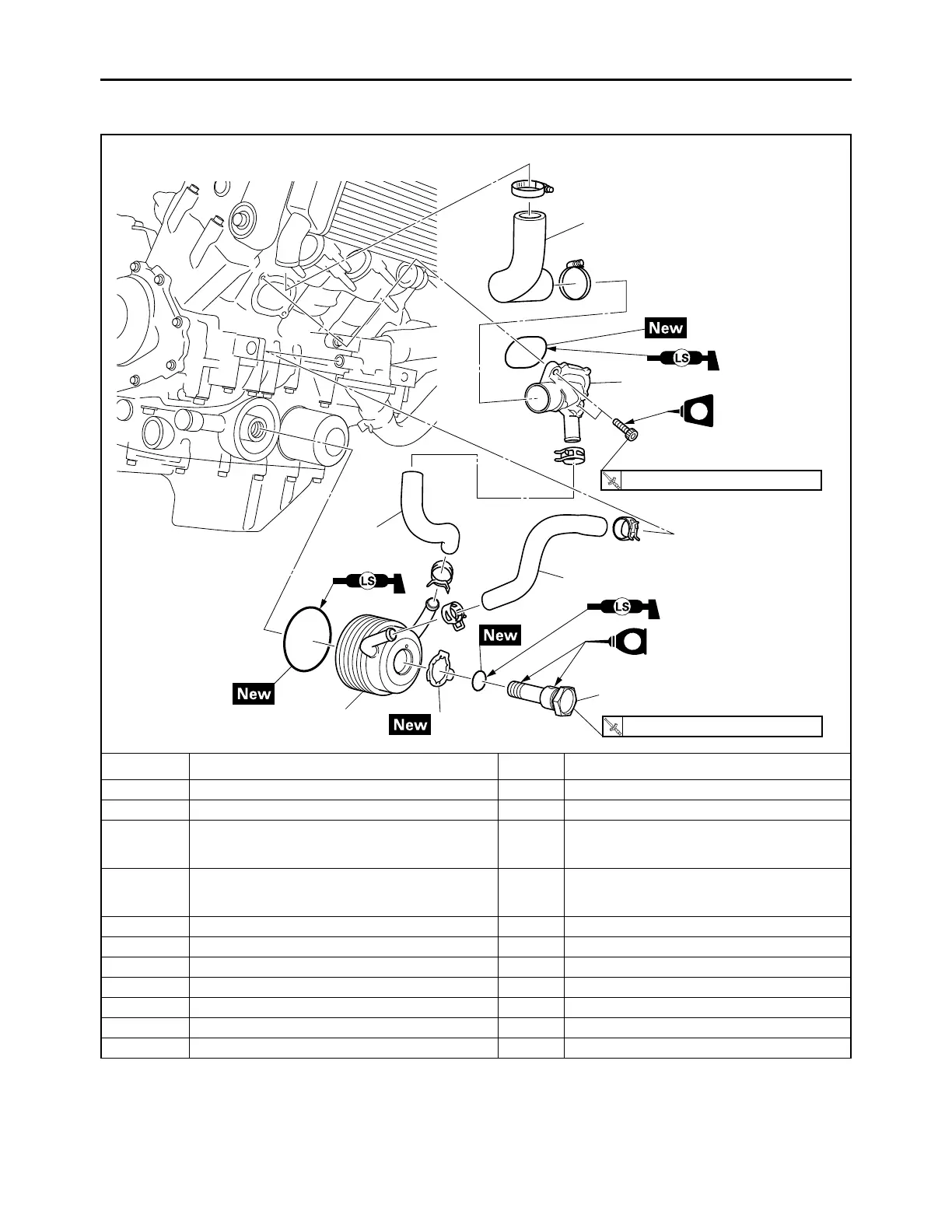

OIL COOLER
Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Coolant reservoir Refer to “RADIATOR” on page 6-1.
Muffler assembly Refer to “ENGINE REMOVAL” on page 5-3.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-26.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-23.
1 Radiator inlet hose 1
2 Oil cooler inlet hose 1
3 Oil cooler outlet hose 1
4 Oil cooler union bolt 1
5 Washer 1
6 Oil cooler 1
7 Water jacket joint 1
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
E
35 Nm (3.5 m
•
kgf, 25 ft
•
Ibf)
LT
1
2
3
4
5
6
7
To Next Page
