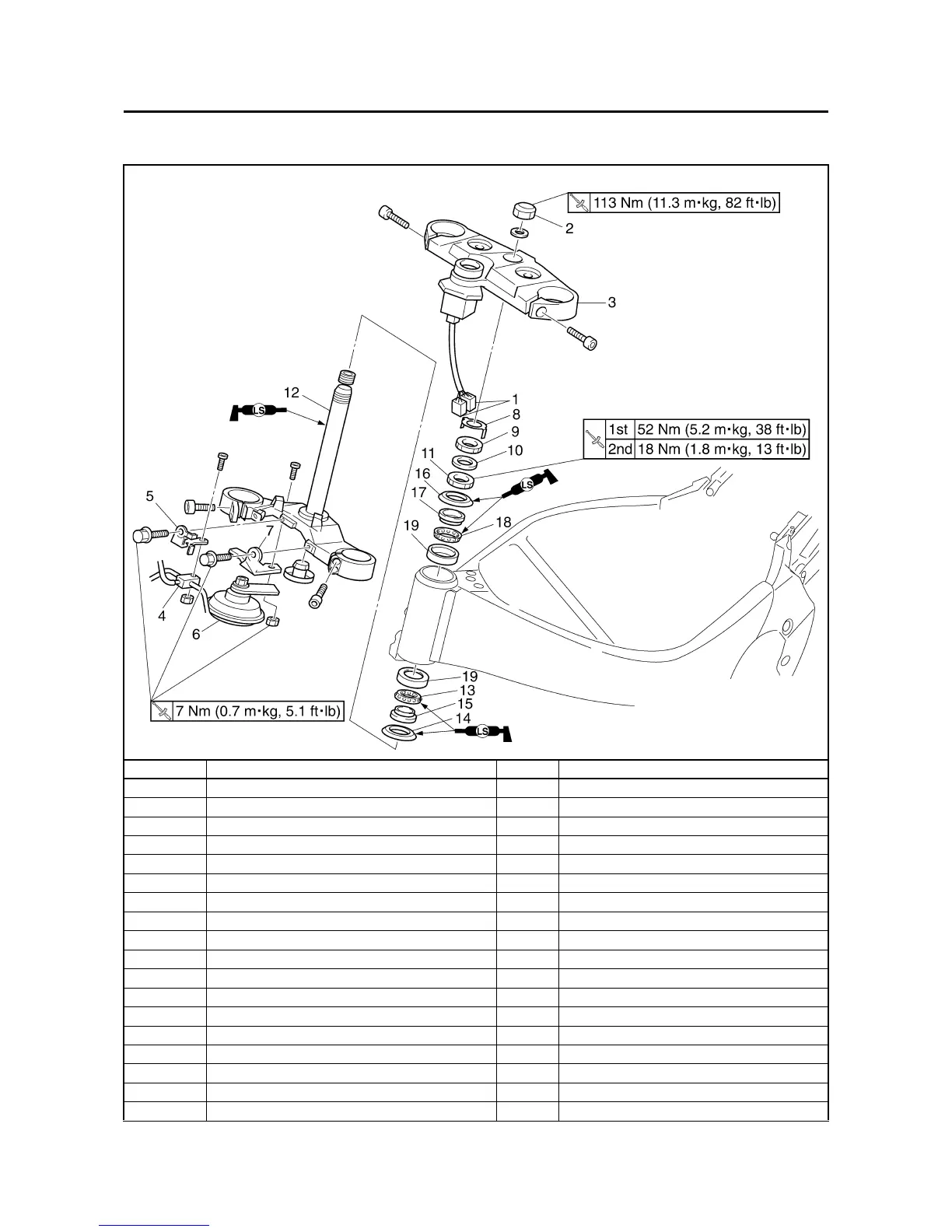

STEERING HEAD
4-69
EAS23090
STEERING HEAD
Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Front wheel Refer to "FRONT WHEEL" on page 4-8.
Front brake calipers Refer to "FRONT BRAKE" on page 4-25.
Front cowling (FZ1-S(W)/FZ1-SA) Refer to "GENERAL CHASSIS" on page 4-1.
Headlight and meter assembly (FZ1-N(W)) Refer to "GENERAL CHASSIS" on page 4-1.
Handlebar Refer to "HANDLEBAR" on page 4-56.
Front fork legs Refer to "FRONT FORK" on page 4-60.
1 Main switch connector 2 Disconnect.
2 Steering stem nut 1
3 Upper bracket 1
4 Front brake hose joint 1
5 Front brake hose joint bracket 1
6Horn 1
7 Horn bracket 1
8 Lock washer 1
9 Upper ring nut 1
10 Rubber washer 1
11 Lower ring nut 1
12 Lower bracket 1
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha FZ1-N 2007 and is the answer not in the manual?

Yamaha FZ1-N 2007 Specifications

General IconGeneral
Bore x Stroke77.0 mm x 53.6 mm
Compression Ratio11.5:1
Fuel SystemFuel Injection
IgnitionTCI
Transmission6-speed
Front Tire120/70 ZR17
Fuel Tank Capacity18 L
Seat Height815 mm
Final DriveChain
Maximum Torque106 Nm @ 8, 000 rpm
StarterElectric
Length2, 140 mm
Width770 mm
Height1, 060 mm
Wheelbase1, 460 mm
Ground Clearance135 mm
Front SuspensionTelescopic fork
Rear SuspensionSwingarm
Front BrakesDual 320mm discs
Rear Brakes245 mm disc
Rear Tire190/50 ZR17
Maximum Power150 hp @ 11, 000 rpm
FrameAluminum Deltabox
Engine Type4-stroke, liquid-cooled, DOHC, 20-valve, inline-four
