ADJUSTING THE CLUTCH CABLE FREE PLAY/
CLEANING THE AIR FILTER ELEMENT
CHK
ADJ
CAUTION:
4. Install:
S air filter case
Refer to “AIR FILTER CASE”.
S fuel tank
Refer to “FUEL TANK”.
S front cowling inner panel (left and right)
Refer to “COWLINGS”.
S seat
Refer to “SEAT”.
EAS00086
CLEANING THE AIR FILTER ELEMENT
1. Remove:
S rider seat
Refer to “SEAT”.
S front cowling inner panel (left and right)
Refer to “COWLINGS”.
S fuel tank
Refer to “FUEL TANK”.

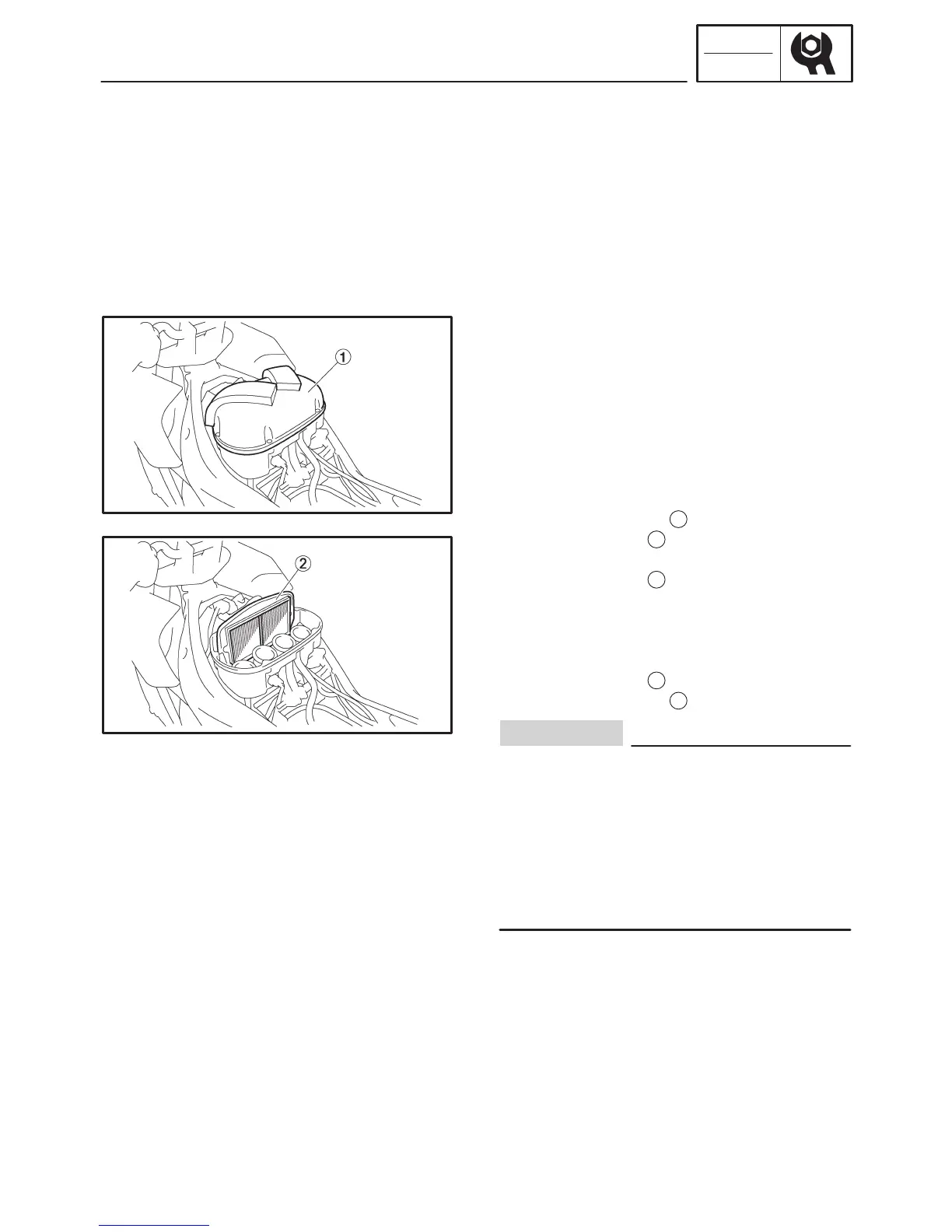

2. Remove:
S air filter case cover
1
S air filter element
2
3. Clean:
S air filter element
2
4. Check:
S air filter element
Damage ! Replace.
5. Install:
S air filter element
2
S air filter case cover
1
Never operate the engine without the air fil-
ter element installed. Unfiltered air will
cause rapid wear of engine parts and may
damage the engine. Operating the engine
without the air filter element will also affect
the throttle bodies tuning, leading to poor
engine performance and possible overheat-
ing.
