3-4
FUEL TANK
CHK
ADJ
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7

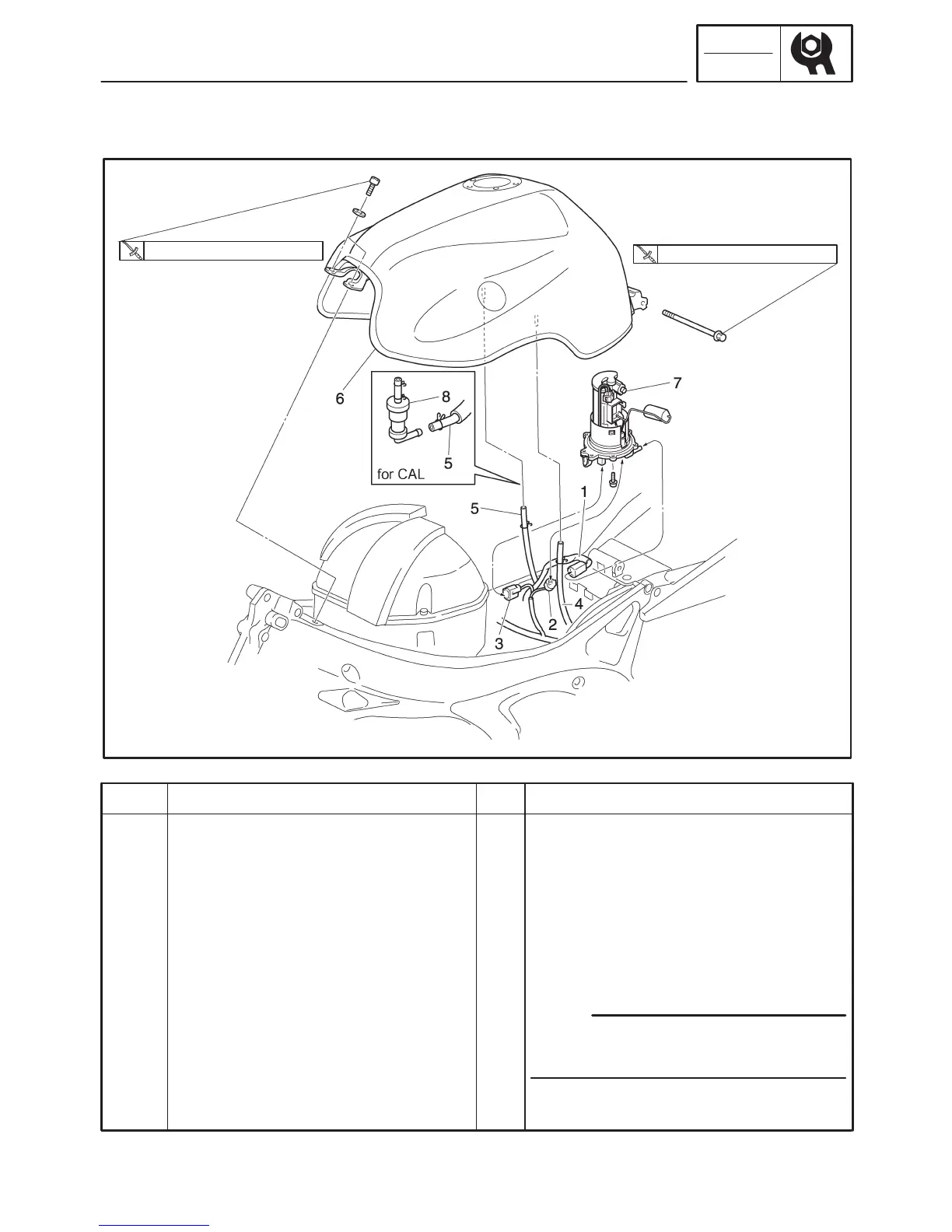

Removing the fuel tank
Seat
Front cowling inner panel (left and
right)
Fuel hose
Fuel sender coupler
Fuel pump coupler
Fuel tank drain hose
Fuel tank breather hose (except for CAL)
Canister hose (for CAL)
Fuel tank
Fuel pump
1
1
1
1
1
1
1
Remove the parts in the order listed.
Disconnect.
Refer to “SEAT”.
Refer to “COWLINGS”.
There is a white paint mark on the fuel tank
breather hose.
7 Nm (0.7 mSkg, 5.1 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
NOTE:
EAS00040
FUEL TANK
To Next Page
