Yamaha FZ6-SS - Crankshaft Position Sensor and Pickup Rotor

5-42
Order Job/Part Q’ty Remarks
1
2
3
4

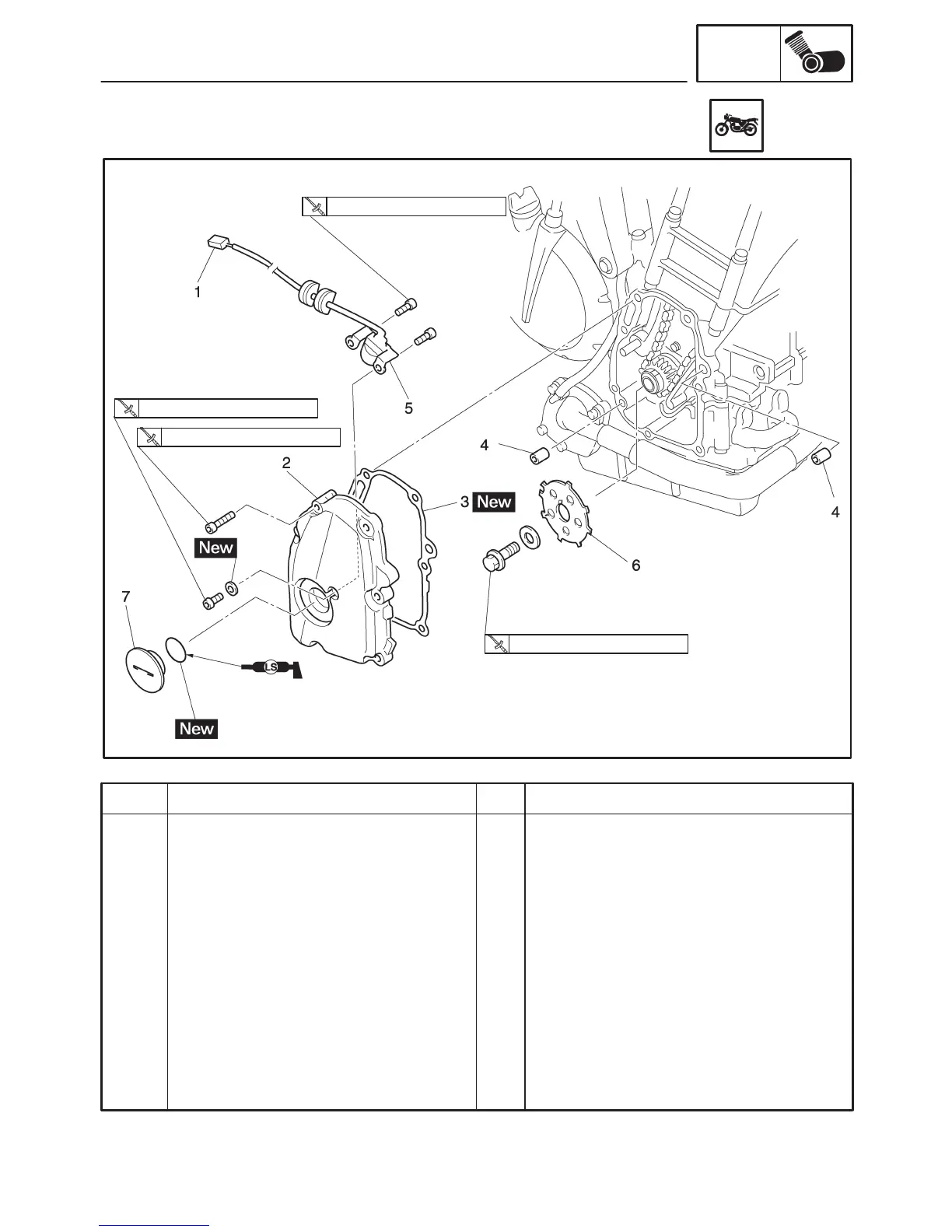

Removing the crankshaft position
sensor and pickup rotor
Seat
Front cowling inner panel (left and right)
Fuel tank
Engine oil
Generator cover
Crankshaft position sensor lead coupler
Pickup rotor cover
Pickup rotor cover gasket
Dowel pin
1
1
1
2
Remove the parts in the order listed.
Refer to “SEAT” in chapter 3.
Refer to “COWLINGS” in chapter 3.
Refer to “FUEL TANK” in chapter 3.
Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3.
Refer to “STARTER CLUTCH AND
GENERATOR”.
Disconnect.
10 Nm (1.0 mSkg, 7.2 ftSlb)
15 Nm (1.5 mSkg, 11 ftSlb)
35 Nm (3.5 mSkg, 25 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
CRANKSHAFT POSITION SENSOR AND PICKUP ROTOR
ENG
CRANKSHAFT POSITION SENSOR AND PICKUP ROTOR
